DTC 41

Circuit Description
- If a malfunction occurs in the airbag system, malfunction codes 11 to 31 may be output, and when the battery is disconnected after the malfunction is repaired, malfunction codes 11 to 31 will be cleared, but code 41 will be output instead.
- So long as the cancellation operation for a malfunction stored in memory is not performed,

Clearing Diagnostic Trouble Codes

code 41 is stored in the center airbag sensor assembly and the airbag warning light remains lit up.

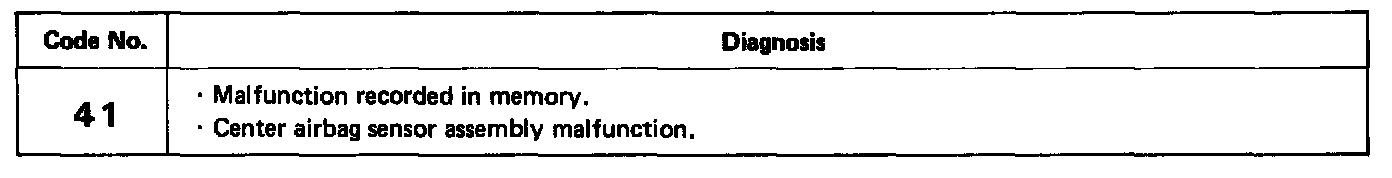

Diagnosis:

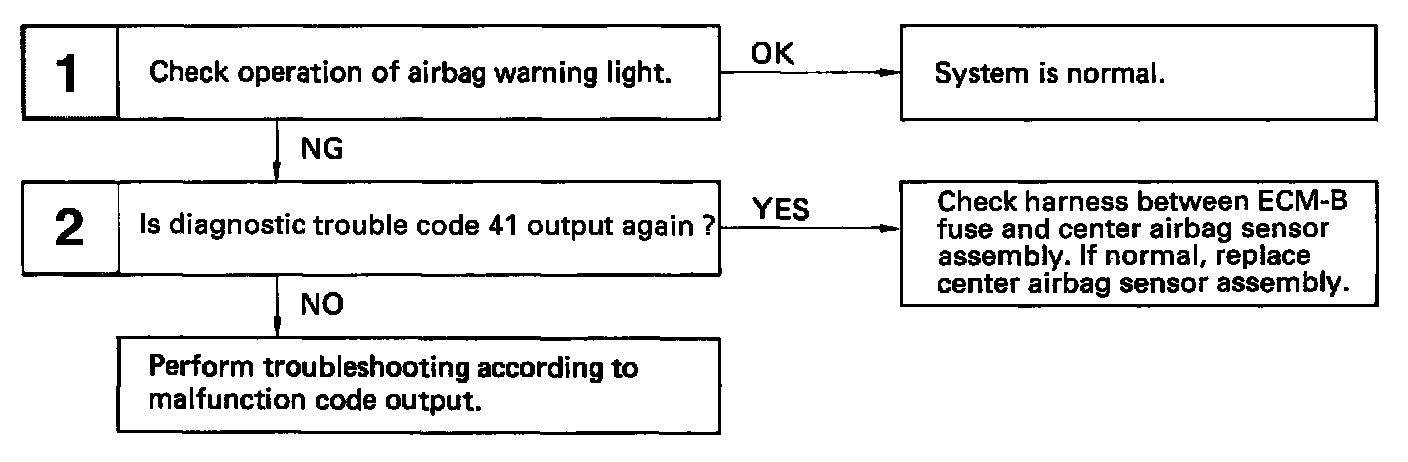

Diagnostic Chart:

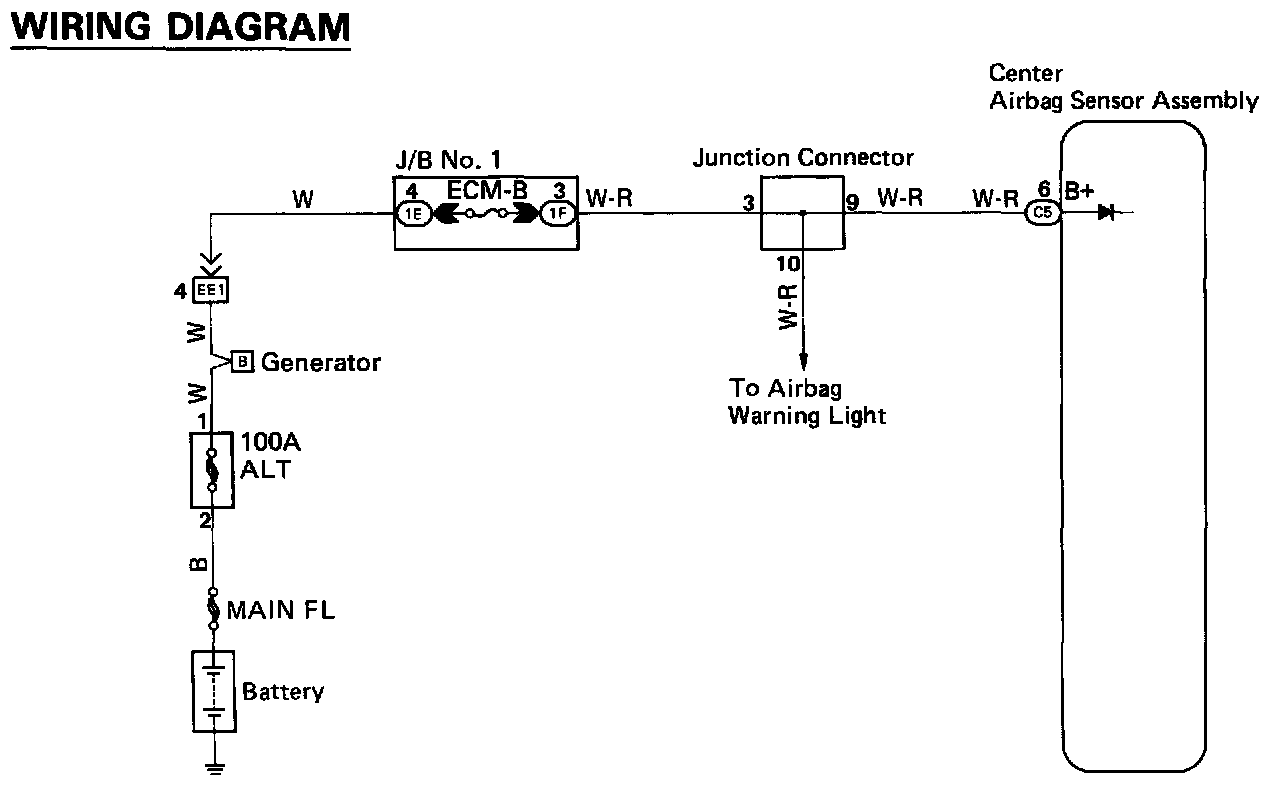

Wiring Diagram:

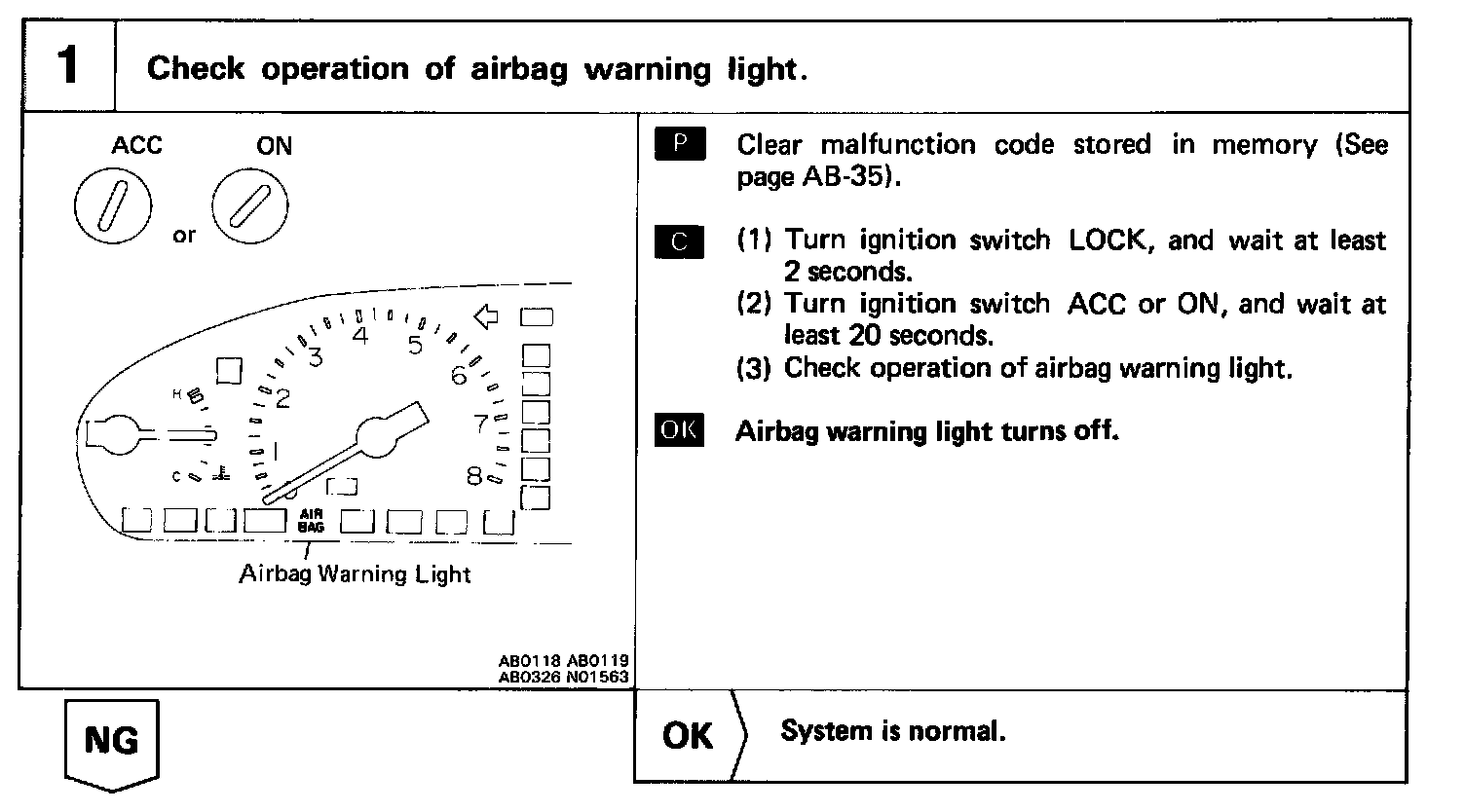

Step 1:

Step 2:
