DTC 31

Circuit Description
- The center airbag sensor assembly consists of a center airbag sensor, safing sensors, ignition control and drive circuit, diagnosis circuit, etc.
- It receives signals from the airbag sensors, judges whether or not the airbag must be activated, and diagnoses system malfunction.
- Diagnostic trouble code 31 is recorded when occurrence of a malfunction in the center airbag sensor assembly is detected.

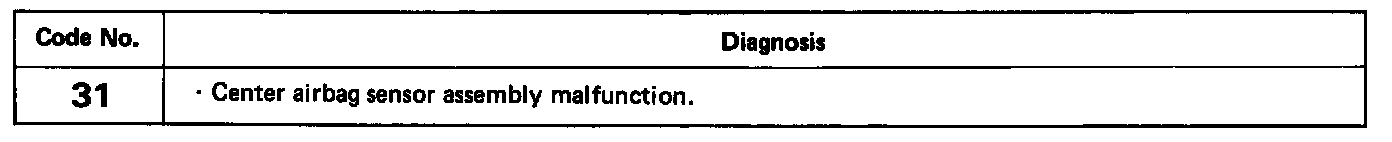

Diagnosis:

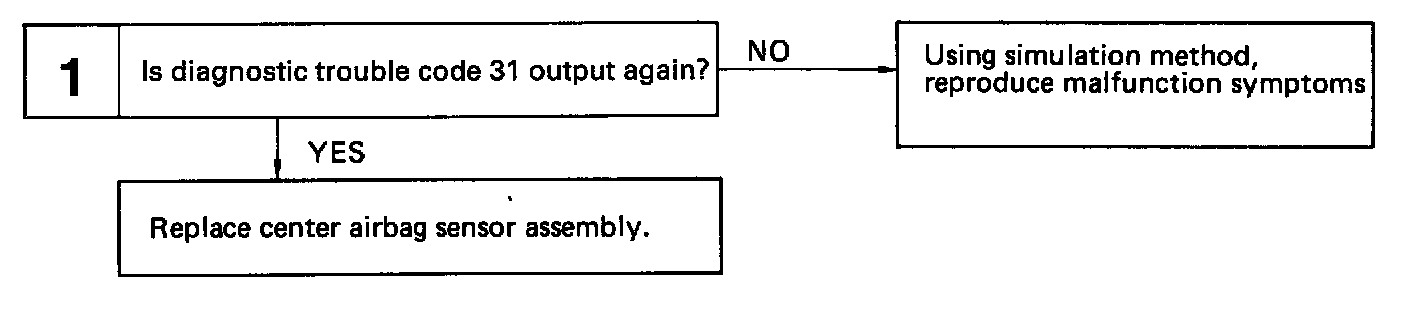

Diagnostic Chart:

HINT: When a malfunction code other than code 31 is displayed at the same time, first repair the malfunction indicated by the malfunction code other than code 31.

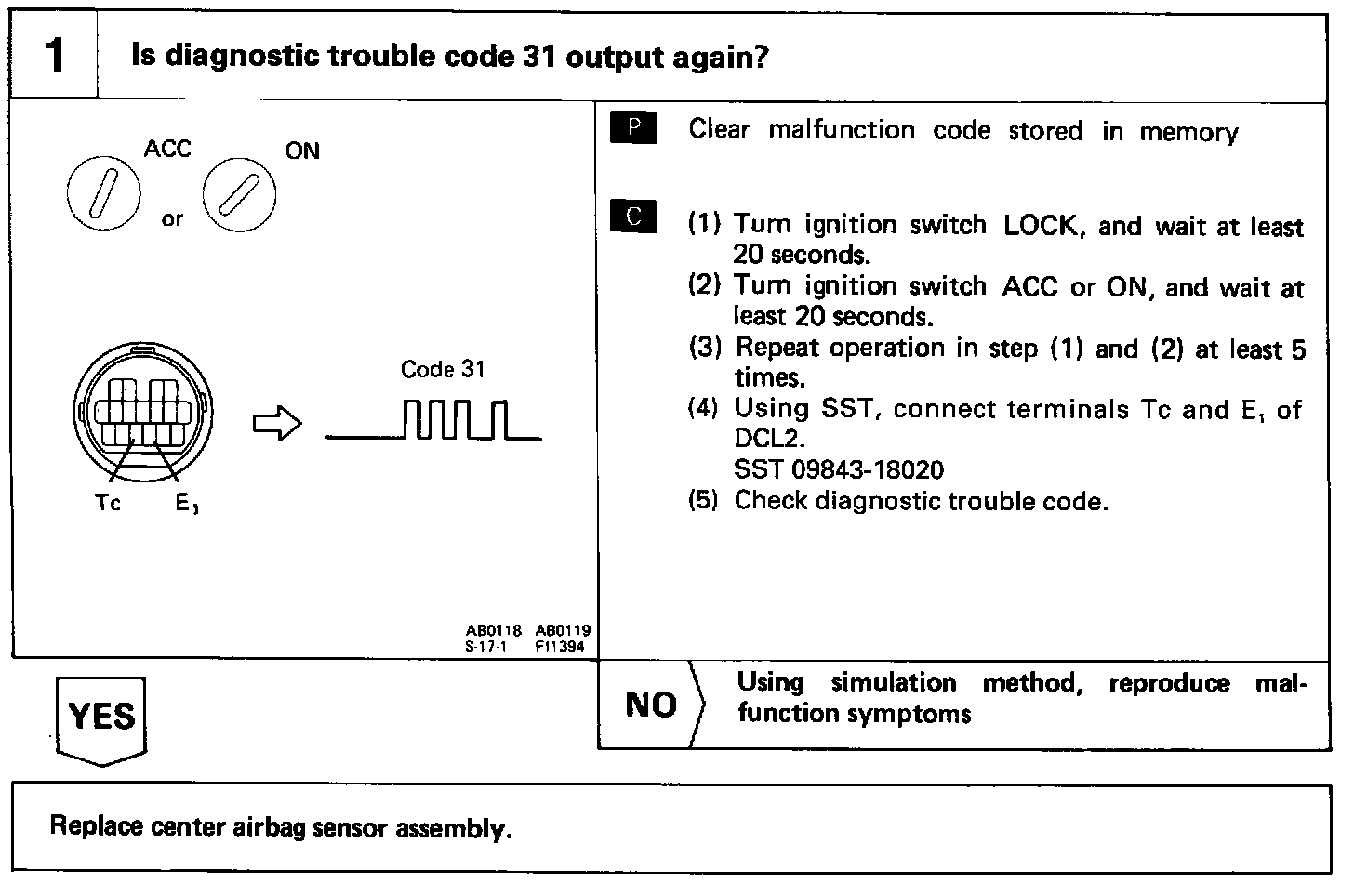

Inspection Procedure:

HINT: When a malfunction code other than code 31 is displayed at the same time, first repair the malfunction indicated by the malfunction code other than code 31.
