DTC 41

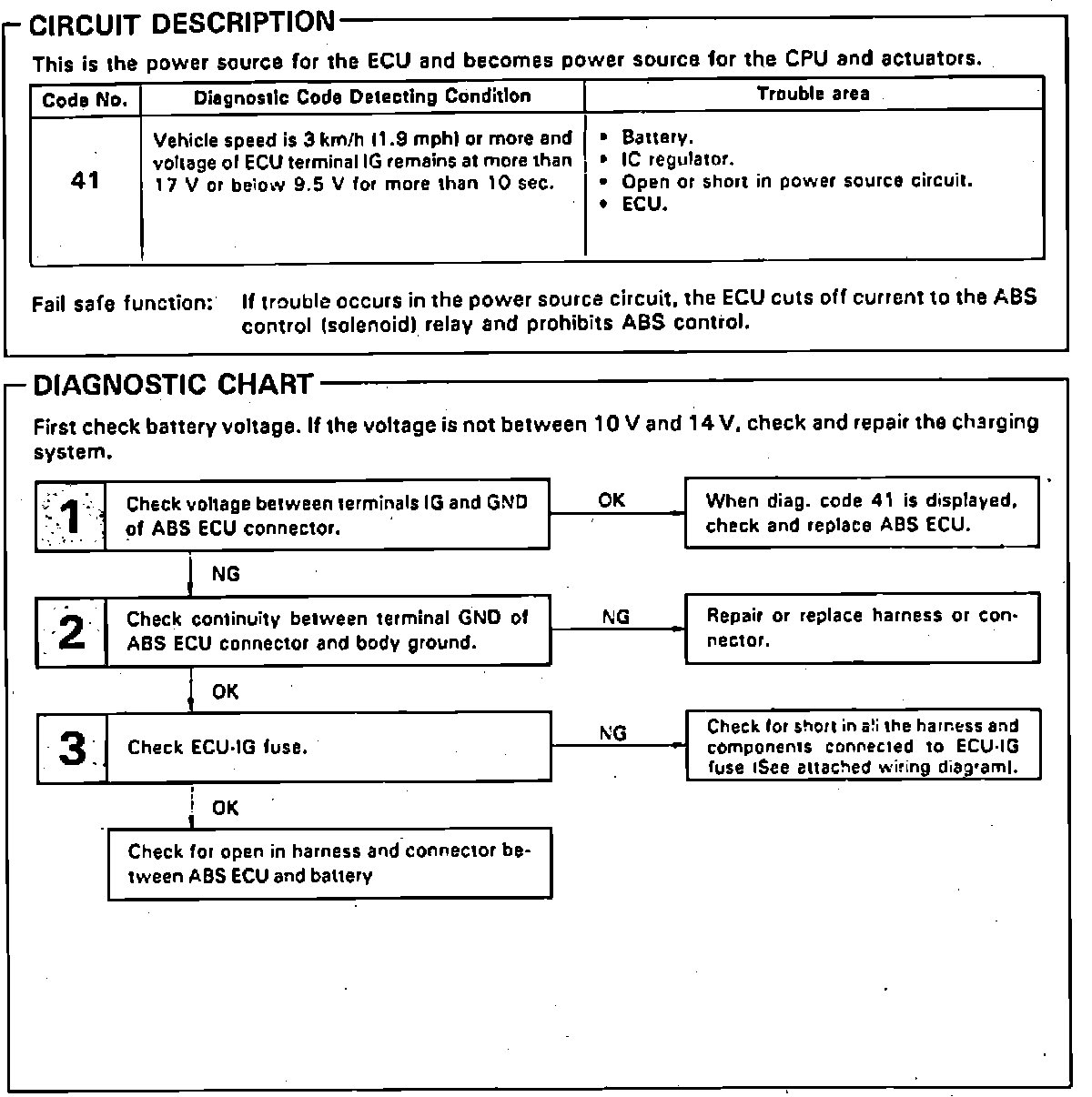

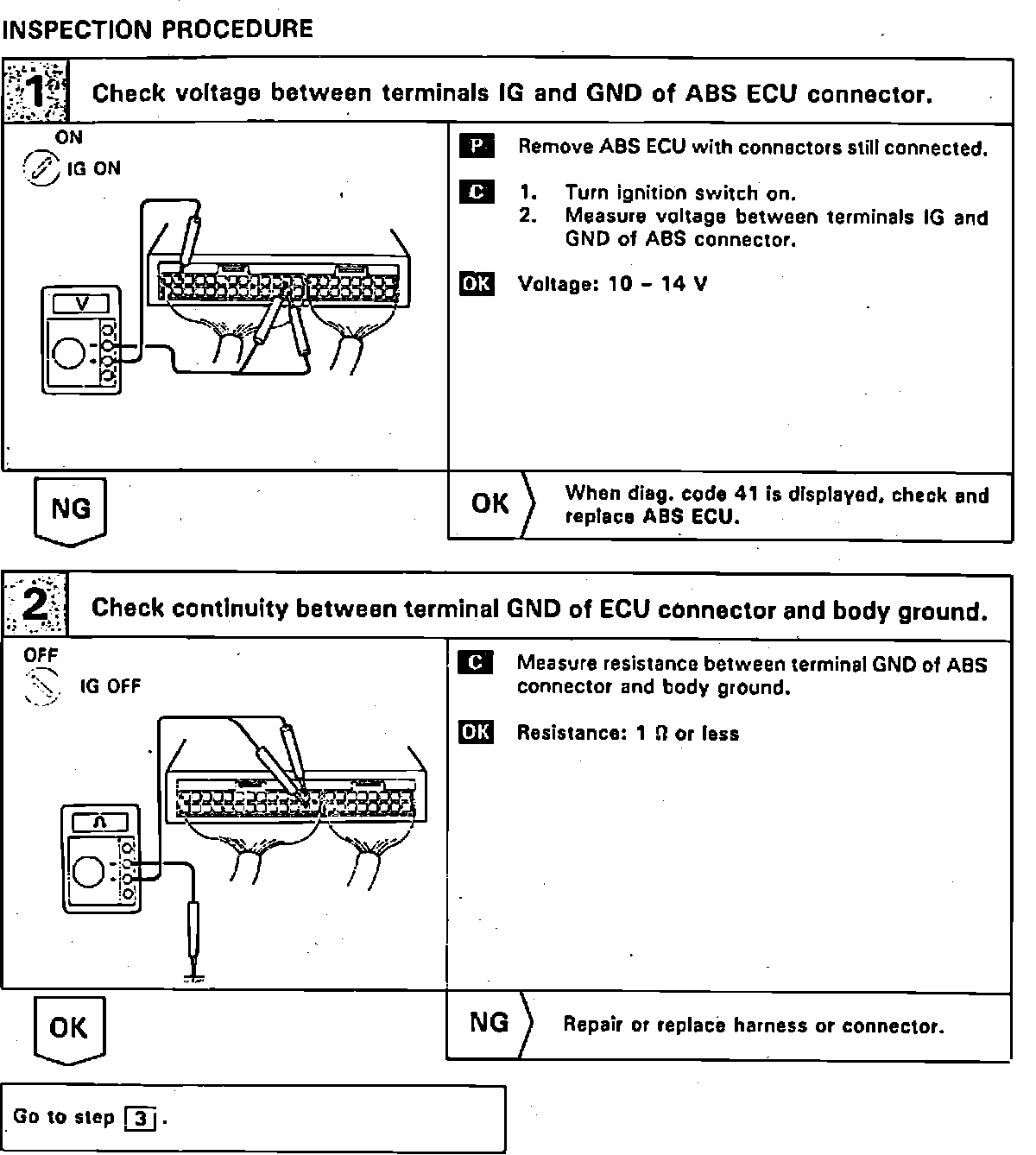

Fig. 54 Diagnostic (Trouble) Code 41, IG Power Source Circuit (Part 1 Of 4).:

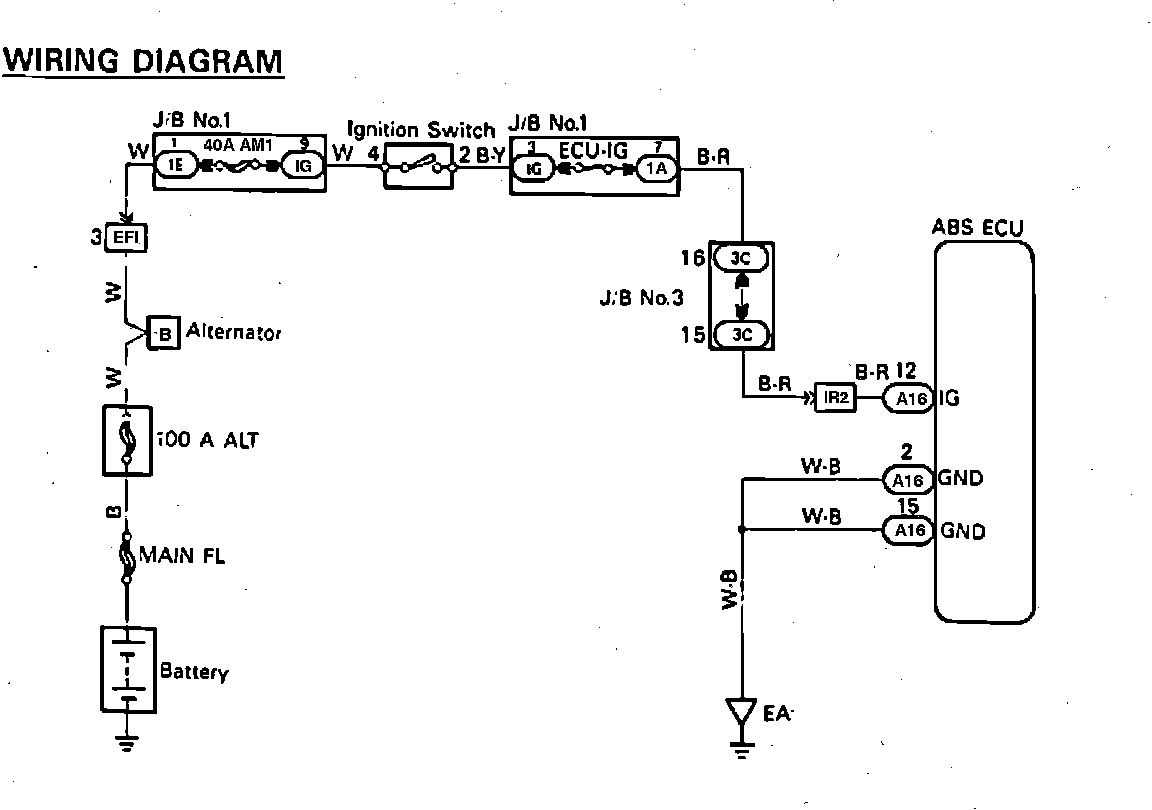

Fig. 54 Diagnostic (Trouble) Code 41, IG Power Source Circuit (Part 2 Of 4).:

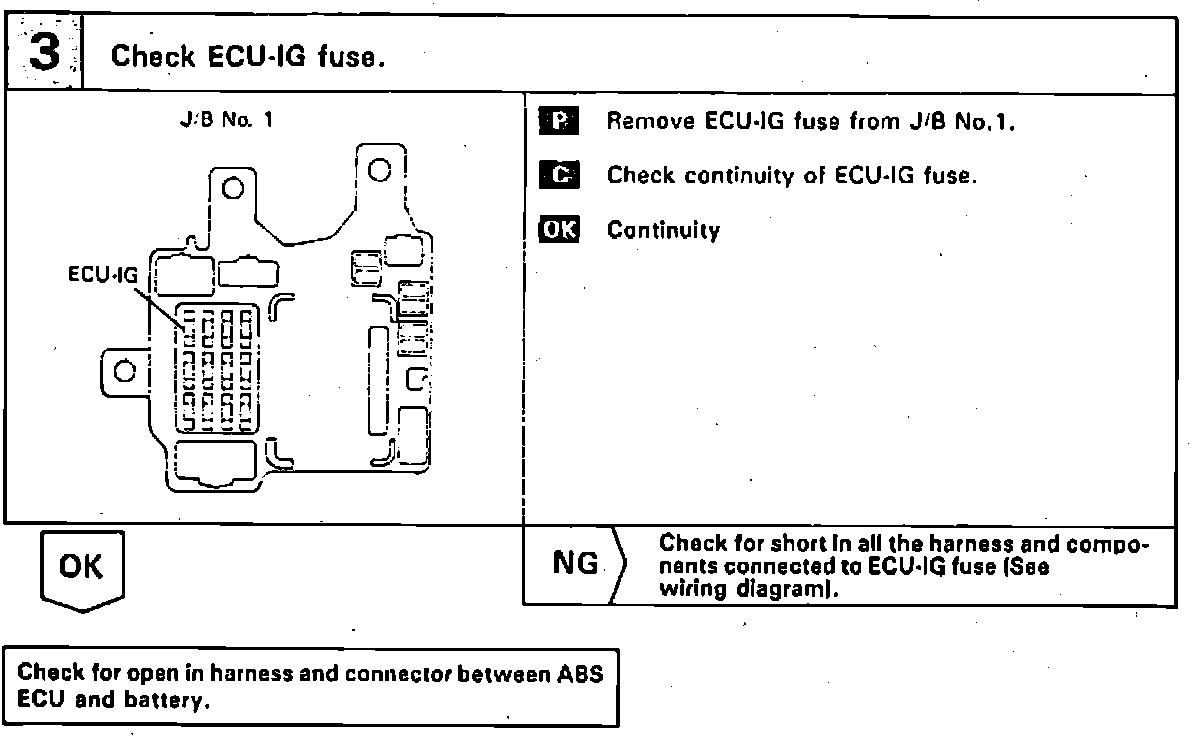

Fig. 54 Diagnostic (Trouble) Code 41, IG Power Source Circuit (Part 3 Of 4).:

Fig. 54 Diagnostic (Trouble) Code 41, IG Power Source Circuit (Part 4 Of 4).:
