DTC 22

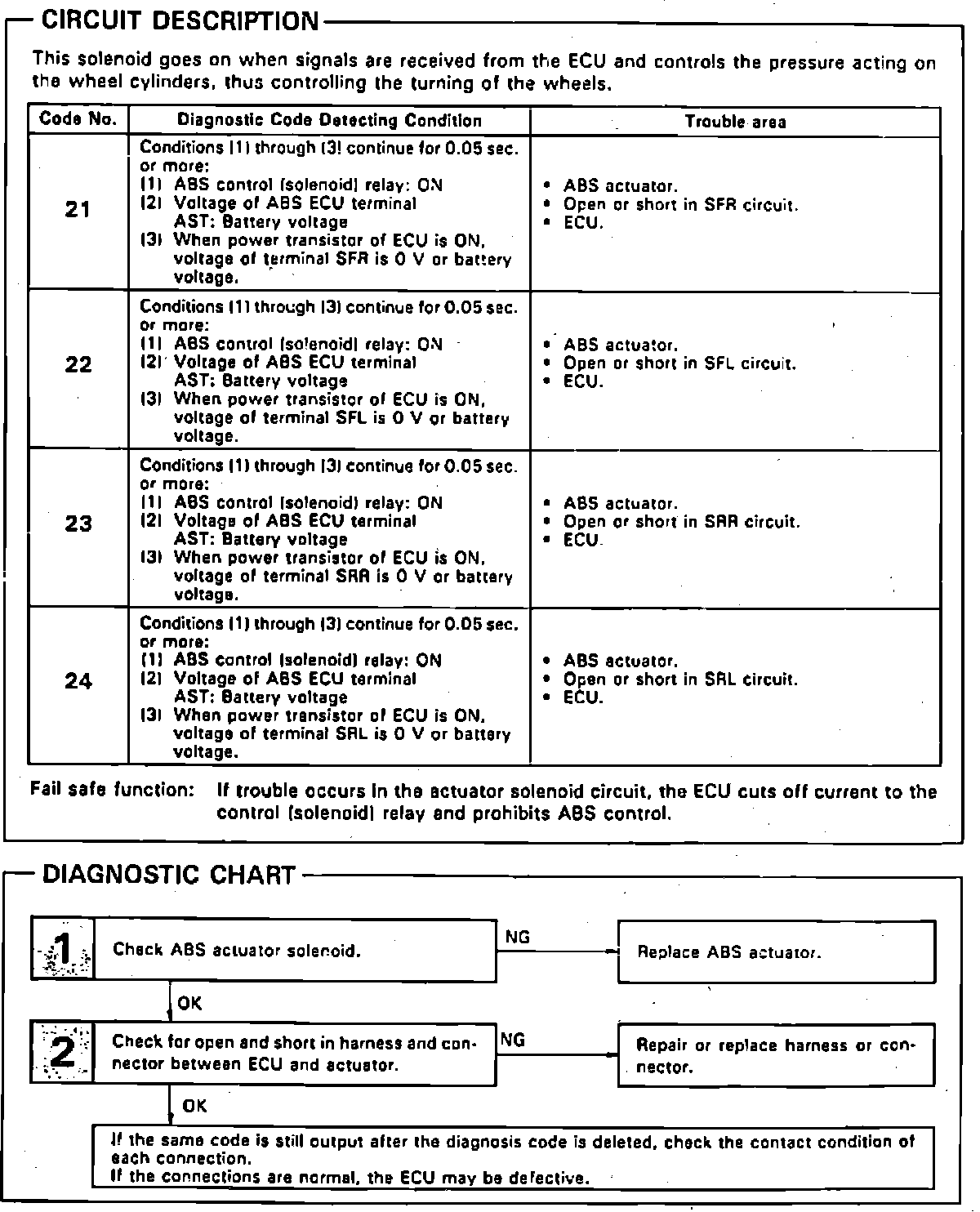

Fig. 52 Diagnostic (Trouble) Code 21, 22, 23 & 24, ABS Actuator Solenoid Circuit (Part 1 Of 3).:

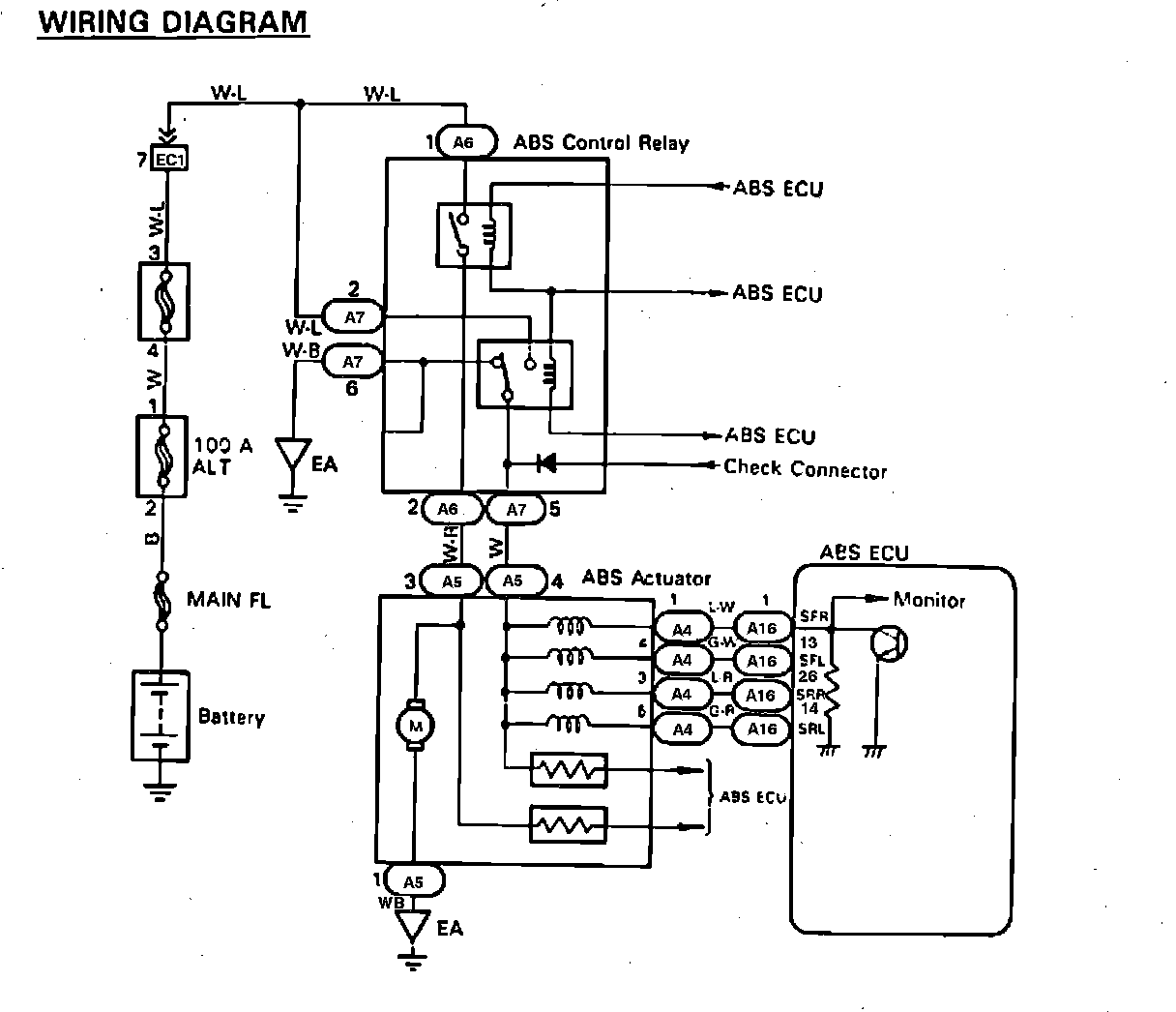

Fig. 52 Diagnostic (Trouble) Code 21, 22, 23 & 24, ABS Actuator Solenoid Circuit (Part 2 Of 3).:

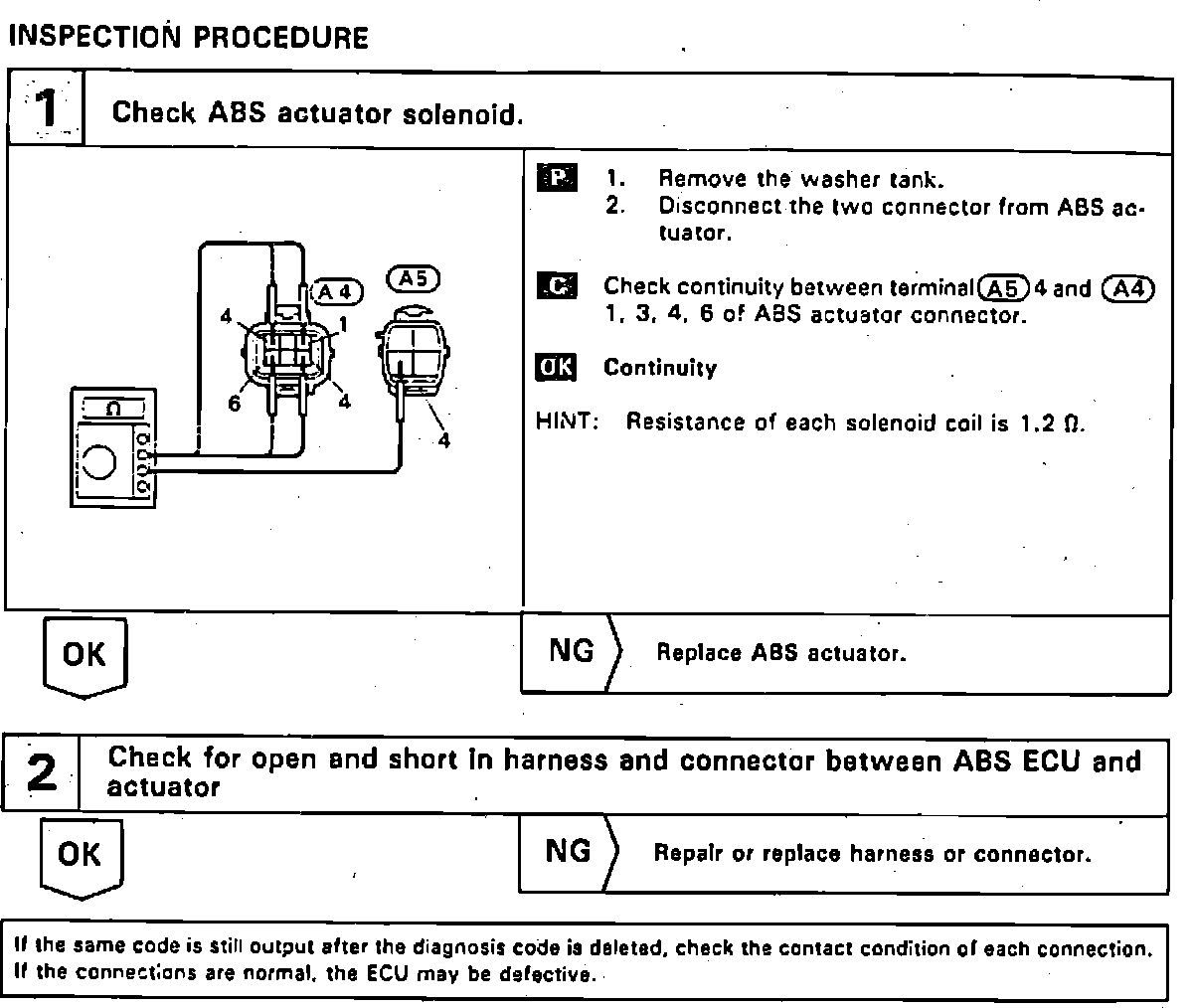

Fig. 52 Diagnostic (Trouble) Code 21, 22, 23 & 24, ABS Actuator Solenoid Circuit (Part 3 Of 3).:
