DTC 12

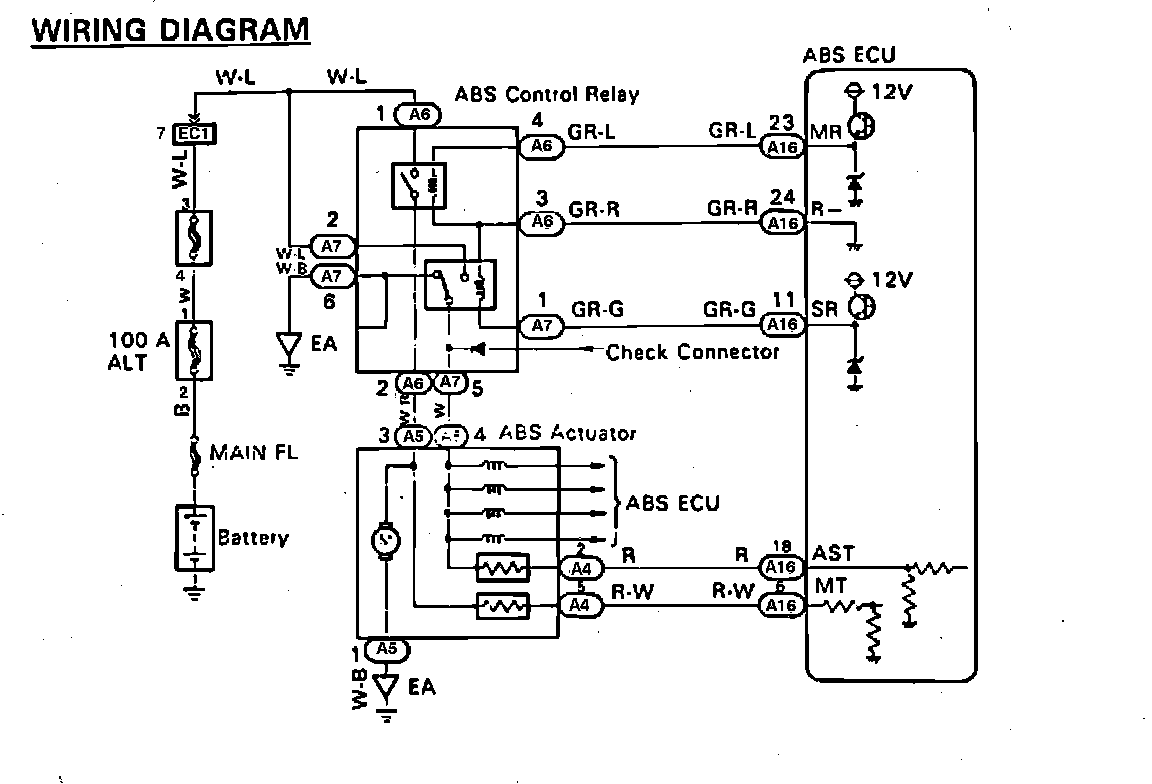

Fig. 50 Diagnostic (Trouble) Code 11 & 12, ABS Control Solenoid Relay Circuit (Part 1 Of 4).:

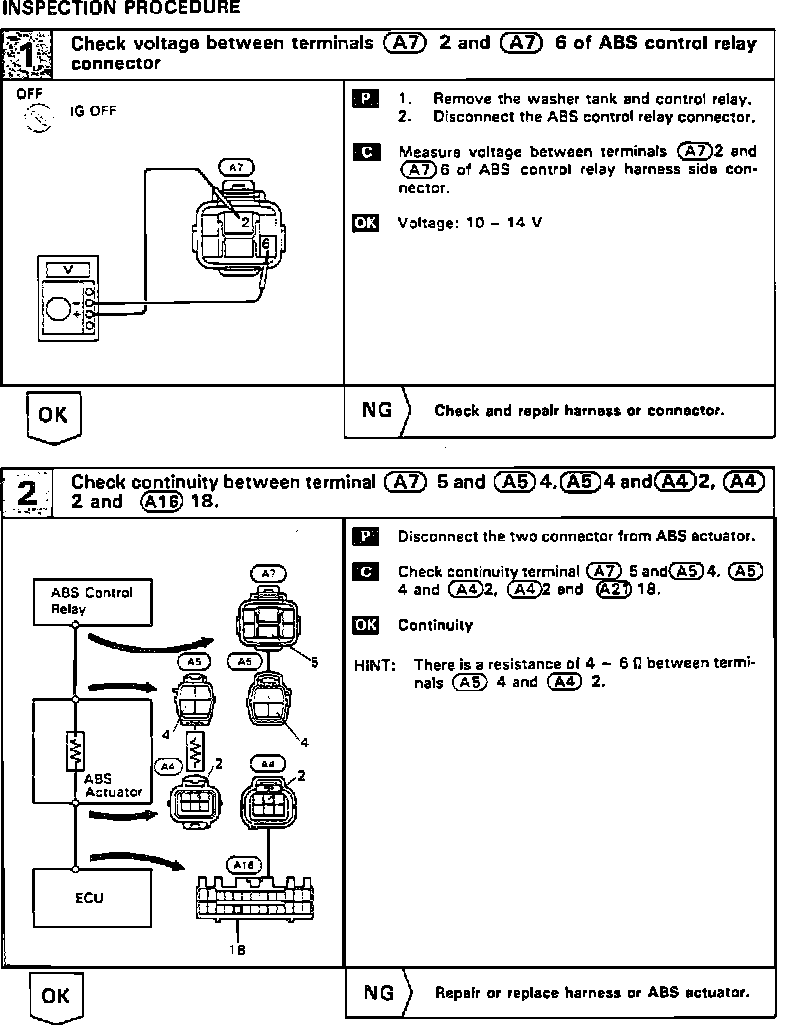

Fig. 50 Diagnostic (Trouble) Code 11 & 12, ABS Control Solenoid Relay Circuit (Part 2 Of 4).:

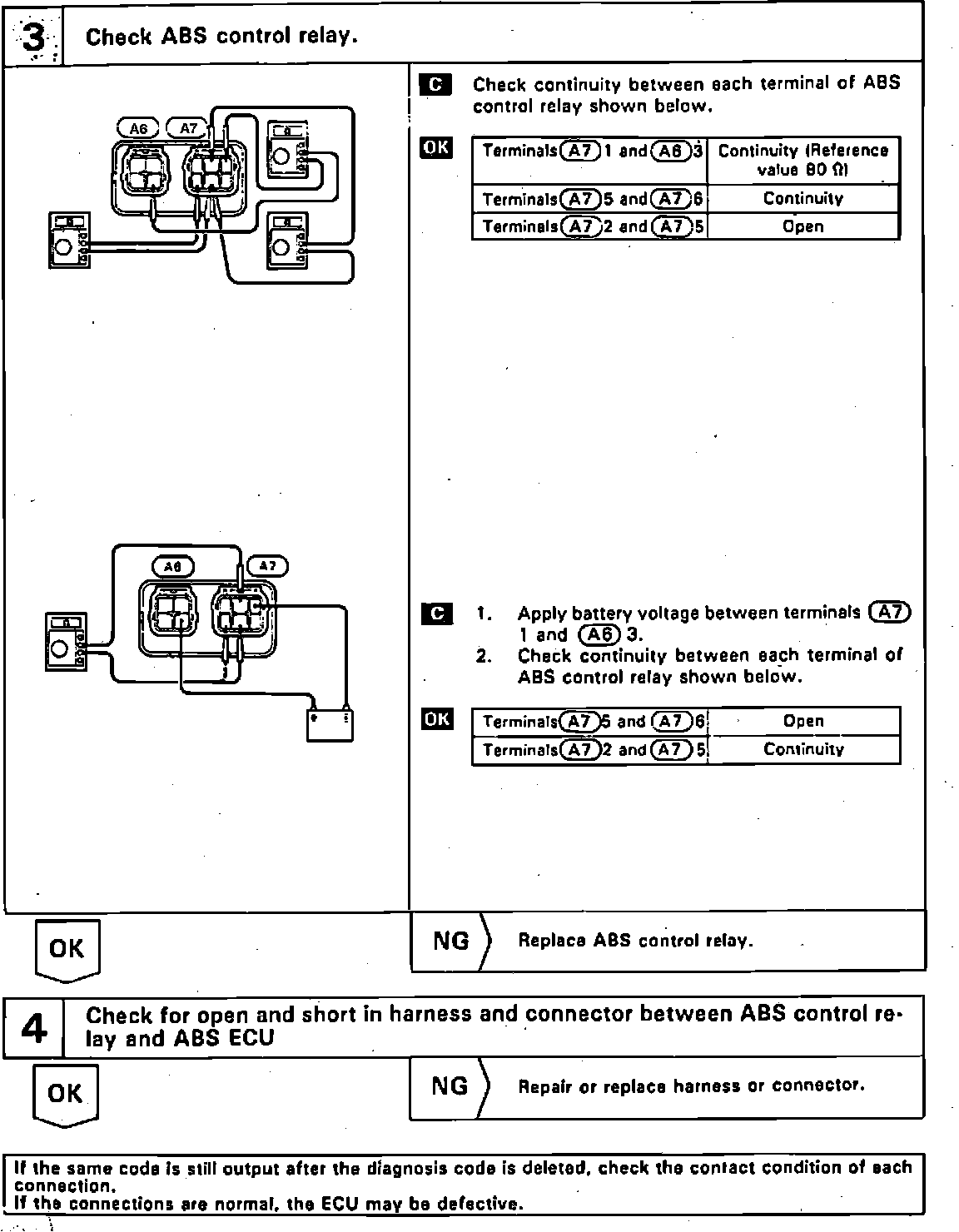

Fig. 50 Diagnostic (Trouble) Code 11 & 12, ABS Control Solenoid Relay Circuit (Part 3 Of 4).:

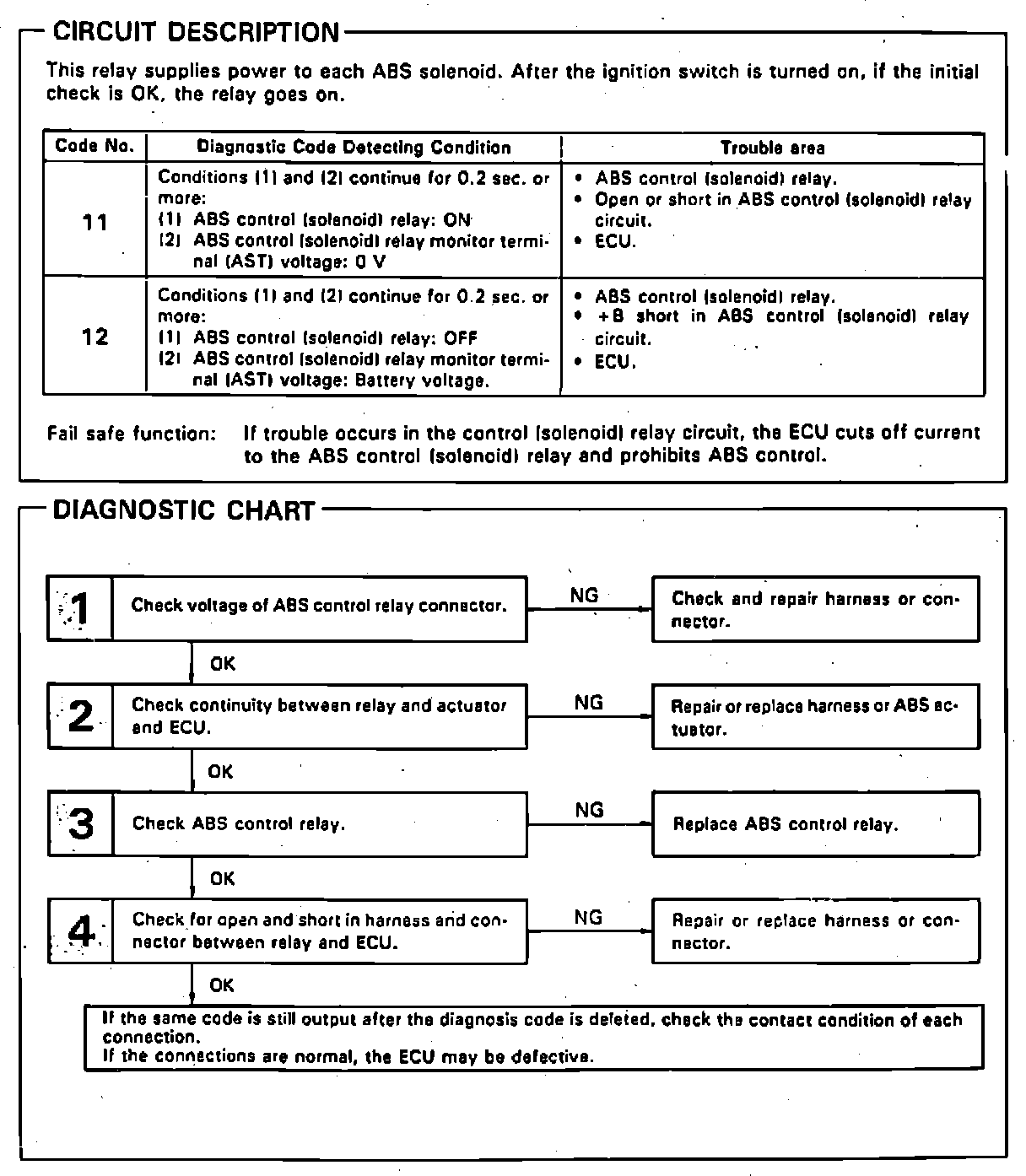

Fig. 50 Diagnostic (Trouble) Code 11 & 12, ABS Control Solenoid Relay Circuit (Part 4 Of 4).:
