Transmission/Transaxle Replacement

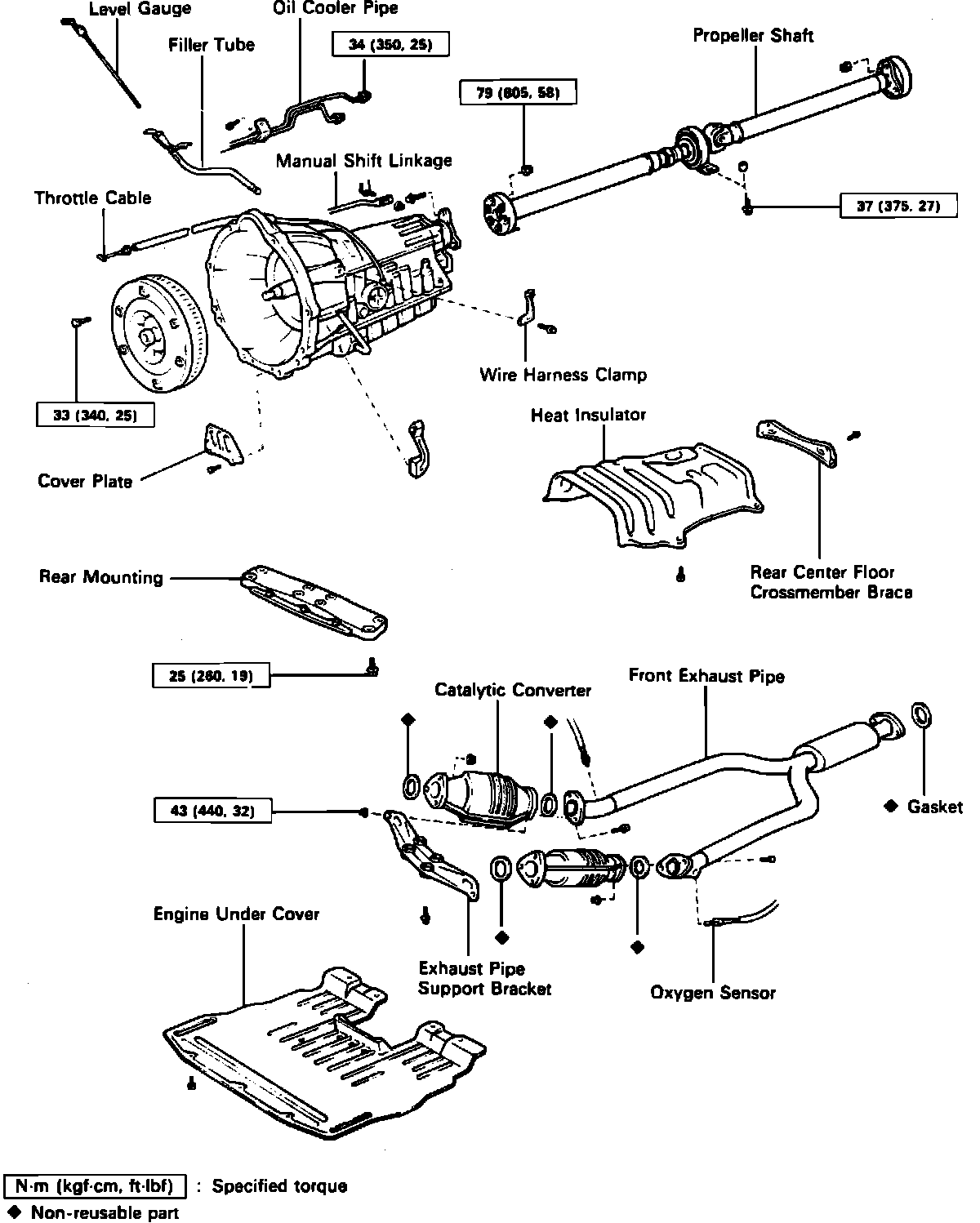

Fig. 16 Transmission Removal & Installation Diagram:






Disable airbag system as described under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING. Refer to Fig. 16. when replacing transmission.
