Audio - SC400 System & Component Information


9229lexus01

AUDIO
005
AUGUST 9, 1991
SC400


Title
SC400 AUDIO SYSTEMS

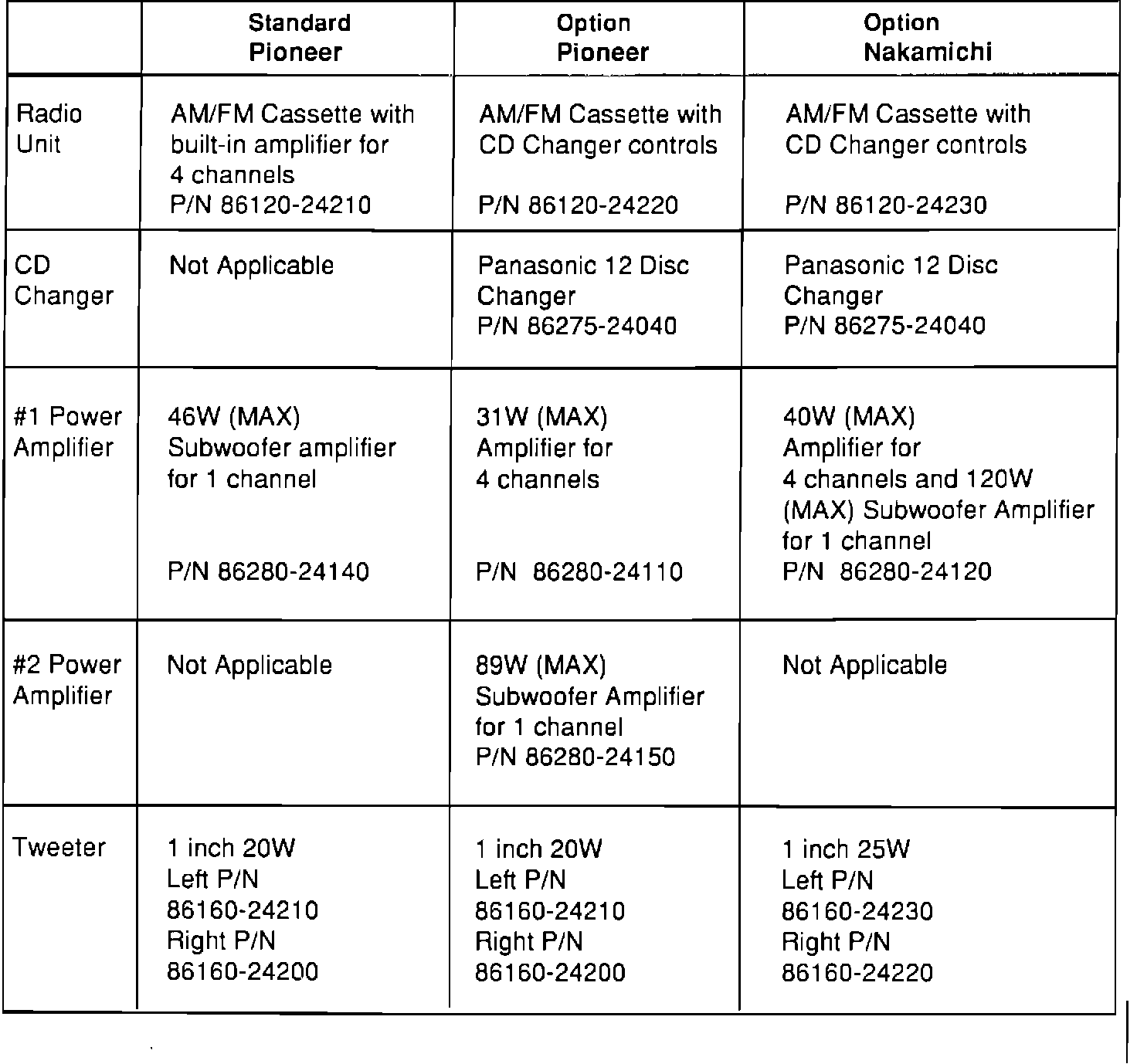

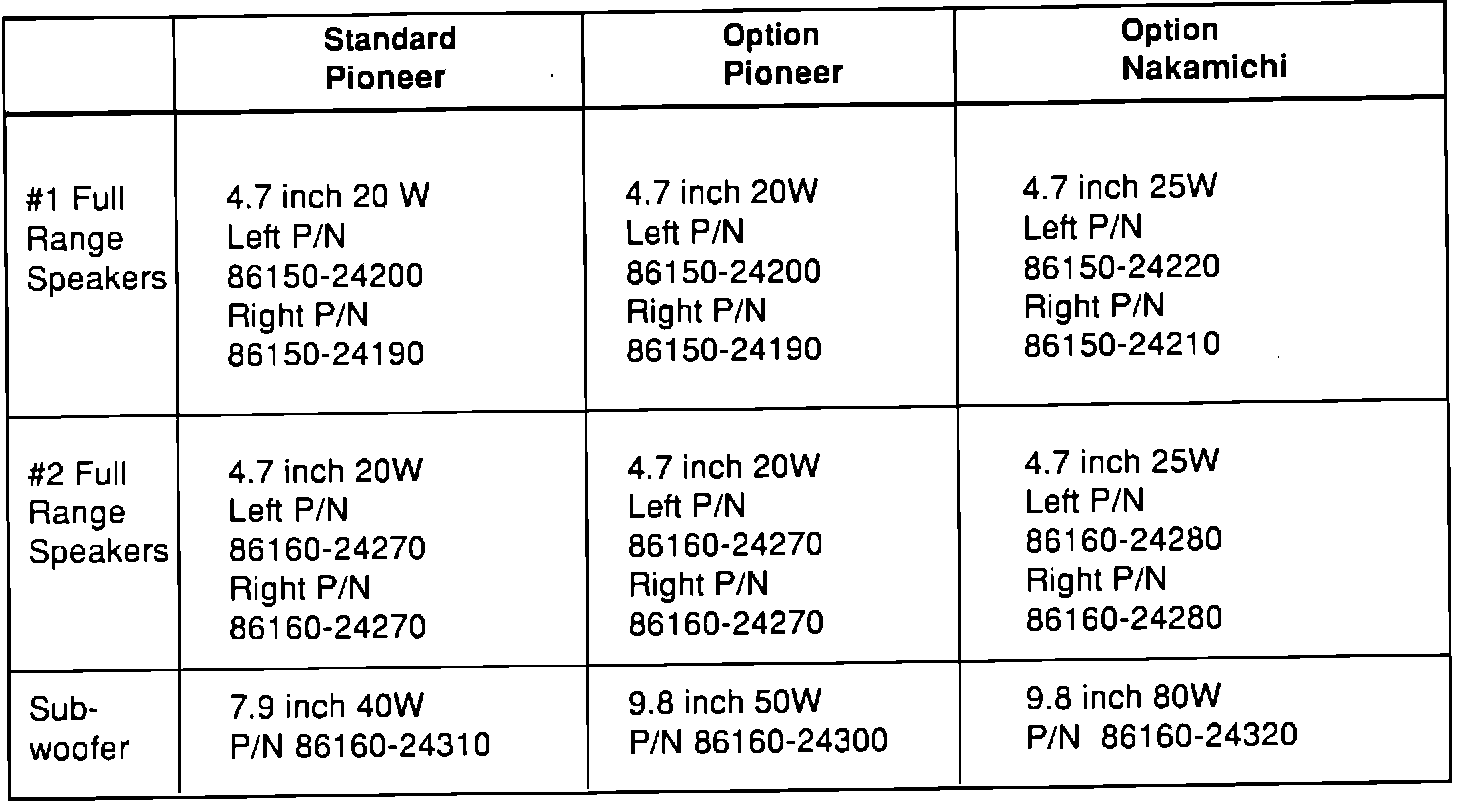

The SC400 has three audio system configurations to provide customers a wide choice of sound quality and CD changer options.

However, due to the complexity of SC400's audio systems, the individual components from the three configurations are not interchangeable.

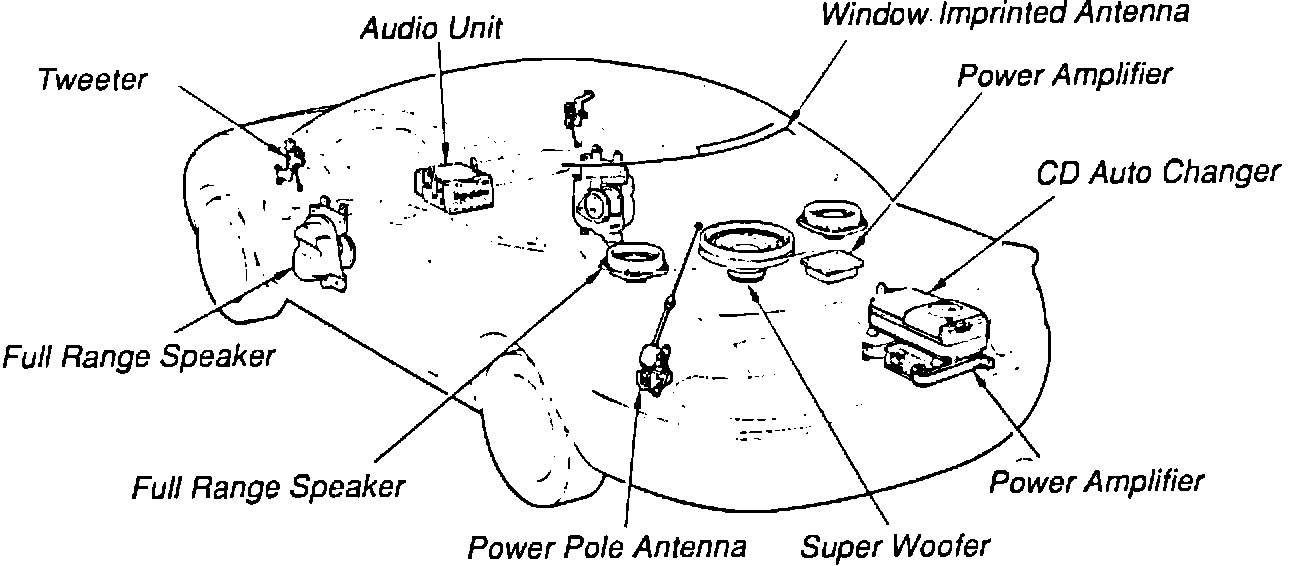

LOCATION OF COMPONENTS
