Ground Point Diagrams

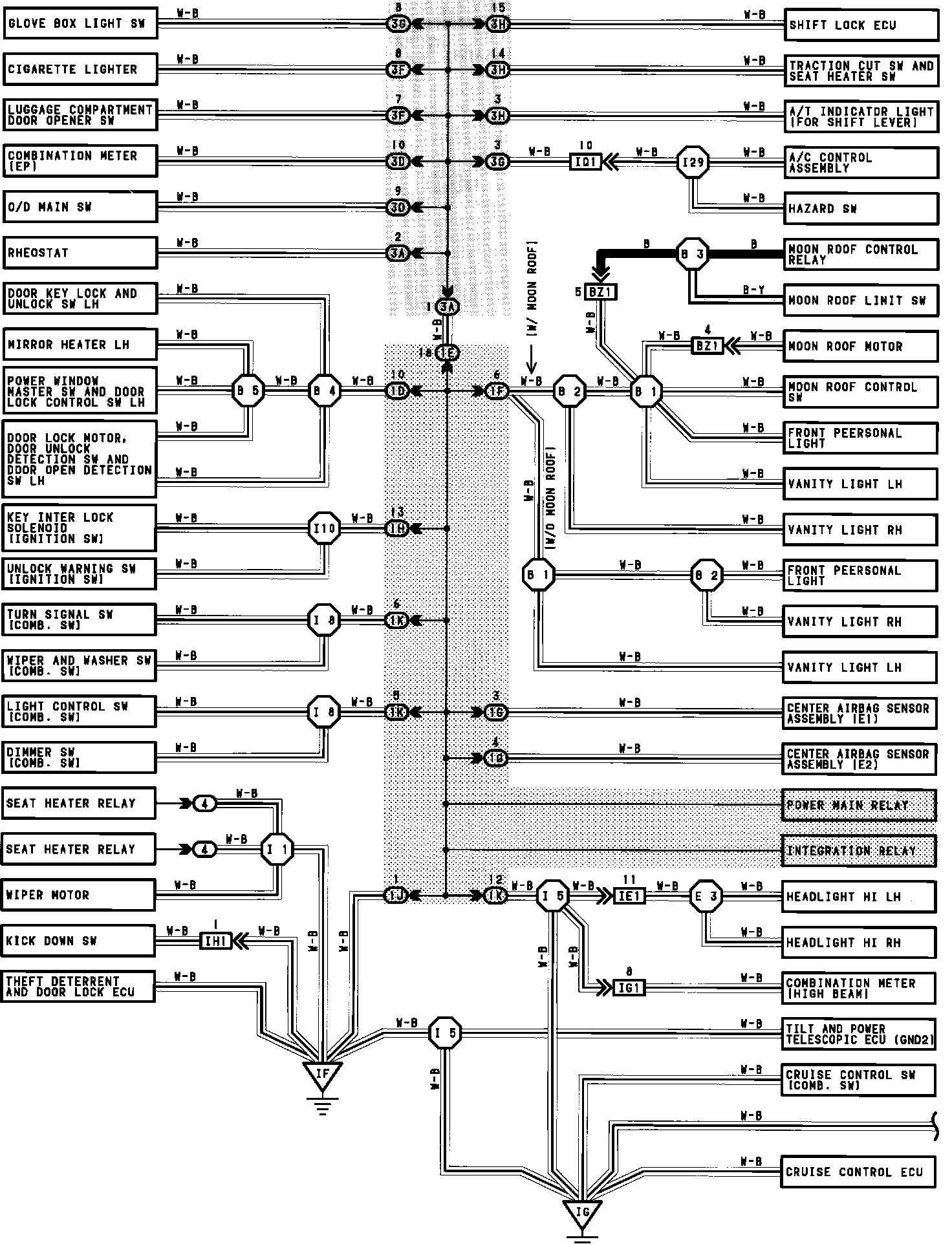

Ground Points IF And IG:

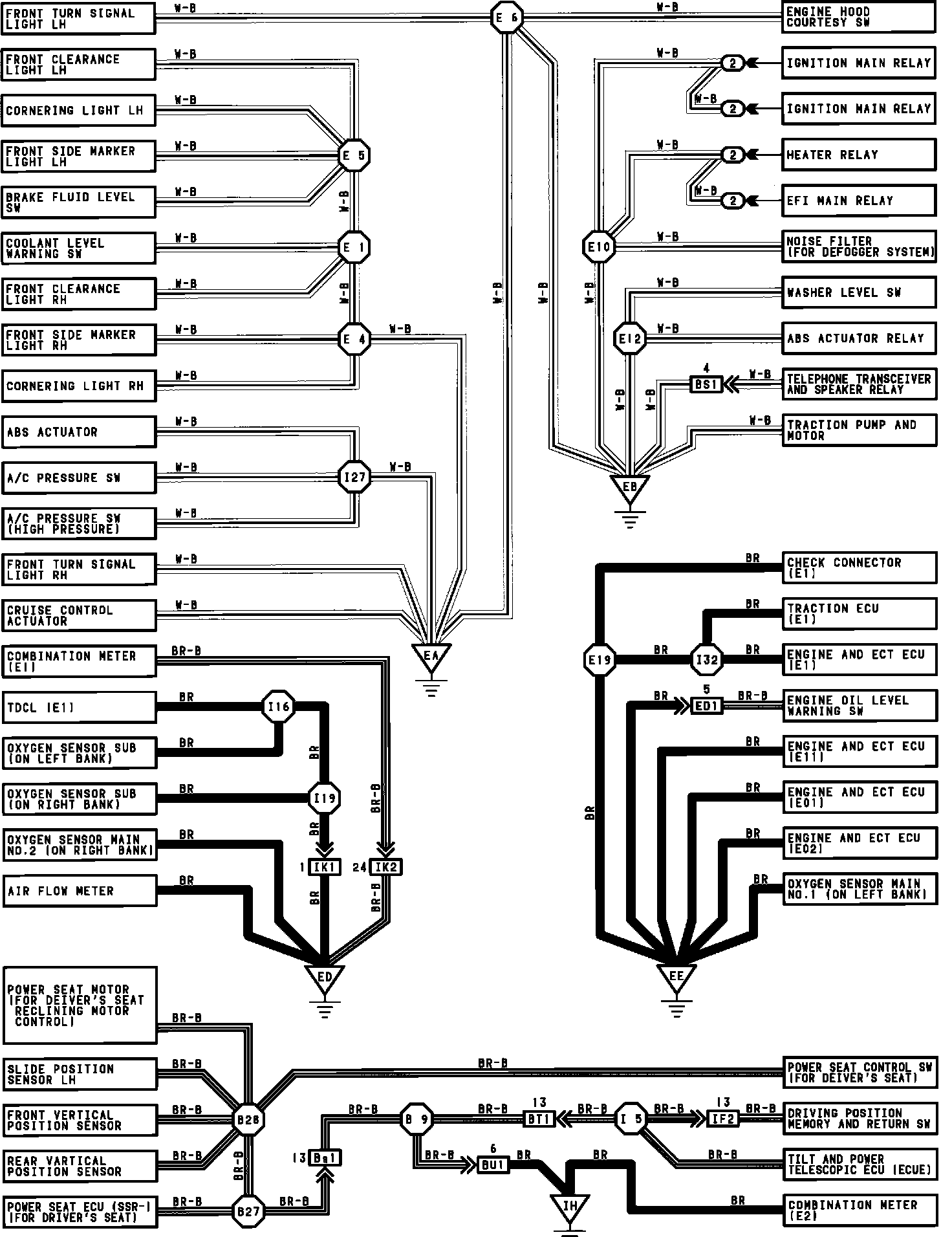

Ground Points EA, EB, ED, EE, And IH:

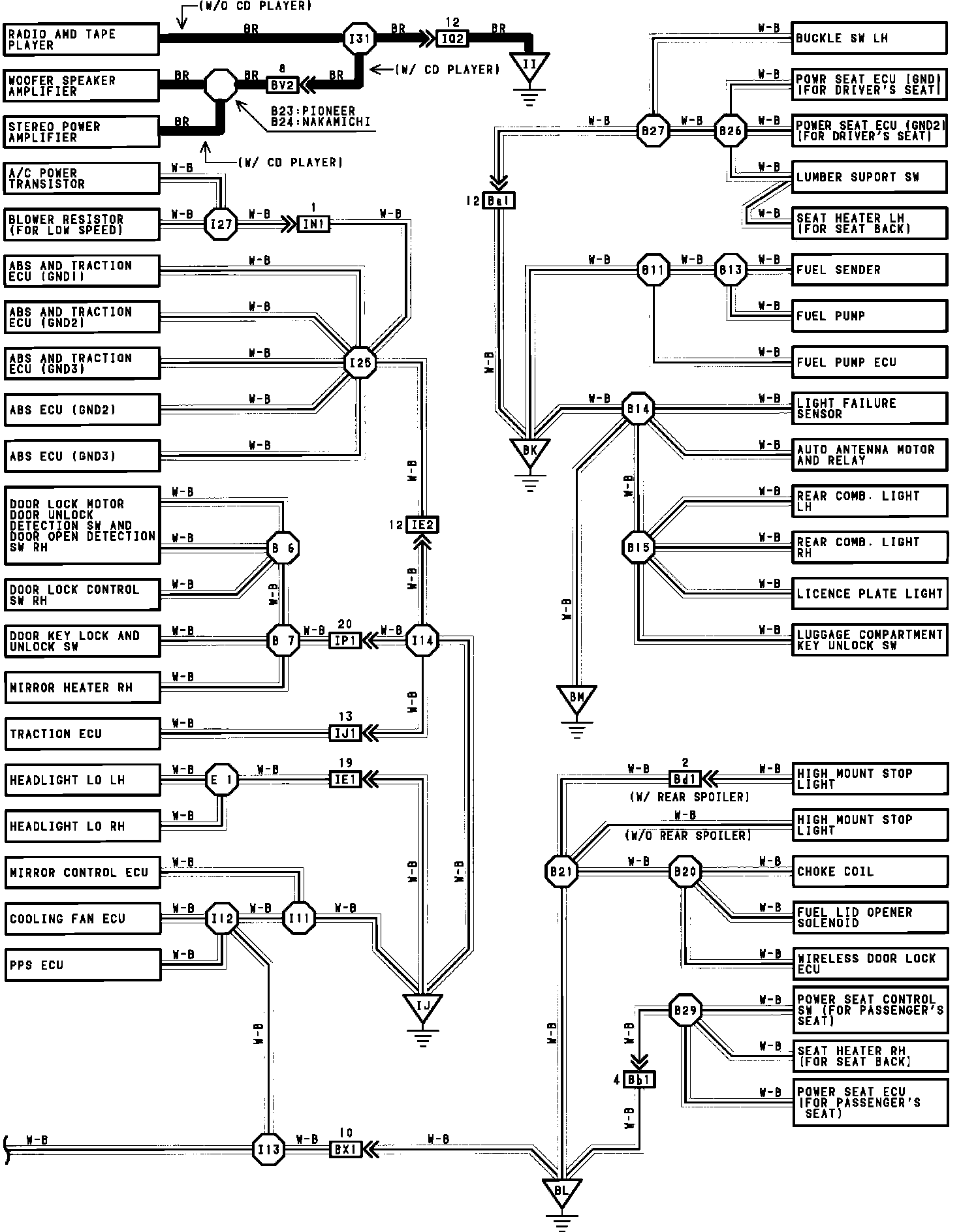

Ground Points II, BK, BM, IJ, AND BL:
