Main No. 1

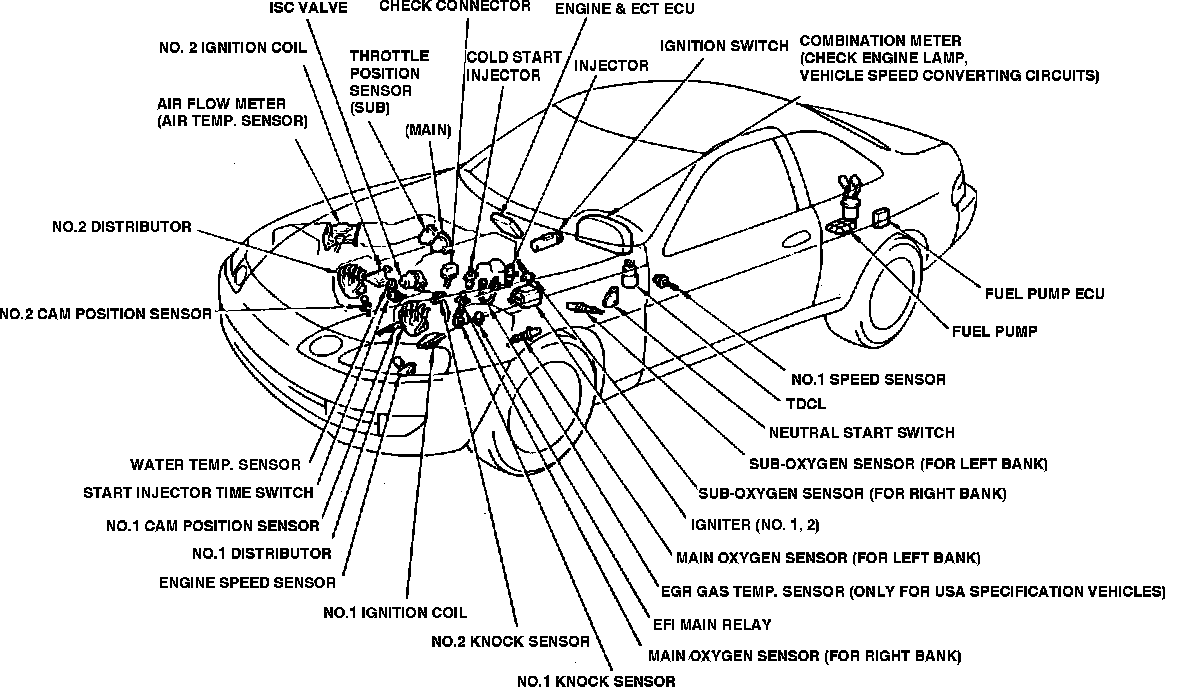

EFI System Components:

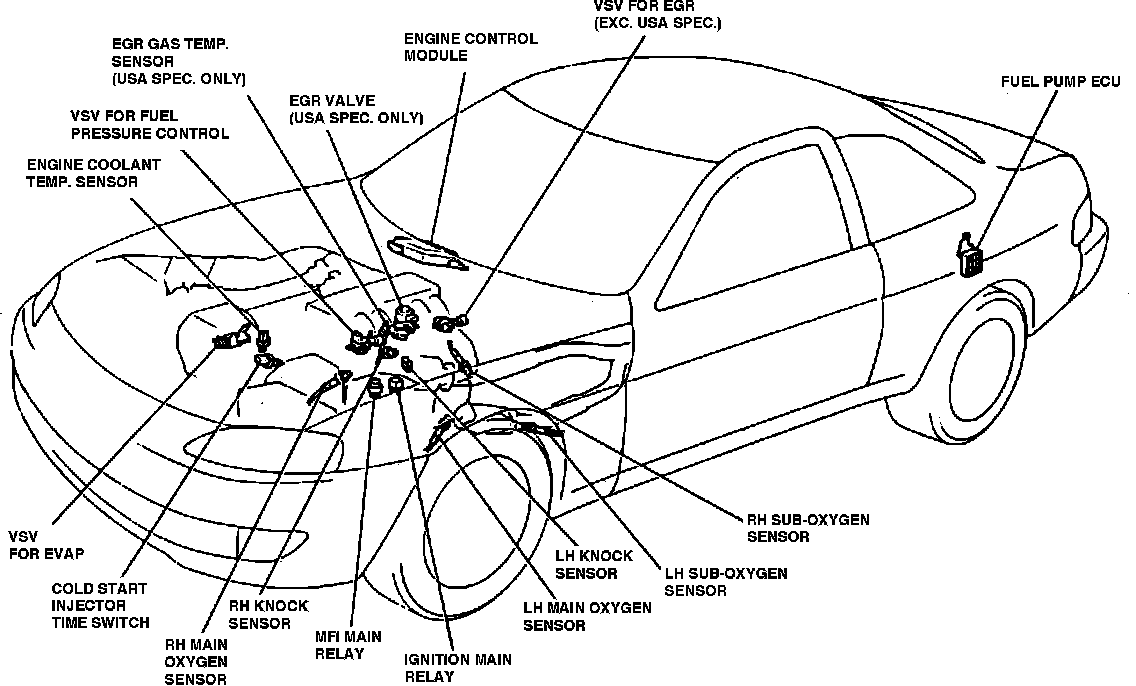

Engine Control Components:




Fuel System Components:




RH Side Of Engine Compartment
