Home >> Lexus >> 1992 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Wiring Diagrams

Wiring Diagrams

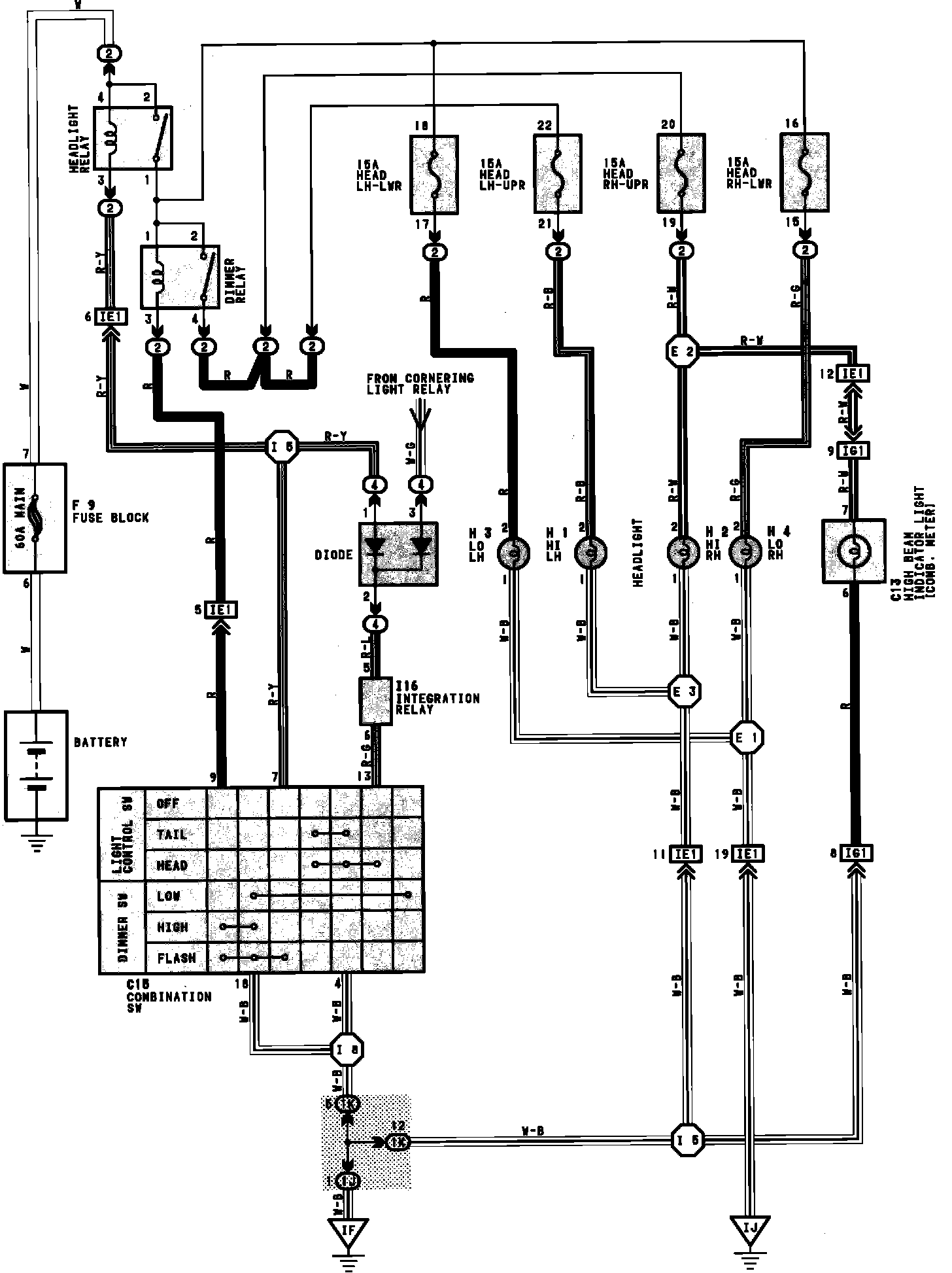

Headlights (USA Models):

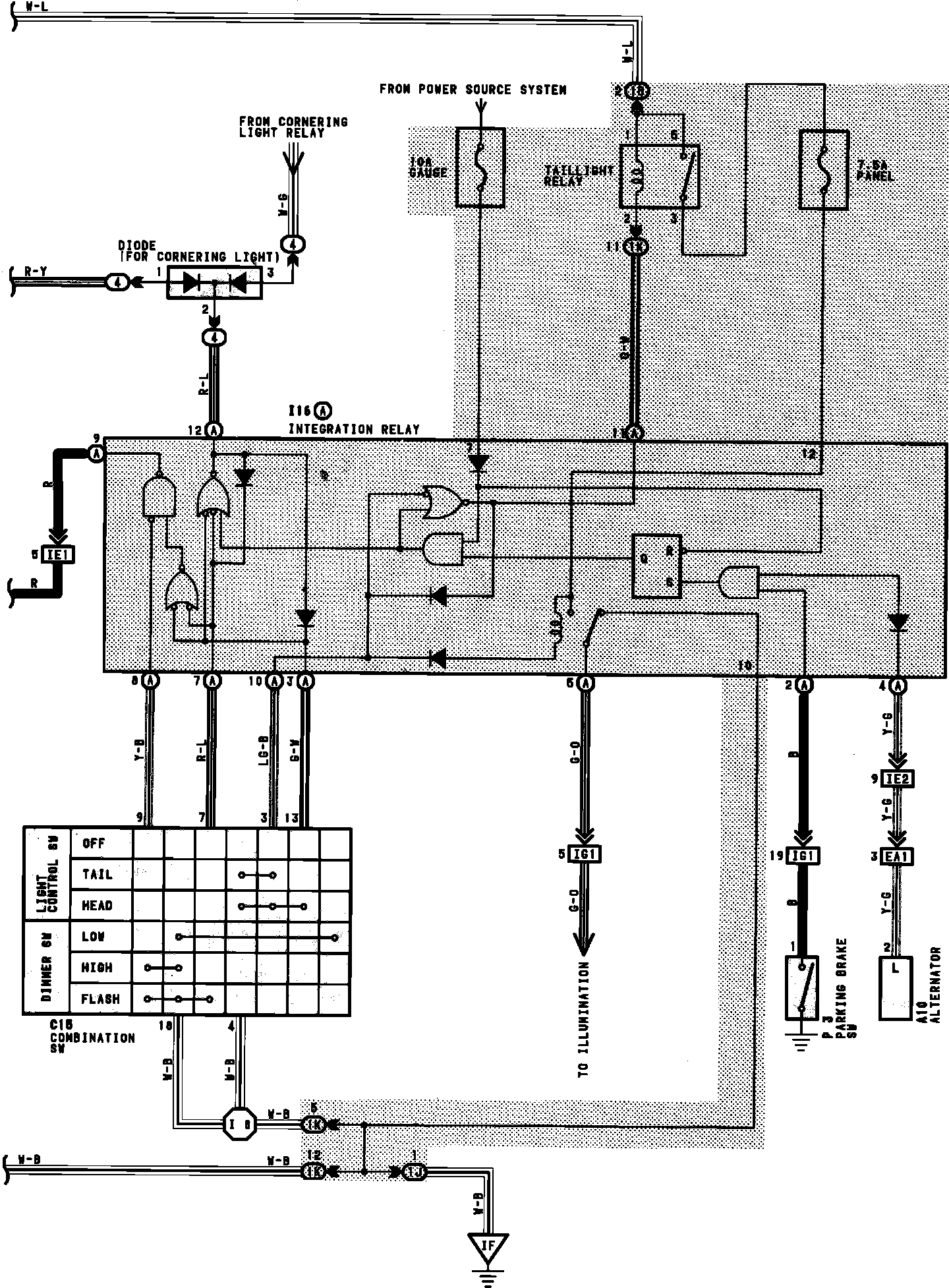

Headlights (Canadian Models):

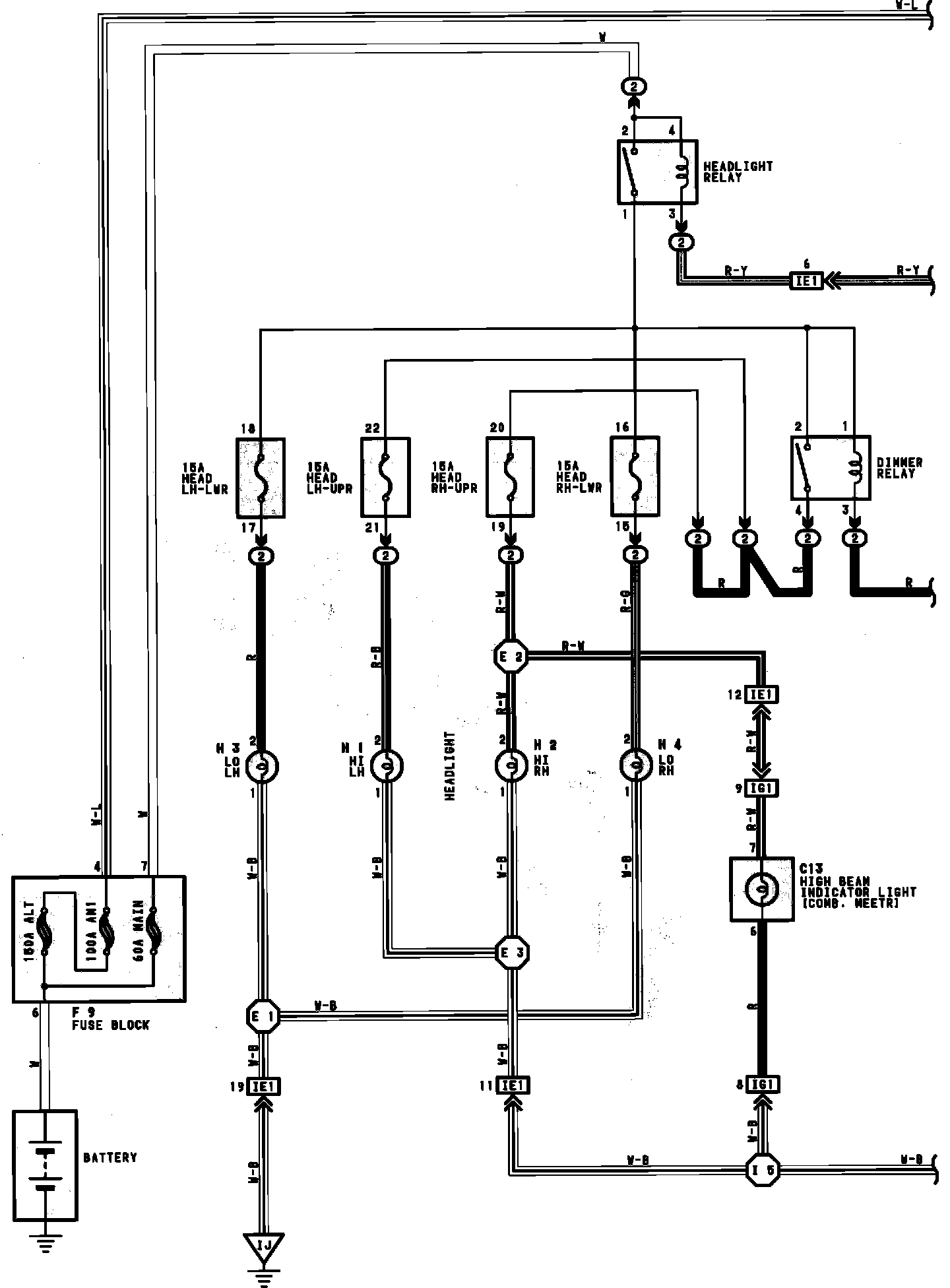

Headlights (Canadian Models):

Headlights Automatic Off Control:
