Oil Cooler: Service and Repair

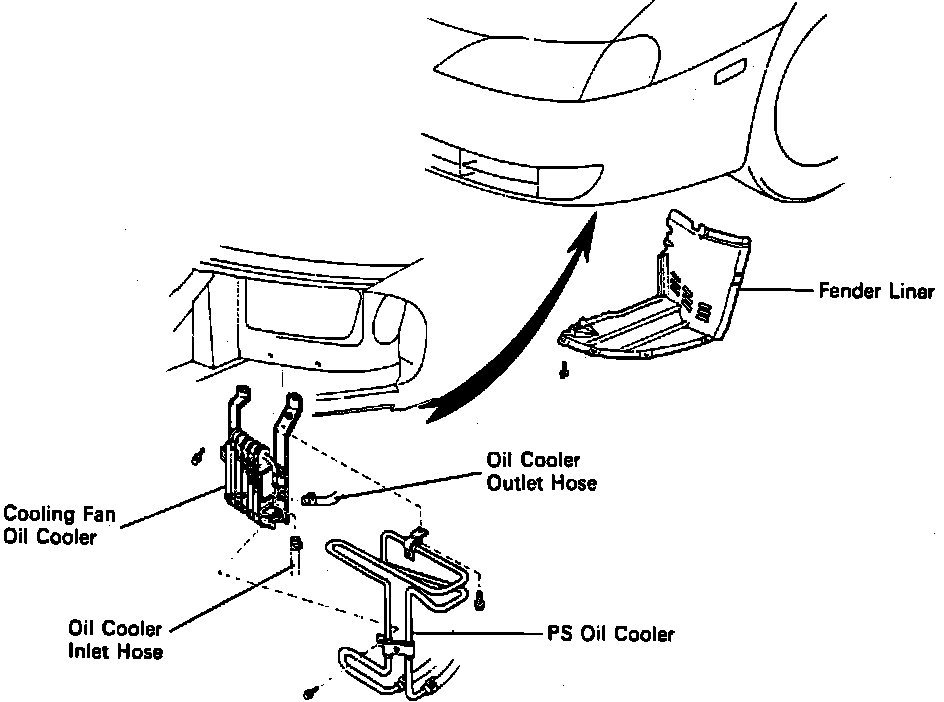

Fig. 4 Oil cooler removal:

Refer to Fig. 4 when replacing oil cooler.
1. Remove fender liner.
2. Disconnect power steering oil cooler from cooling fan oil cooler.
3. Disconnect hoses from oil cooler.
4. Remove three bolts and oil cooler.
5. Inspect oil cooler for damage or clogging. If necessary, replace oil cooler.
6. Reverse procedure to install. Fill power steering tank with fluid and bleed hydraulic system as outlined under ``Hydraulic System Bleeding.''
