SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse, Relay, and Junction Block Data
>>
Junction Blocks
>>
Number 3
Number 3

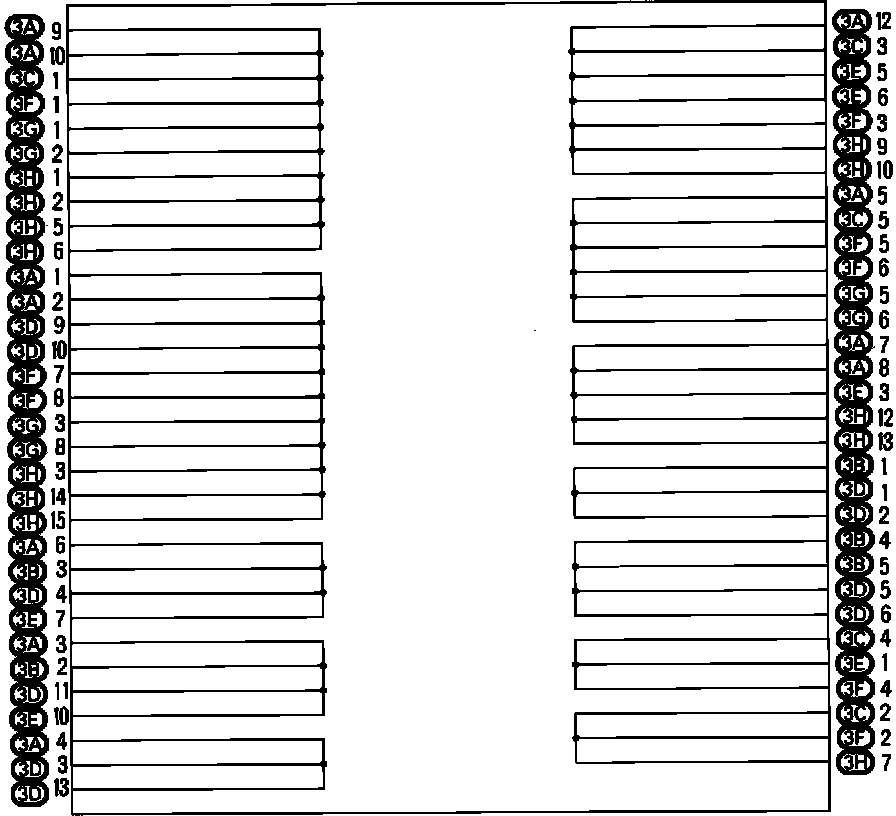

J/B No. 3 - Inner Circuit:
INNER CIRCUIT

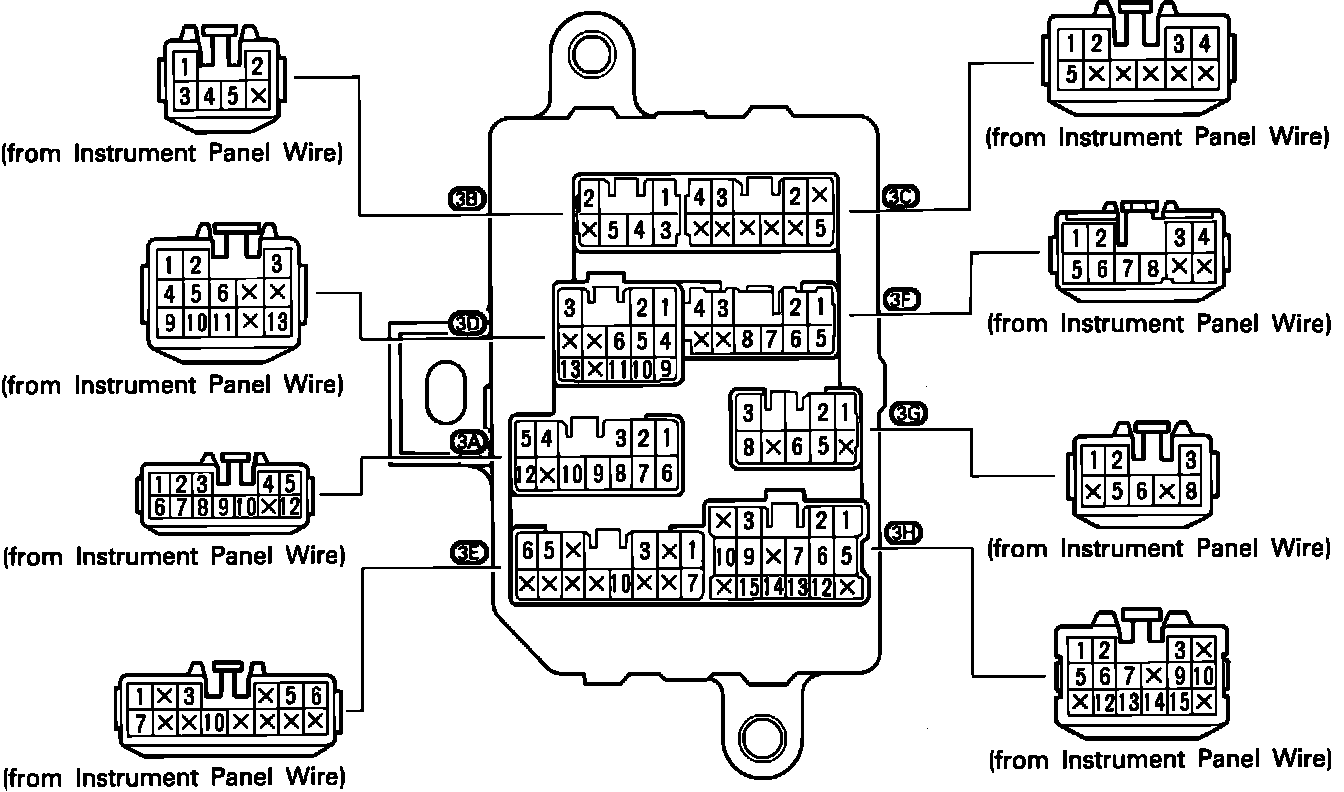

J/B No. 3 Behind The Instrument Panel Center:
VIEW
