Home >> Lexus >> 1992 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Electrical Diagrams

Electrical Diagrams

ABS And Traction Control:



ABS And Traction Control:



ABS And Traction Control:



ABS And Traction Control:



ABS And Traction Control:

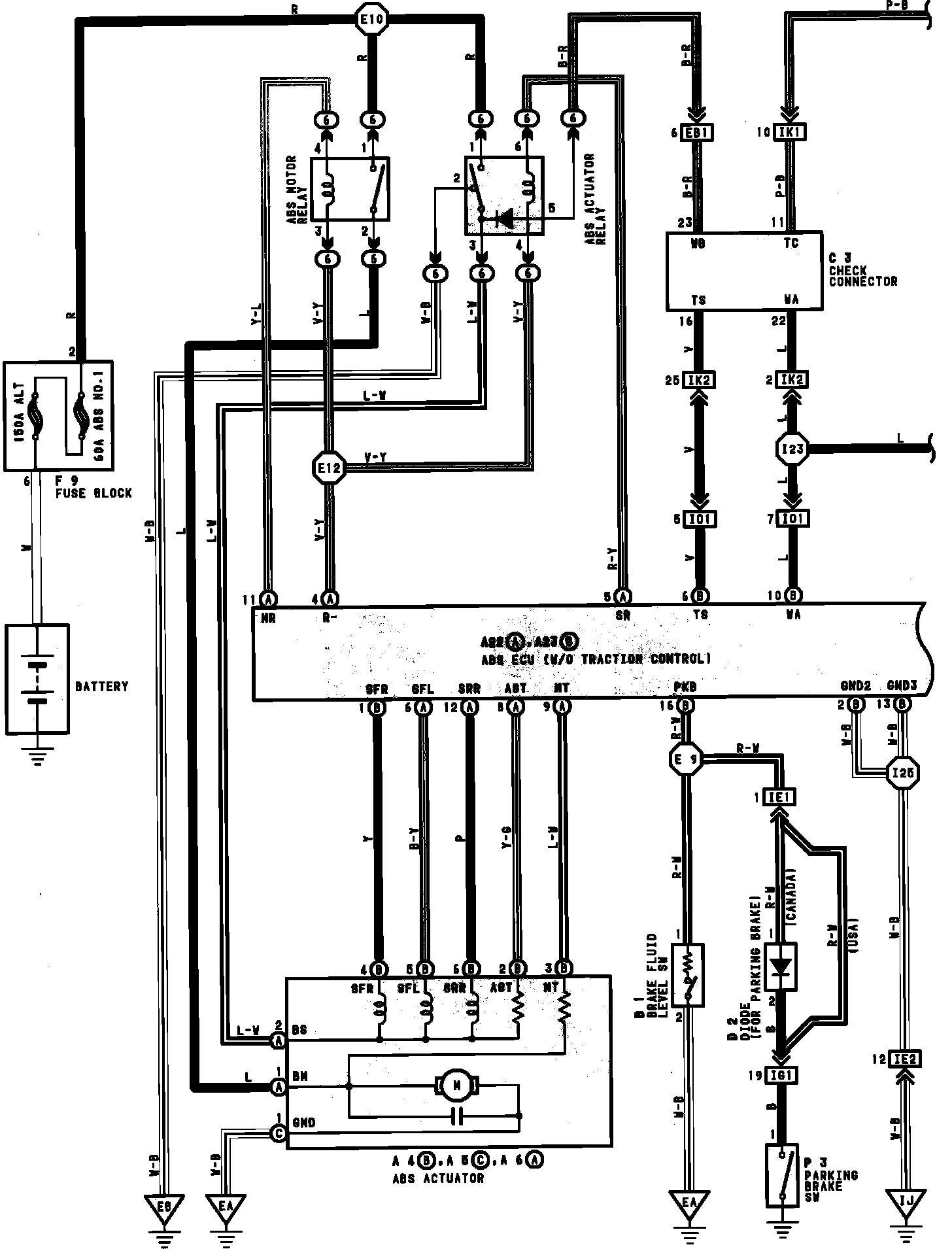

Anti - Lock Brake System (ABS):



Anti - Lock Brake System (ABS):
