Front Seat Cover - Wear: Overview

91lexus04

BODY

028

SEPTEMBER 13, 1991

SC400


Title FRONT SEAT COVER WEAR

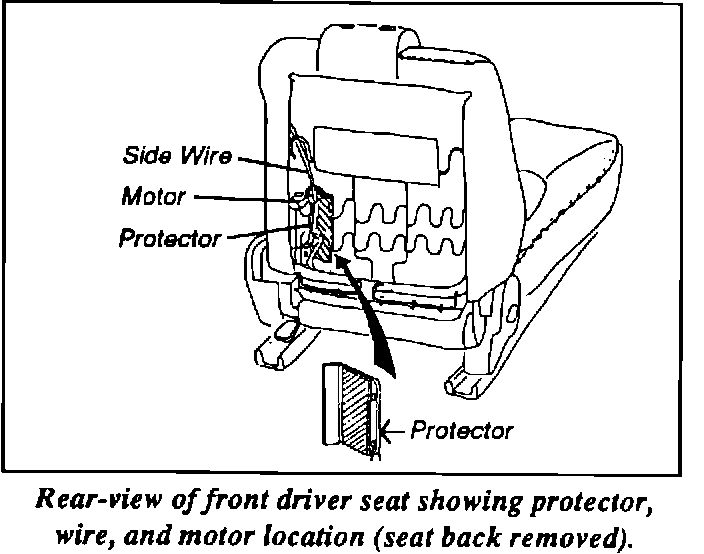

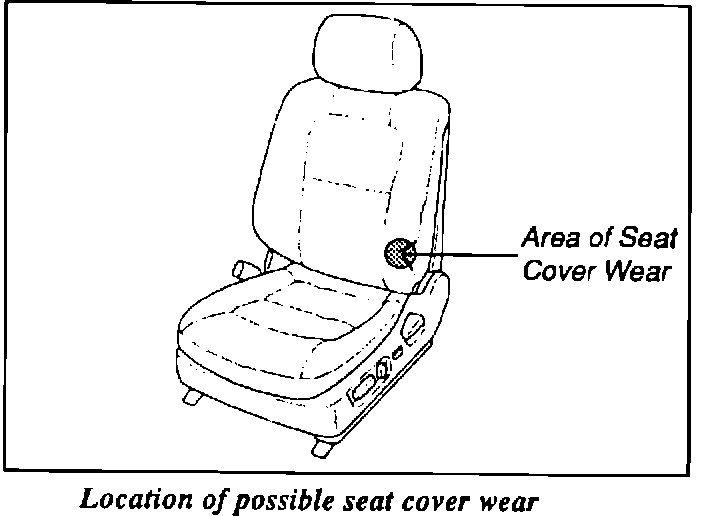

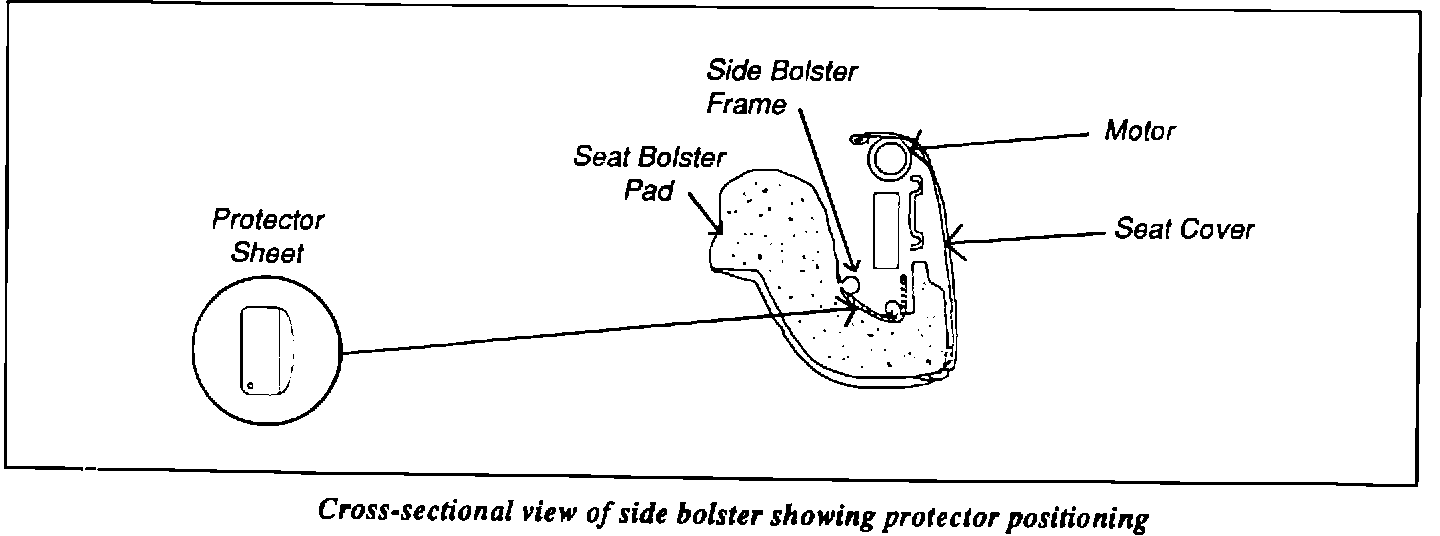

To increase the wear durability of leather material on SC400 front seat outer side bolsters, internal protector sheets have been added between the bolster padding and outward seat frame on both driver and passenger sides.











The procedures describe installation of protector sheets and should be included with seat cover replacement if excessive bolster wear is found.
