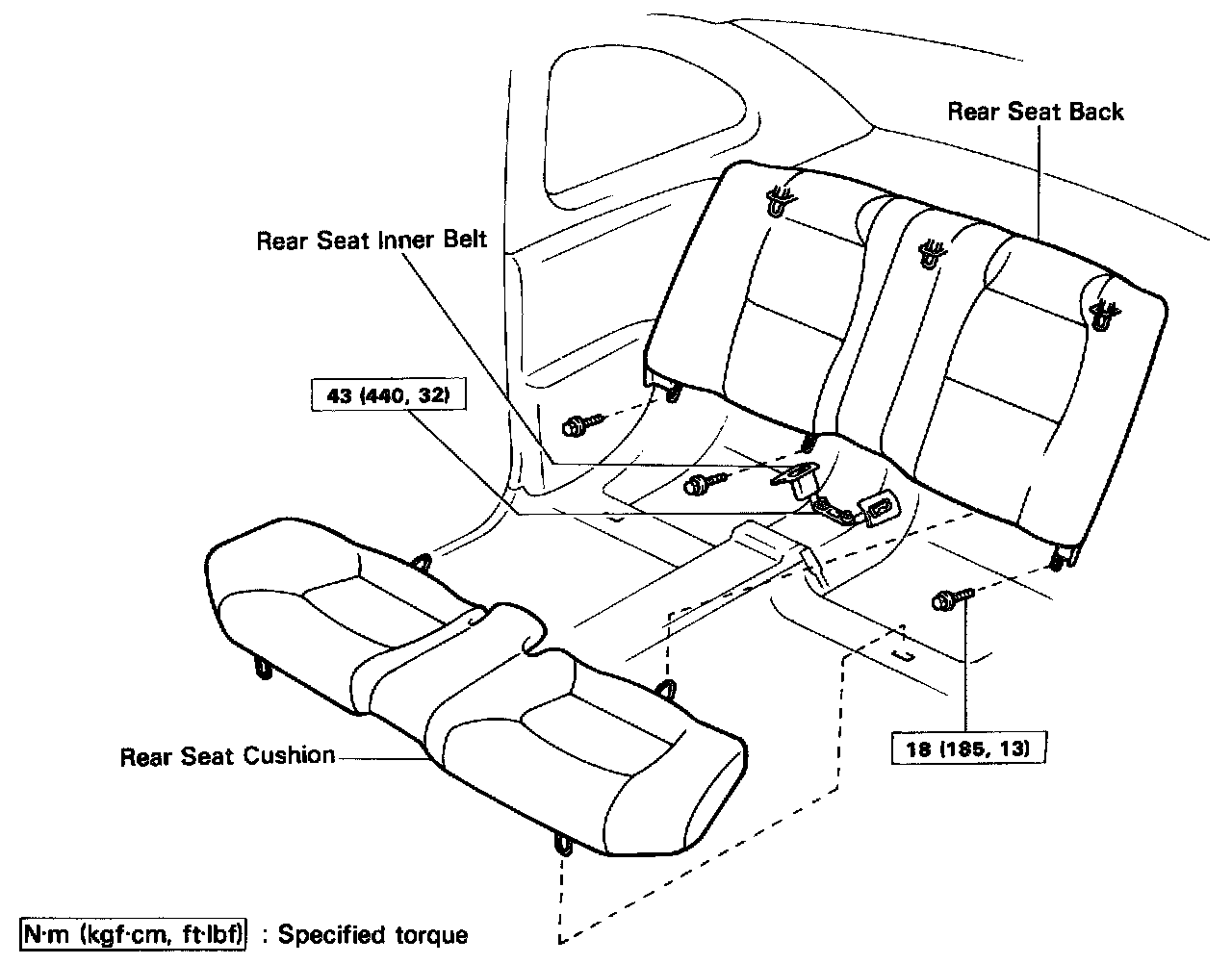

Removal and Installation

REMOVAL OF REAR SEAT

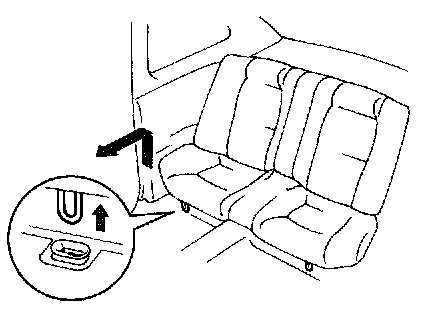

1. REMOVE REAR SEAT CUSHION
Pull up the seat cushion to remove it.

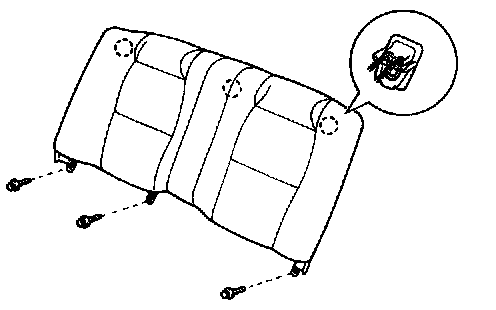

2. REMOVE REAR SEAT BACK
(a) Remove three bolts.
(b) Pull up the seat back to remove it.

INSTALLATION OF REAR SEAT

1. INSTALL REAR SEAT BACK
Push down the rear seat back and install three bolts.

Torque: 18 N.m (185 kgf.cm, 13 ft.Ibf)

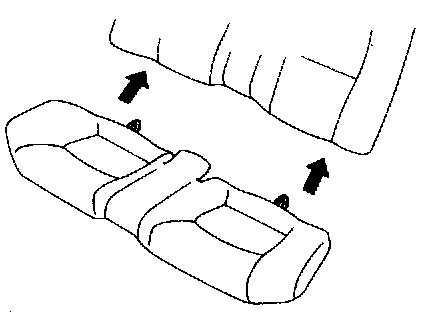

2. INSTALL REAR SEAT CUSHION





(a) Insert the seat cushion wire to seat back.

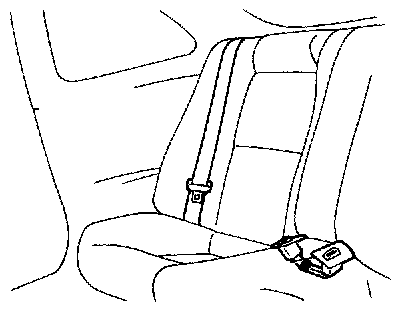

HINT: Before installation, confirm that the rear seat belts are positioned shown.

(b) Push down the cushion to install the hook to the body panel.

HINT: Confirm that the seat is installed firmly.
