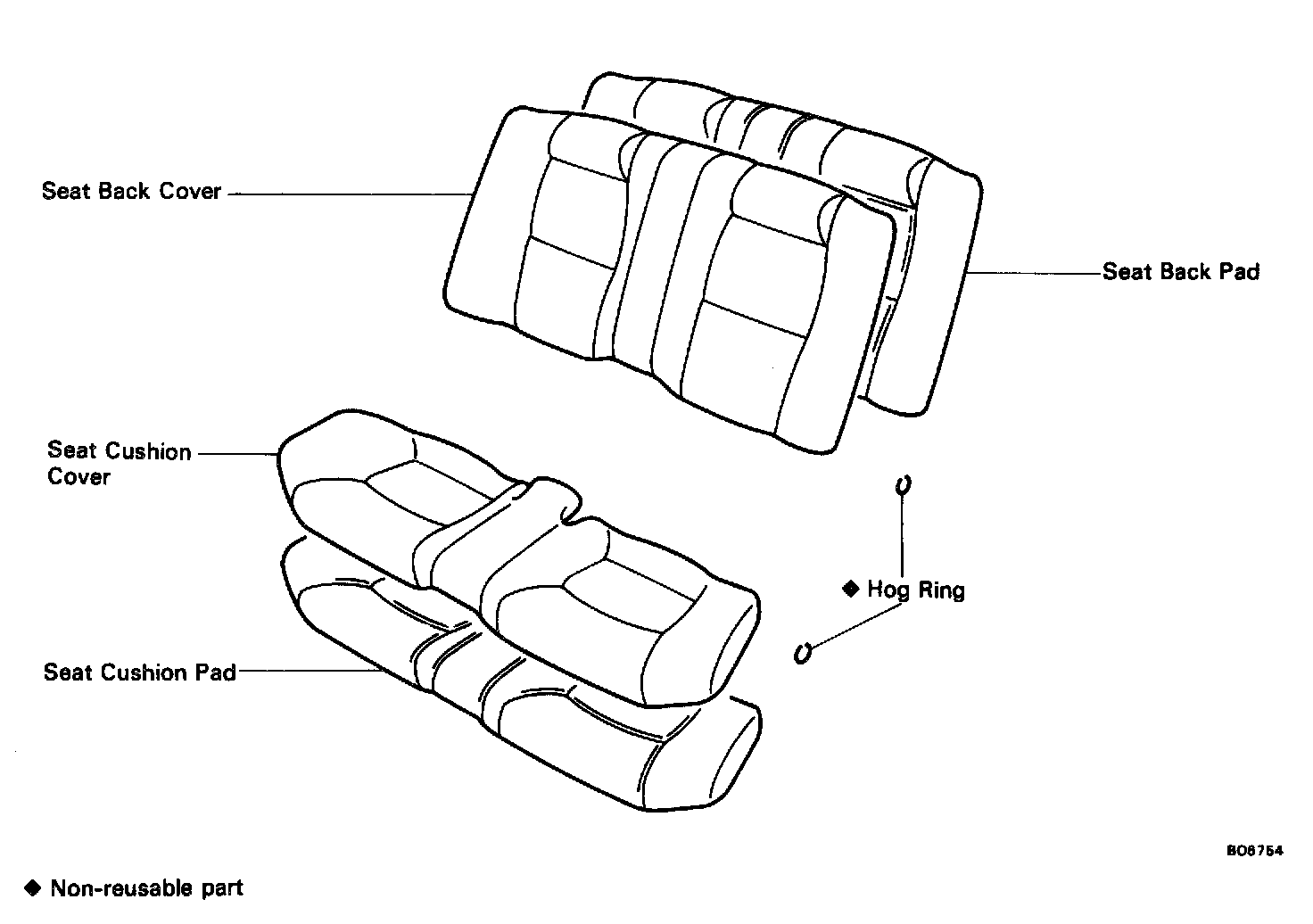

Disassembly and Assembly

DISASSEMBLY OF REAR SEAT

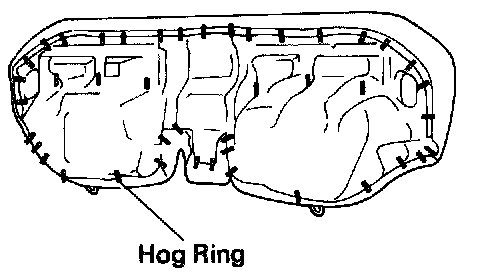

1. REMOVE SEAT CUSHION COVER
Remove hog rings and the cover.

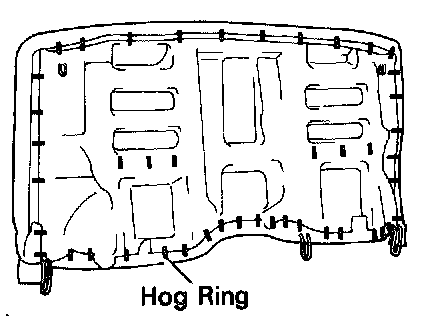

2. REMOVE SEAT BACK COVER
Remove hog rings and the cover.





ASSEMBLY OF REAR SEAT
Assemble the rear seat parts by following disassembly sequence in reverse.

HINT:

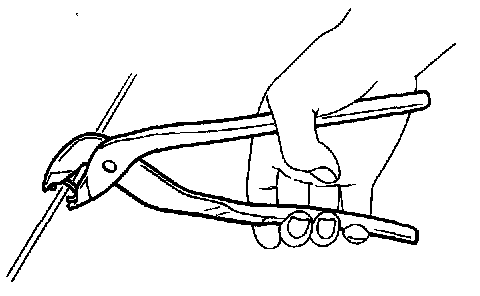

- Using a hog ring pliers install the new hog ring.
- If creases occur in the front seat, stretch out the creases by heating then with a dryer, etc.

If the creases still cannot be removed, spray them lightly with a vaporizer before applying the hair dryer again.
