Removal and Installation

REMOVAL OF FRONT SEAT

1. REMOVE HEADREST
While pushing the lock button, pull up the headrest to remove it.

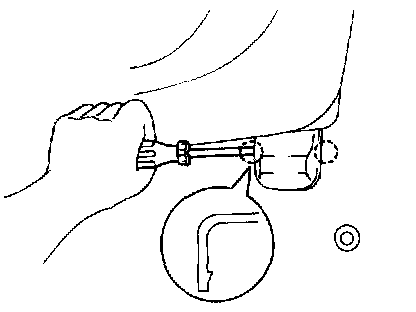

2. REMOVE SEAT TRACK COVERS
Using a screwdriver, pry out three covers.

HINT: Tape the screwdriver tip before use.

3. REMOVE SEAT TRACK COVER (Rear inner side)
(a) Lift up the rear part of the cover.
(b) Pull the cover straight back-wards.

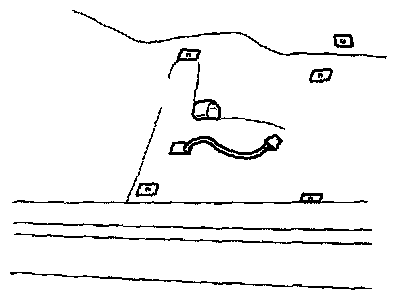

4. REMOVE FRONT SEAT
(a) Remove five bolts.
(b) Disconnect the connector.

INSTALLATION OF FRONT SEAT

1. INSTALL HEADREST TO SEAT

2. INSTALL FRONT SEAT
(a) Connect the connector.
(b) Install five bolts.

Torque: 37 N.m (375 kgf.cm. 27 ft.Ibf)

3. CHECK SEAT ADJUSTER PROPER OPERATION

4. INSTALL SEAT TRACK COVERS
