Power Seat Regulator

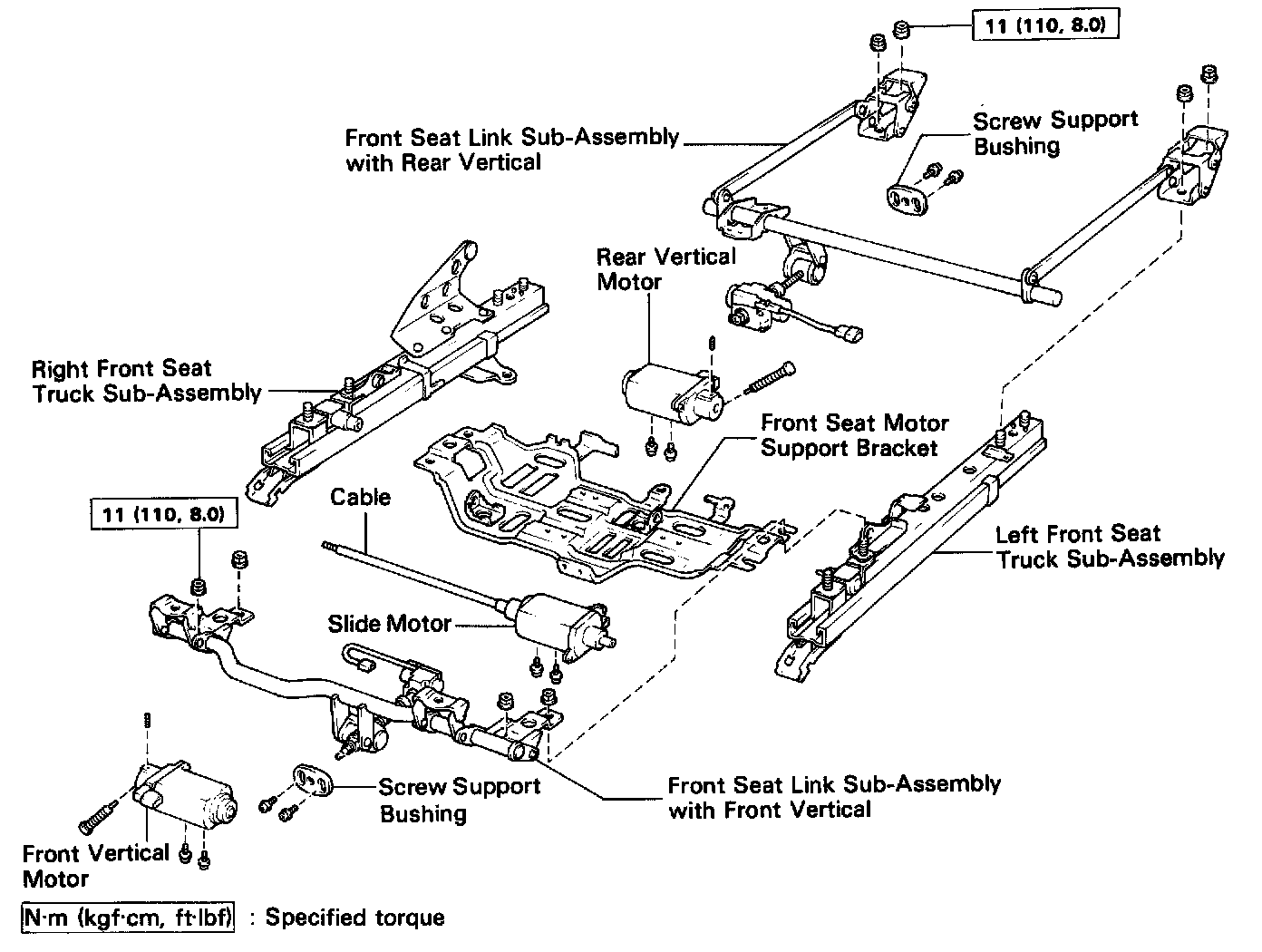

DISASSEMBLY OF POWER SEAT REGULATOR

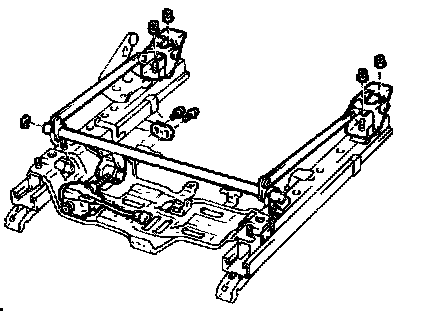

1. REMOVE FRONT AND REAR VERTICAL MOTOR
Remove eight screws and vertical motors.

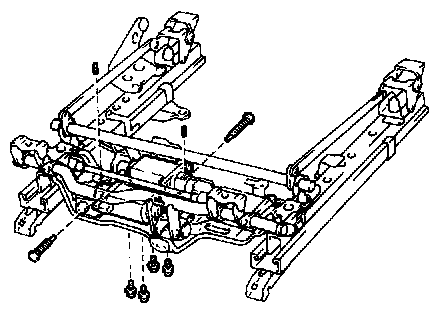

2. REMOVE FRONT SEAT LINK WITH FRONT VERTICAL
(a) Remove two screws and the screw support bushing.
(b) Remove four nuts and the link.

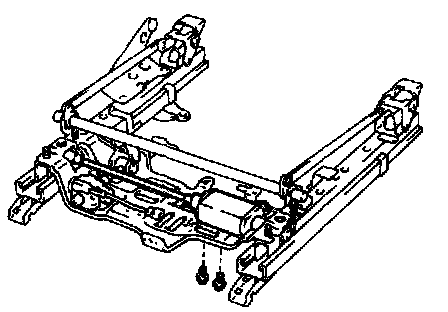

3. REMOVE SLIDE MOTOR
(a) Remove two screws and the motor.
(b) Remove the cable.

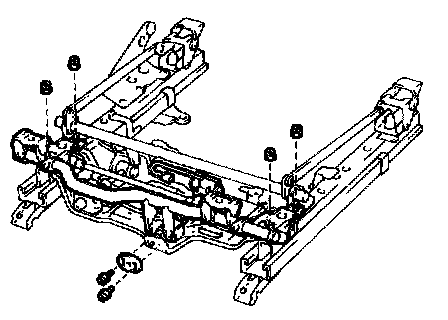

4. REMOVE FRONT SEAT LINK WITH REAR VERTICAL
(a) Remove two screws and the screw support bushing.
(b) Remove snap ring from the link.
(c) Remove four nuts and the link.

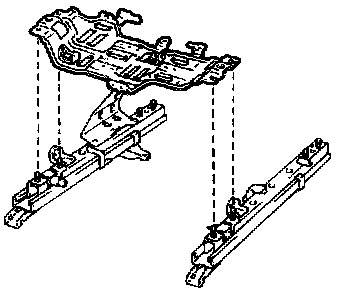

5. REMOVE FRONT SEAT MOTOR SUPPORT BRACKET
Remove the bracket from the front seat truck.

ASSEMBLY OF POWER SEAT REGULATOR

INSTALL SLIDE AND VERTICAL MOTOR
For installation follow the removal procedure in reverse.
