Disassembly and Assembly

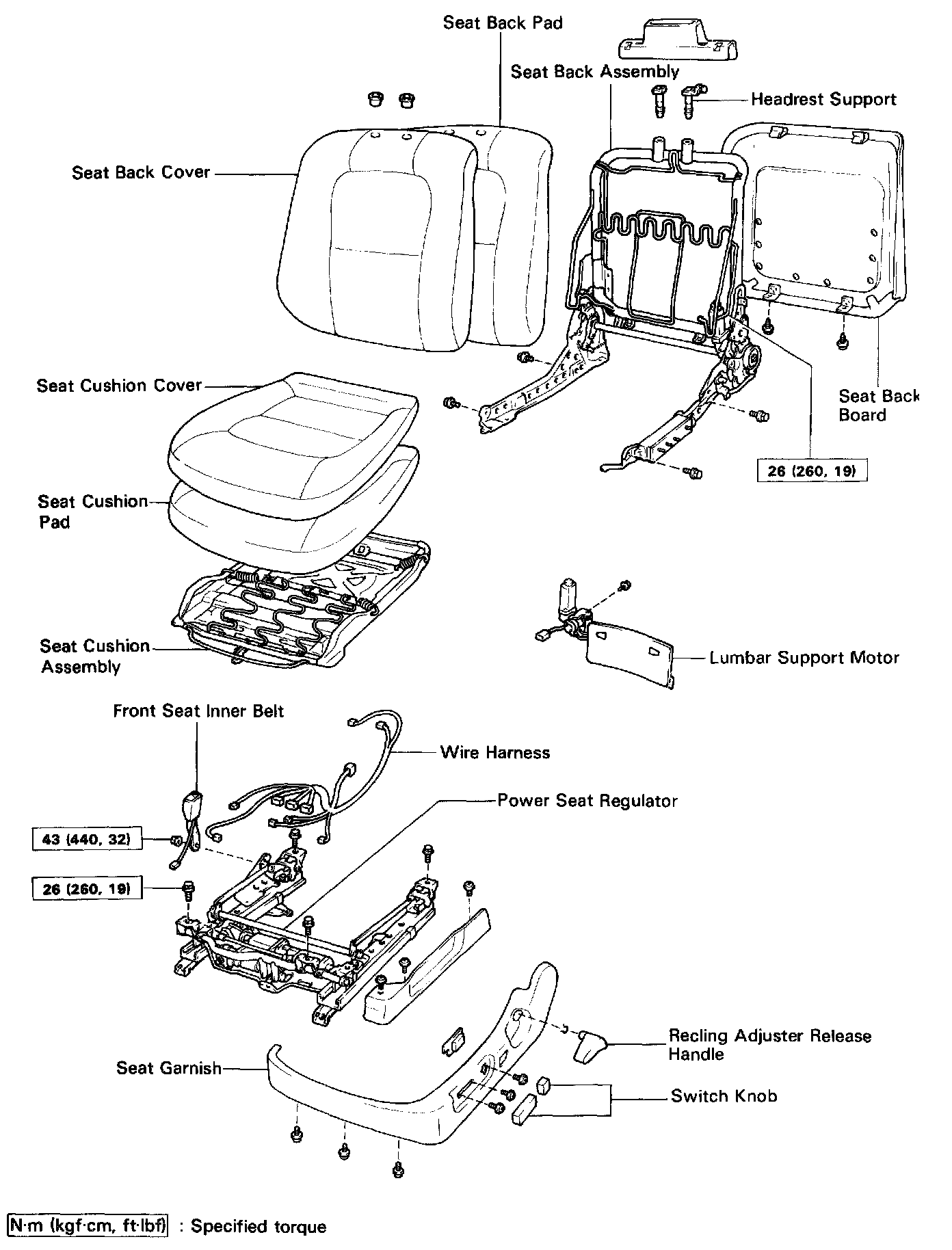

DISASSEMBLY OF FRONT SEAT

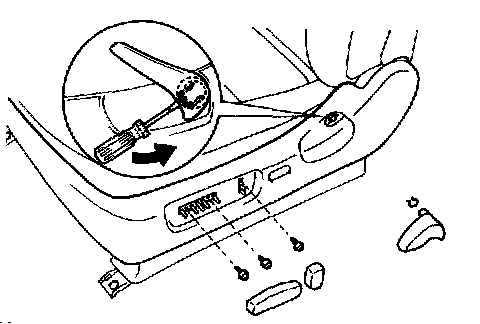

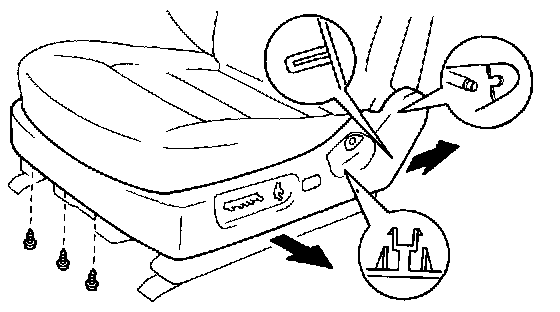

1. REMOVE SEAT GARNISH
(a) Using a screwdriver, pull out the snap ring and remove the handle.
(b) Using a screwdriver, remove two switch knobs.

HINT: Tape the screwdriver tip before use.

(e) Remove the garnish as shown.
(f) Disconnect the connector.

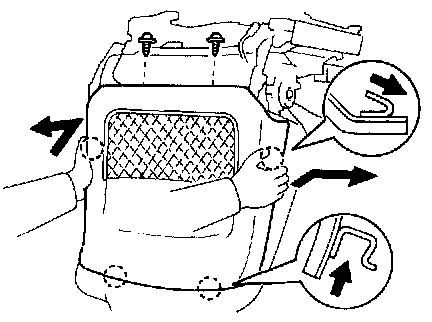

2. REMOVE SEAT BACK BOARD
(a) Remove two screws.
(b) Push the board as shown with your hands.
(c) Slide the board upward to remove it.

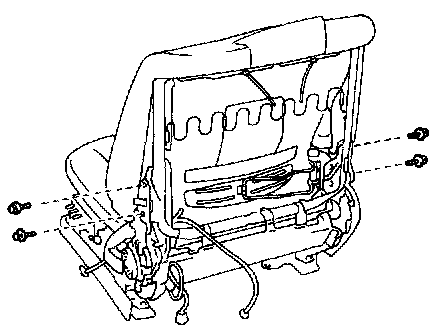

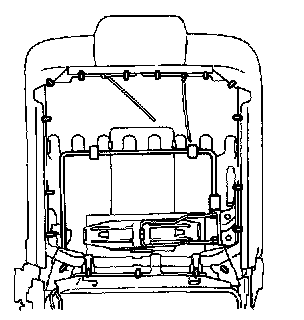

3. REMOVE SEAT BACK ASSEMBLY

(a) Using the screwdriver, remove the hog rings and disconnect the hooks from the seat bank.
(b) Disconnect wire harness clamp.
(c) Disconnect the connector.

(d) Remove four bolts and the seat back assembly.

HINT: Do not damage the wire harness or connectors.

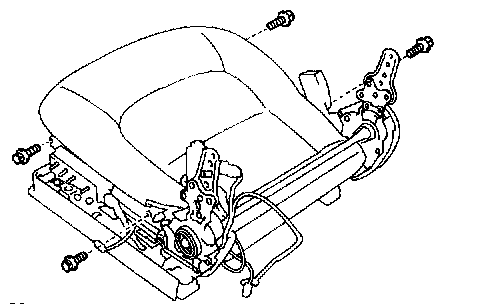

4. REMOVE SEAT CUSHION ASSEMBLY
(a) Remove four bolts.
(b) Disconnect the connectors.
(c) Remove the seat cushion assembly.

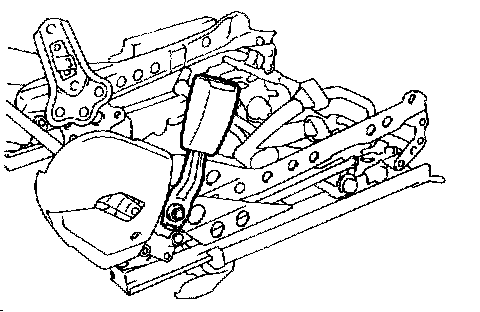

5. REMOVE FRONT SEAT INNER BELT

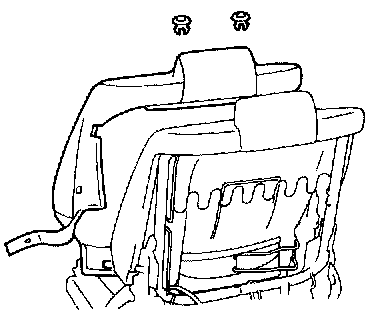

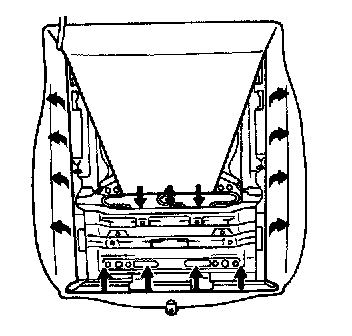

6. REMOVE SEAT BACK COVER
(a) Remove headrest grommet.
(b) Peel the seat back cover away from around the seat back cushion.

7. REMOVE SEAT TRUCK
Remove four bolts and the seat truck.

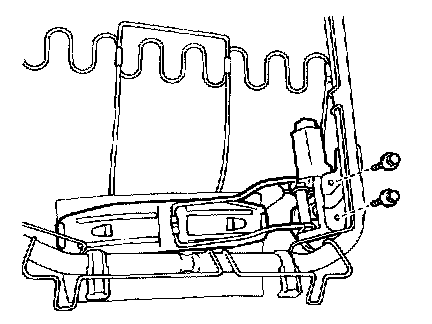

8. REMOVE LUMBER SUPPORT MOTOR
Remove two bolts and the motor.

9. REMOVE SEAT CUSHION COVER
Peel the seat cushion cover away from around the edge of the seat cushion.

ASSEMBLY OF FRONT SEAT
Assemble front seat parts by following disassembly sequence in reverse.

HINT:

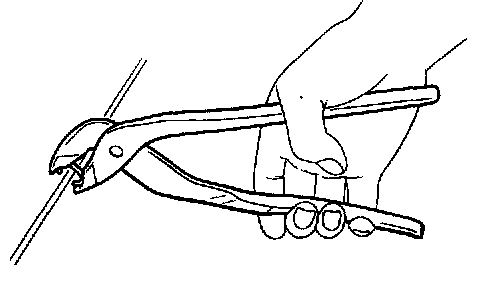

- Using hog ring pliers, install the new hog ring
- Before installing the reclining adjuster, align the matchmarks.
- If creases occur in the front seat, stretch out the creases by heating them with a dryer, etc.
If the creases still cannot be removed, spray them lightly with a vaporizer before applying the hair dry again.
