Luggage Compartment Lock Assembly - Modified

91lexus04

BODY

031

NOVEMBER 22, 1991

SC400


Title LUGGAGE COMPARTMENT LOCK ASSEMBLY

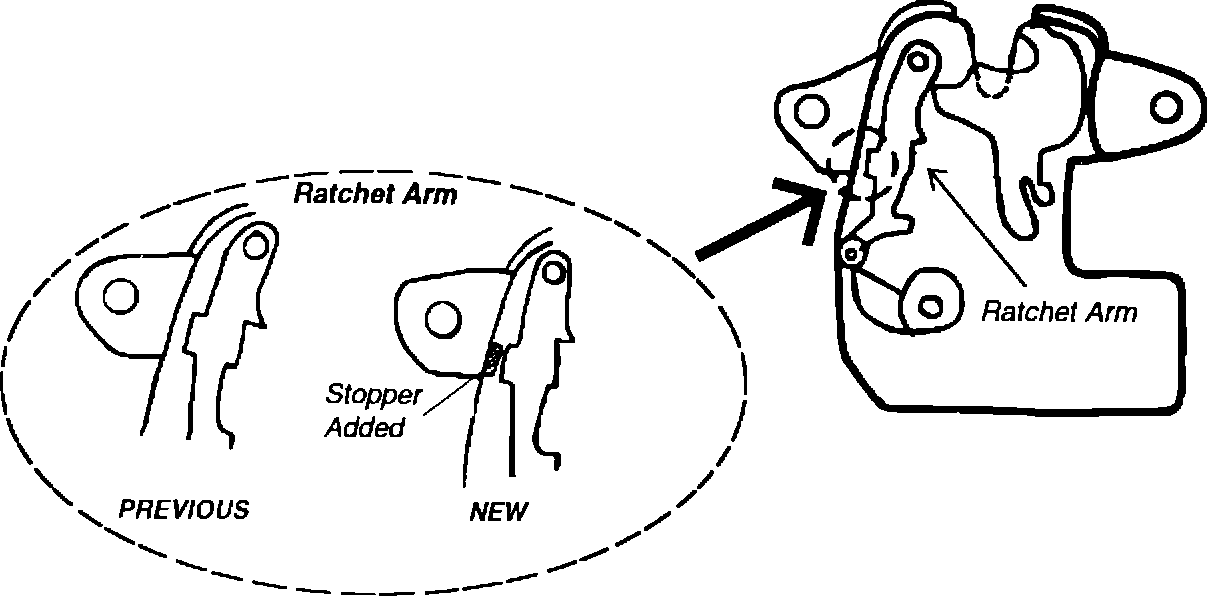

For improved operating smoothness and closing retention, the luggage compartment lock assembly has been changed as follows:

1. Shape of base bracket revised.

2. Stopper added to base bracket to prevent over-travel of internal ratchet roller.


PRODUCTION EFFECTIVE:

From: May, 1991
VIN: JT8UZ # # N0002636


PART NUMBER INFORMATION:

New Part No. Prev. Part No. Part Name

64600-24010 Same Luggage compartment lock assy.
