Removal and Installation

REMOVAL OF LUGGAGE COMPARTMENT DOOR

1. REMOVE FOLLOWING PARTS:
(a) Floor mat
(b) Door striker cover
(c) Trim rear cover
(d) RH and LH side covers
(e) Trim front cover
(f) Door trim

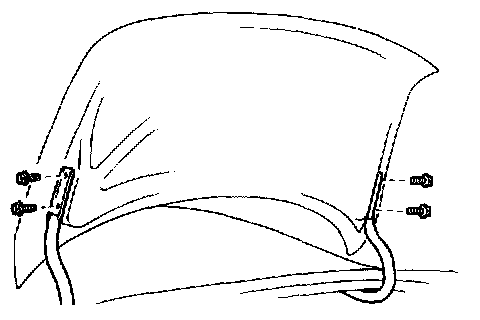

2. REMOVE LUGGAGE COMPARTMENT DOOR
Remove four bolts and the door.

REPLACEMENT OF LUGGAGE COMPARTMENT DOOR HINGE

1. REMOVE FOLLOWING PARTS:
(a) Rear seat cushion and back.
(b) Roof side inner garnish.
(c) Package tray trim.

2. REMOVE LUGGAGE COMPARTMENT DOOR HINGE





(a) Remove the hinge pin.

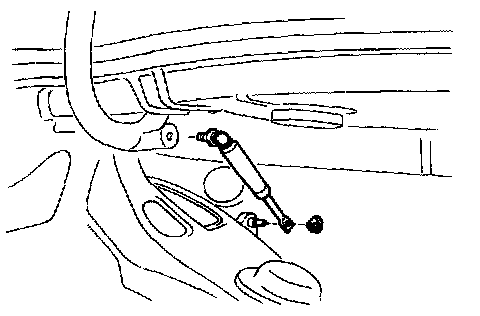

(b) Remove the clip, loosen the bolt disconnect the door support.
(c) Remove the door support.

3. IF NECESSARY, REPLACE DOOR SUPPORT

INSTALLATION OF LUGGAGE COMPARTMENT DOOR
Install luggage compartment door parts by following removal sequence in reverse.
