Trunk / Liftgate: Adjustments

LUGGAGE COMPARTMENT

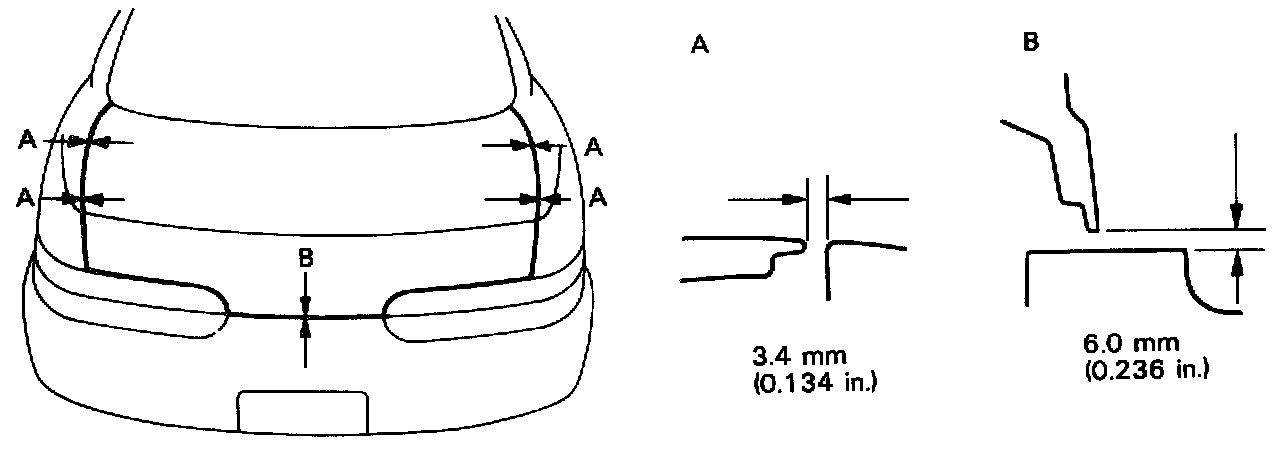

Fitting Adjustments

HINT: Adjust the door panel according to the following method.





1. ADJUST LUGGAGE COMPARTMENT

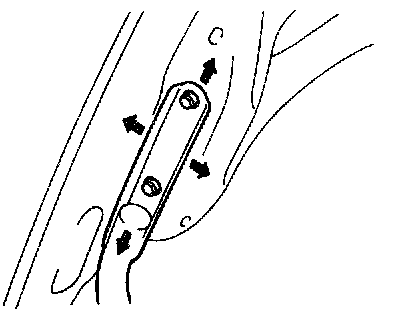

(a) For forward/rearward and vertical direction adjustments loosen the bolts.
(b) For left and right adjustment of front end of the door, increase or decrease the number of washers between the hinge and the door.

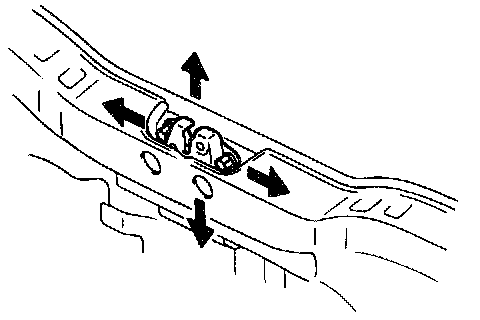

2. ADJUST LOCK STRIKER
(a) Remove the trim rear cover.
(b) Using a hammer and brass bar, tap the door lock to adjust it.
