Home >> Lexus >> 1992 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 26

DTC 26

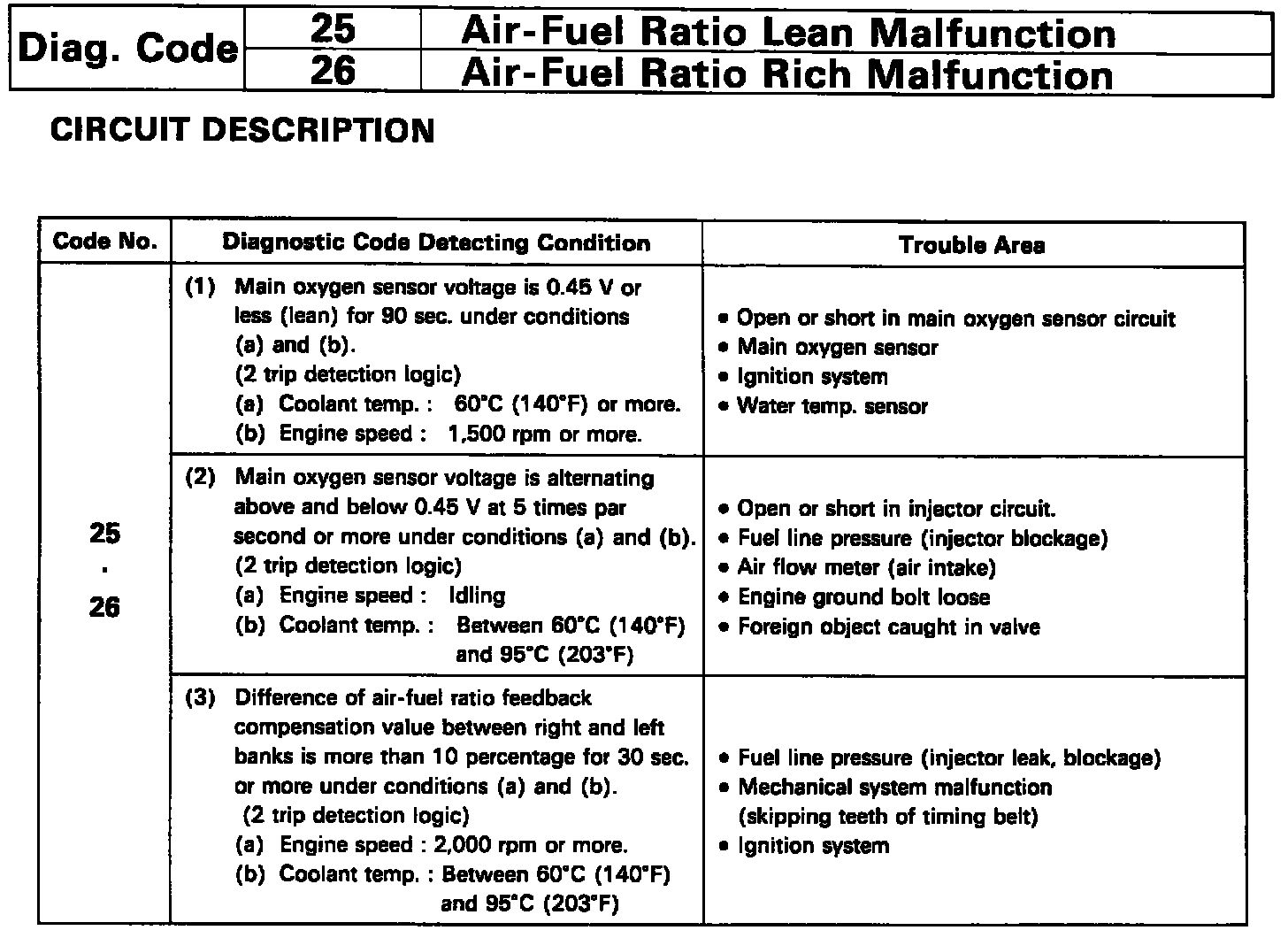

Circuit Description Part 1:

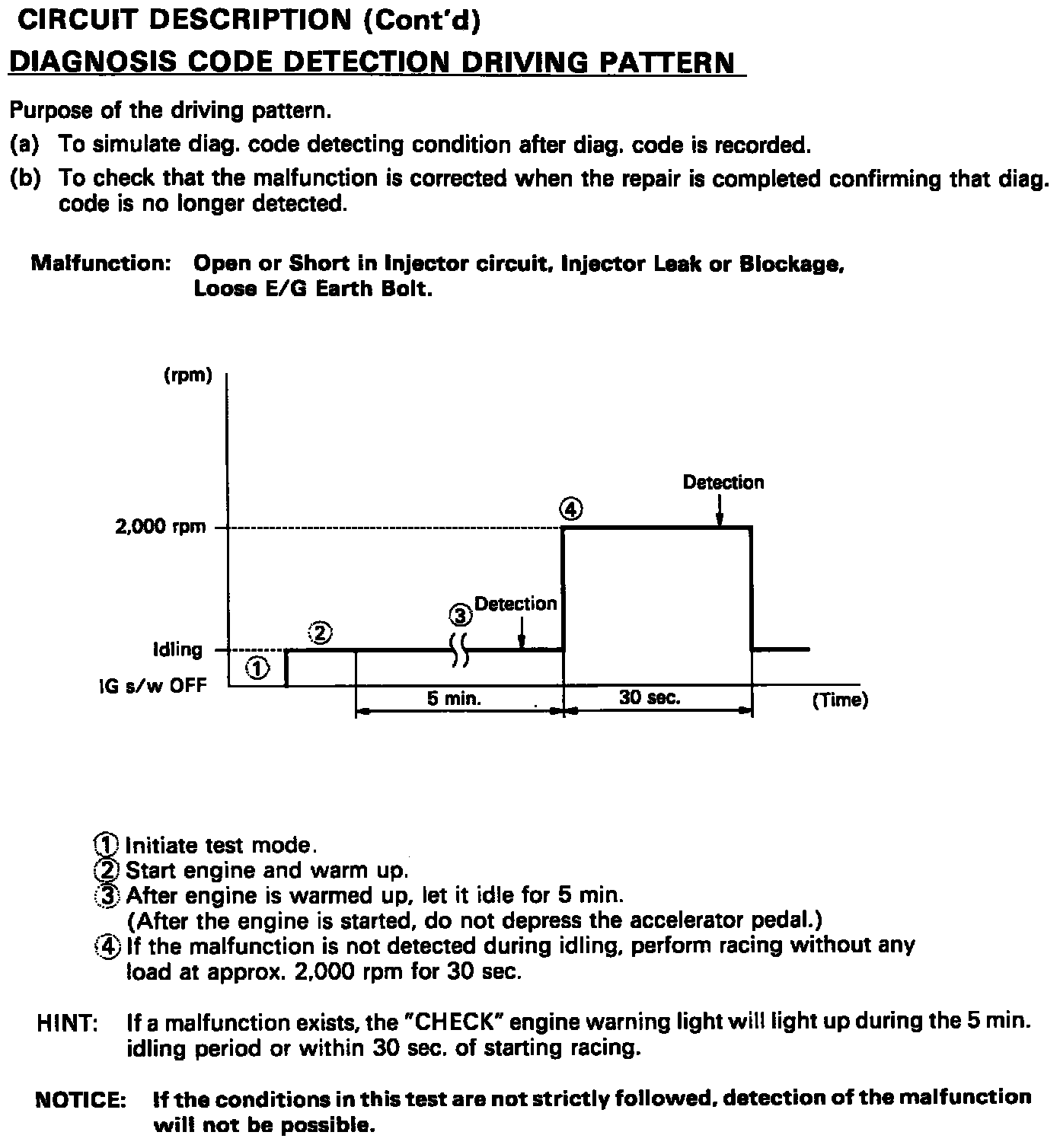

Circuit Description Part 2:

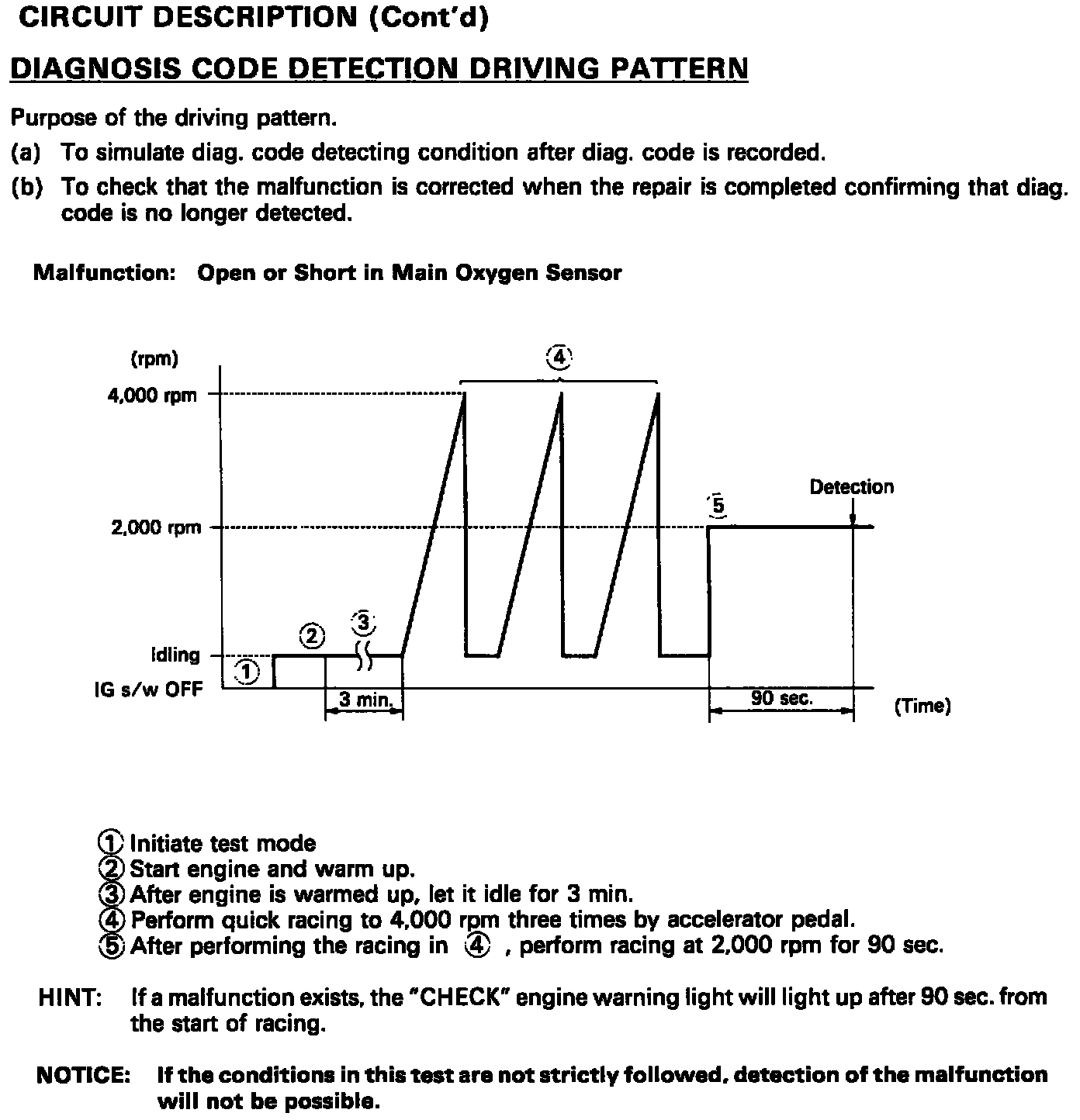

Circuit Description Part 3:

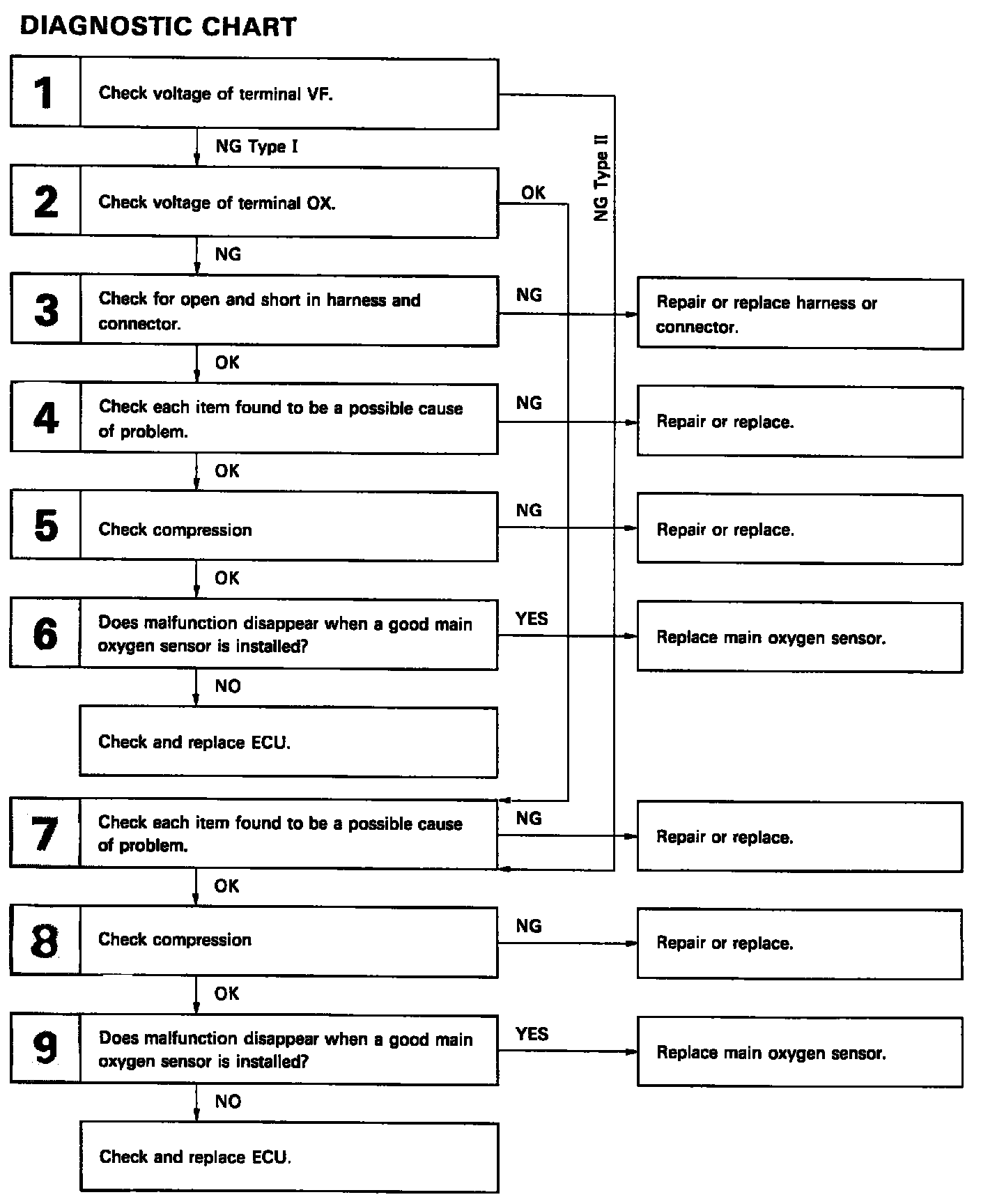

Diagnostic Chart:

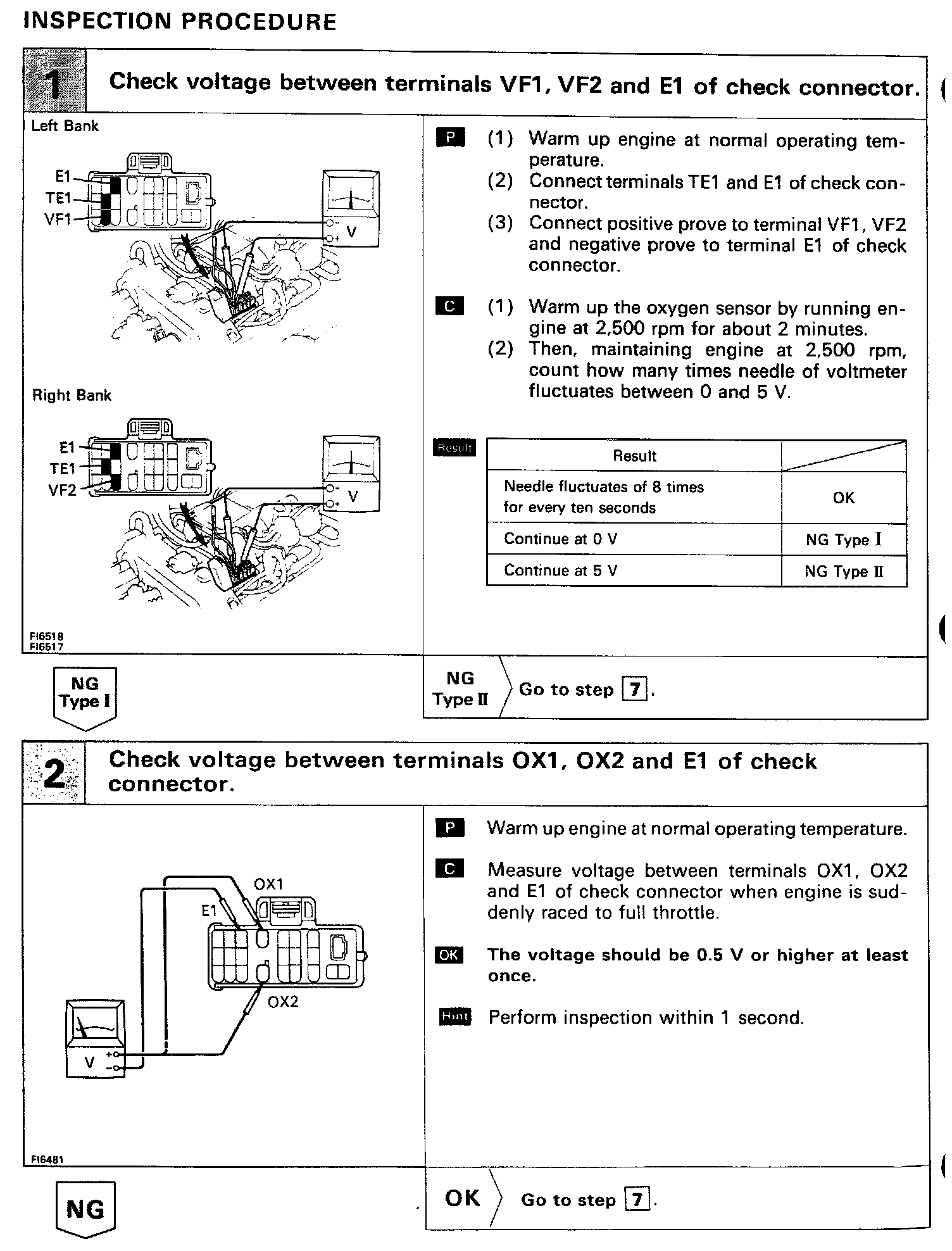

Inspection Procedure Part 1:



Inspection Procedure Part 2:



Inspection Procedure Part 3:
