SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Troubleshooting
Troubleshooting

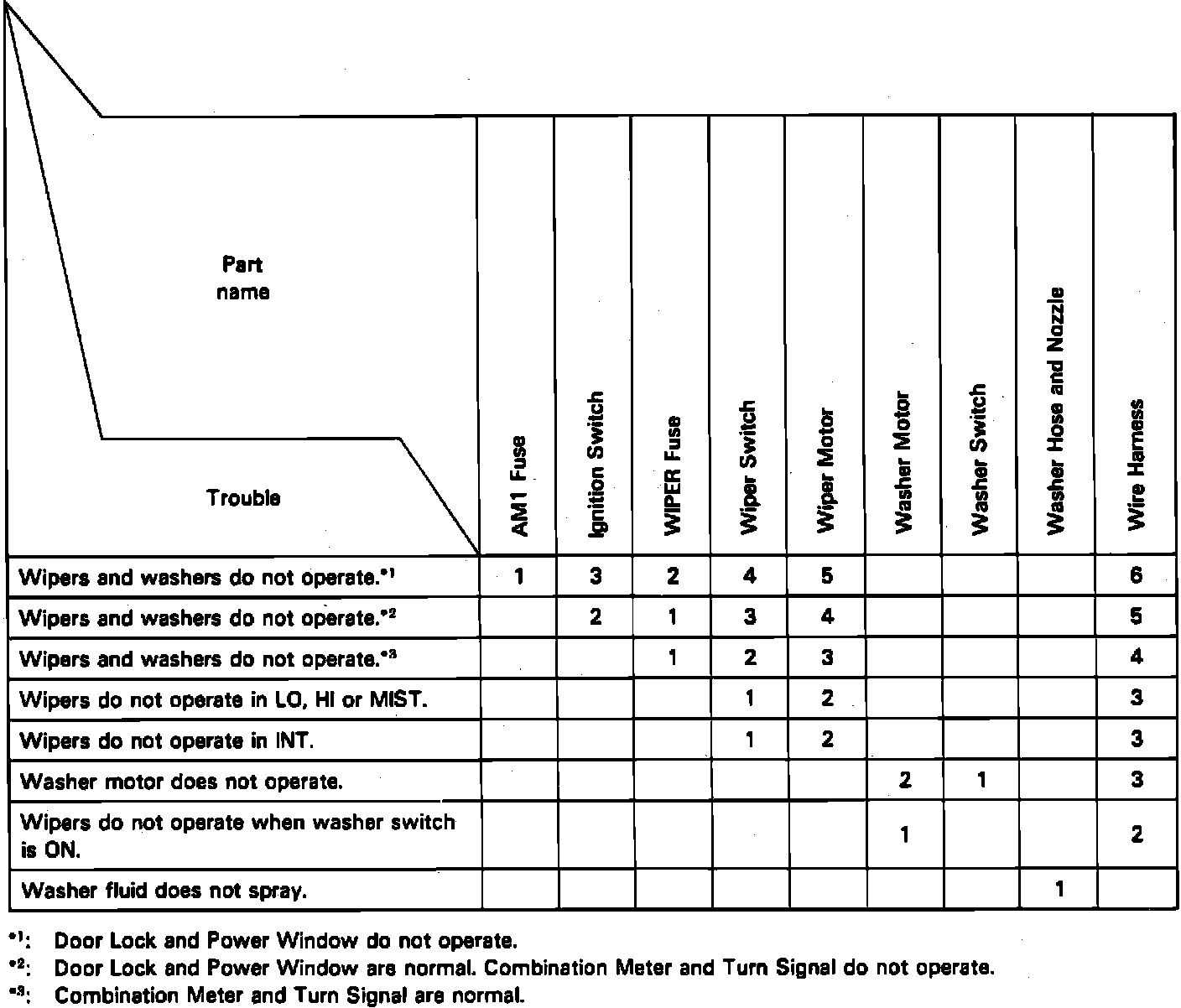

Fig. 28 Troubleshooting Chart:
Refer to
Fig. 28
for any assistance in diagnosis of wiper system malfunctions.
