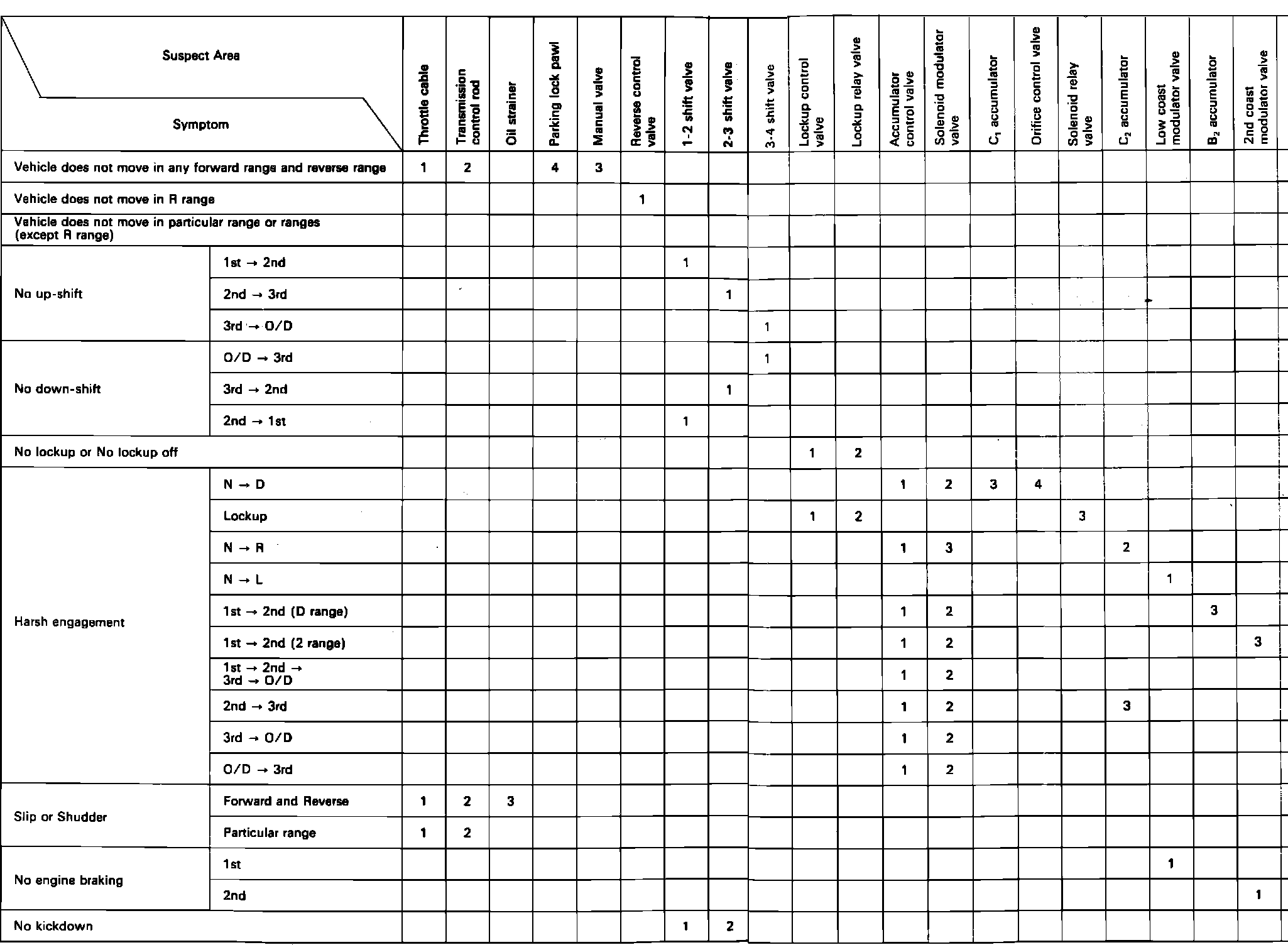

|�Fig. 6 On-vehicle Repair Matrix Chart:

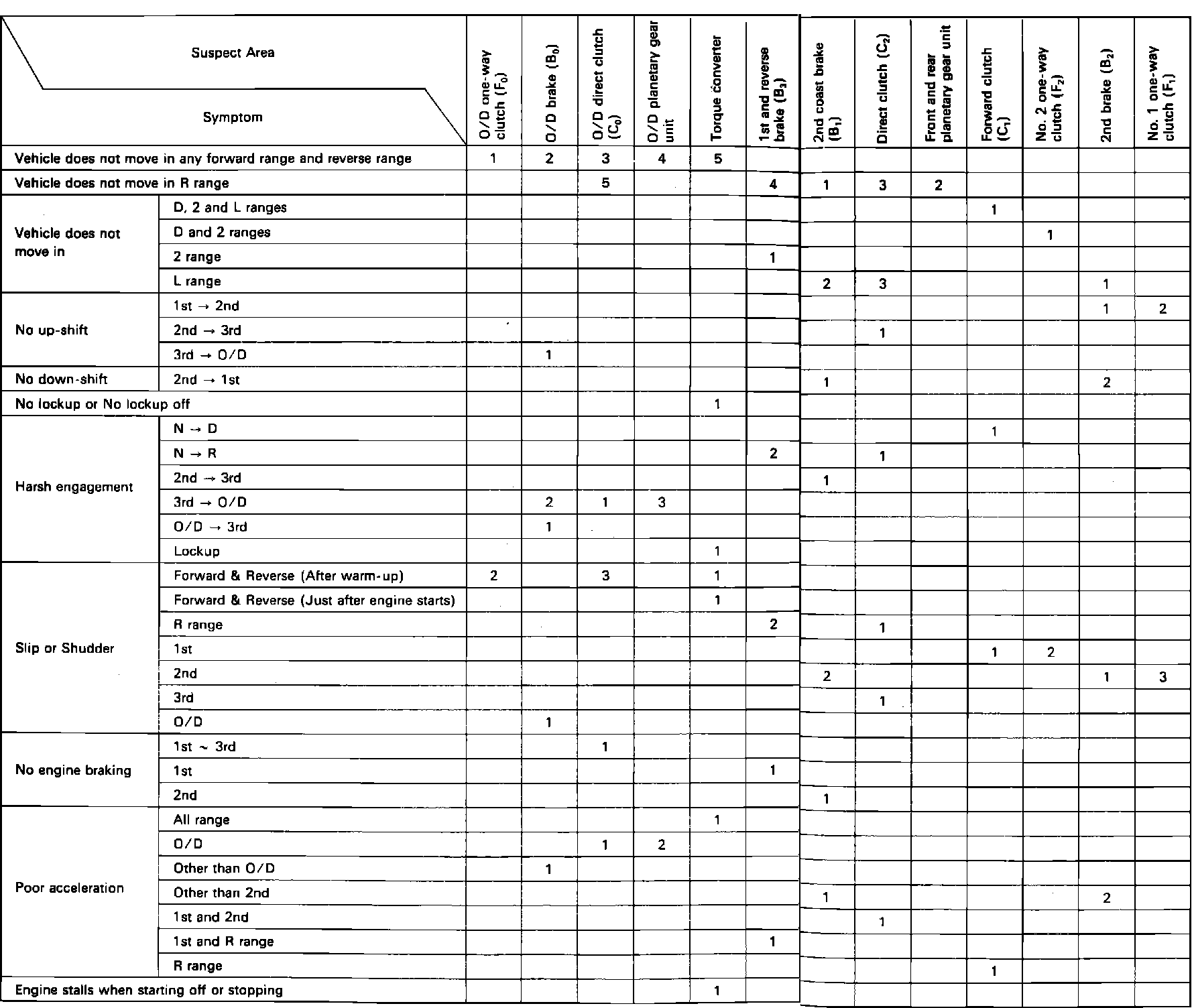

Fig. 7 Off-vehicle Repair Matrix Chart:

When trying to locate transmission functional problems with the transmission still in the vehicle, use the charts in Fig. 6 to help locate the cause. When trying to locate transmission functional problems with the transmission removed from the vehicle, use the chart in Fig. 7 to help locate the cause. The numbers in the chart coincide with the most likely cause of the trouble. Therefore, No. 1 is more likely to cause a problem than No. 9.
