Electronic Circuit

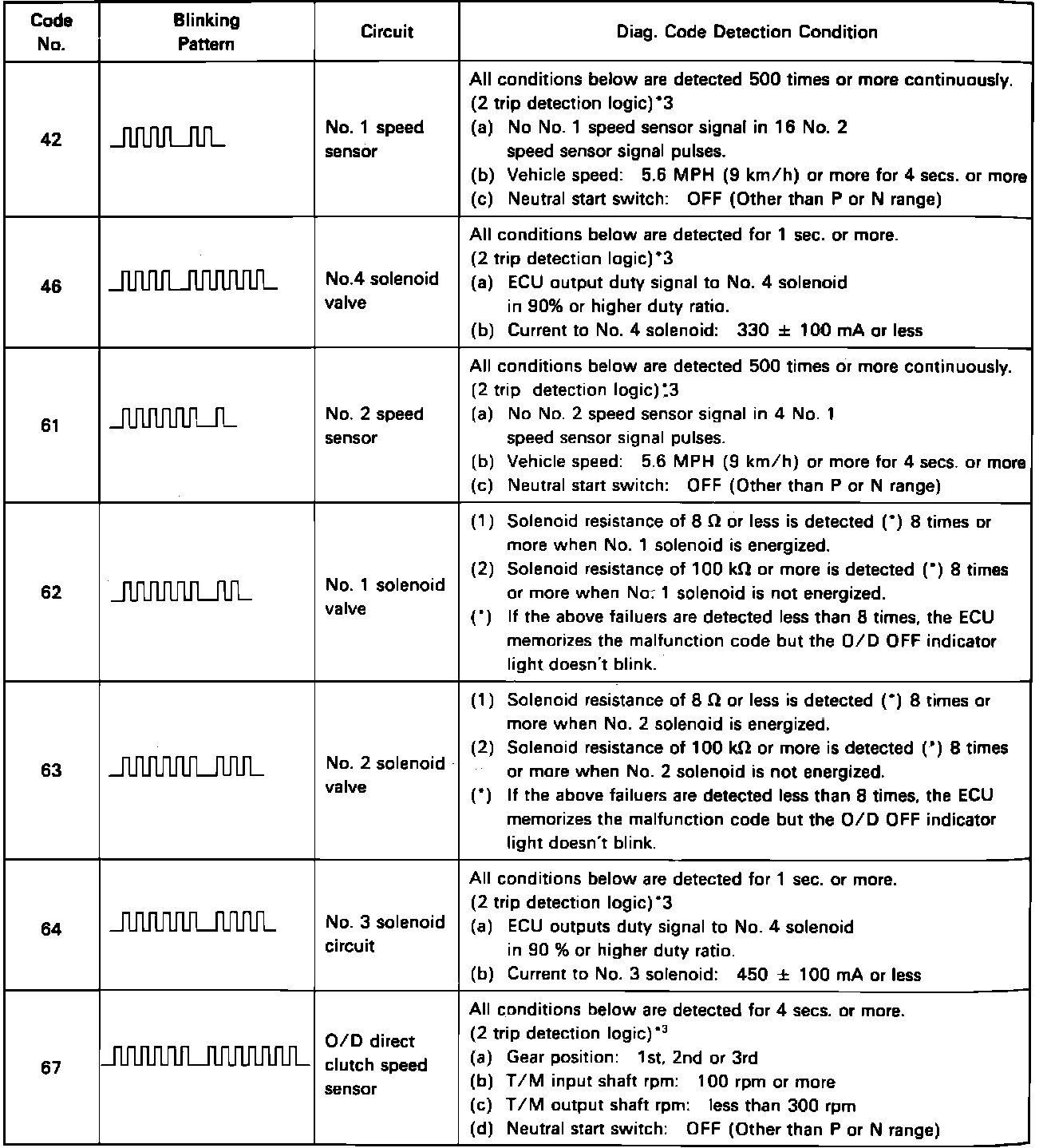

Fig. 1 Diagnostic Code Chart:

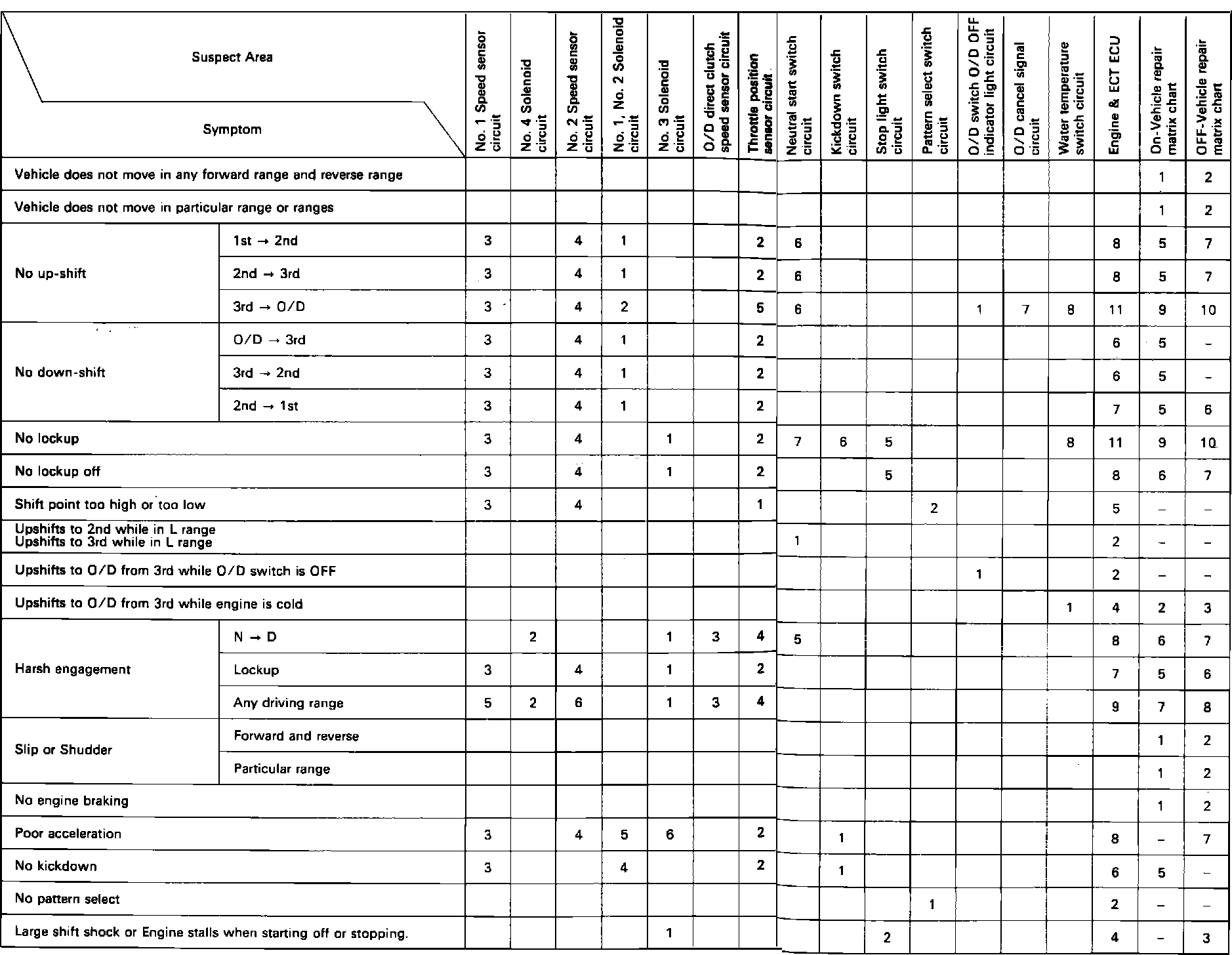

Fig. 4 Electrical Circuit Troubleshooting Matrix Chart:

Refer to diagnostic code charts in Fig. 1 and electrical circuit troubleshooting matrix charts, Fig. 4 to assist in locating any malfunctions in the electrical circuit. The numbers in the matrix charts coincide with the most likely cause of the trouble. Therefore, No. 1 is more likely to cause a problem than No. 9.
