Home >> Lexus >> 1992 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection >> Switch Circuit

Switch Circuit

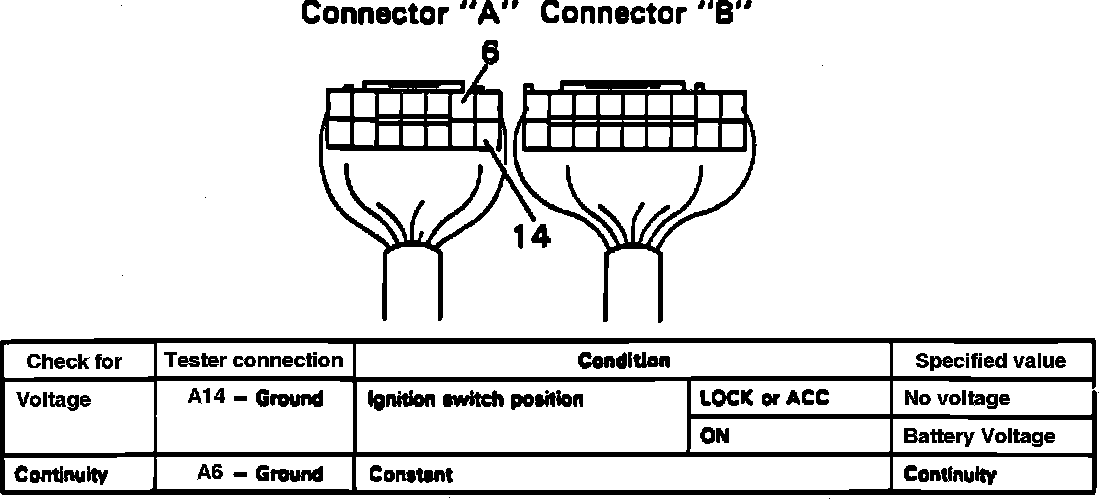

Fig. 16 Wiper Switch Circuit Test Chart:






Disconnect switch and wiper relay connector, then test each connector on wire harness side as shown in Fig. 16.
