TC Terminal Circuit

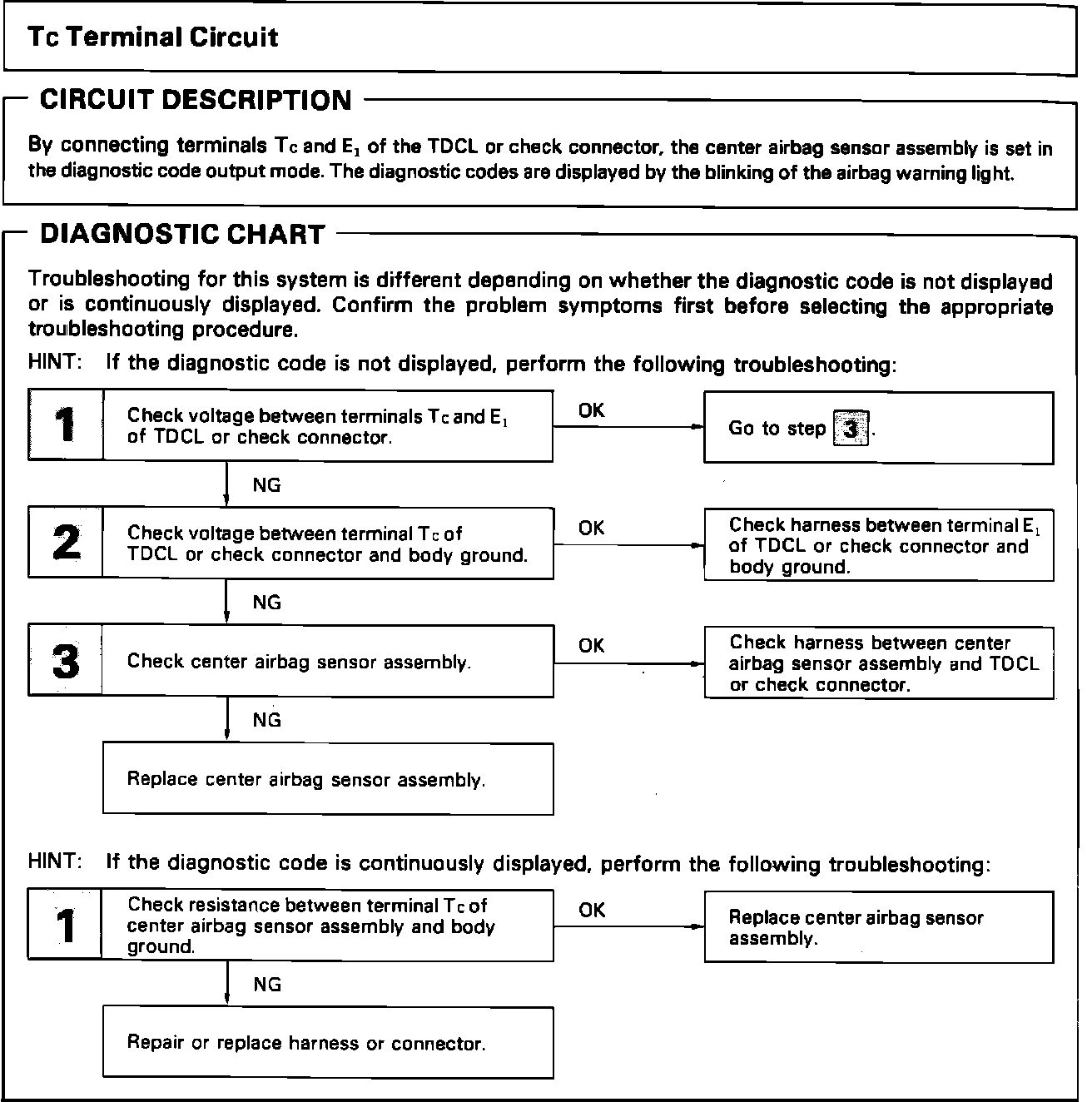

Fig. 33 Tc Terminal Circuit Diagnostics (Part 1 Of 4):

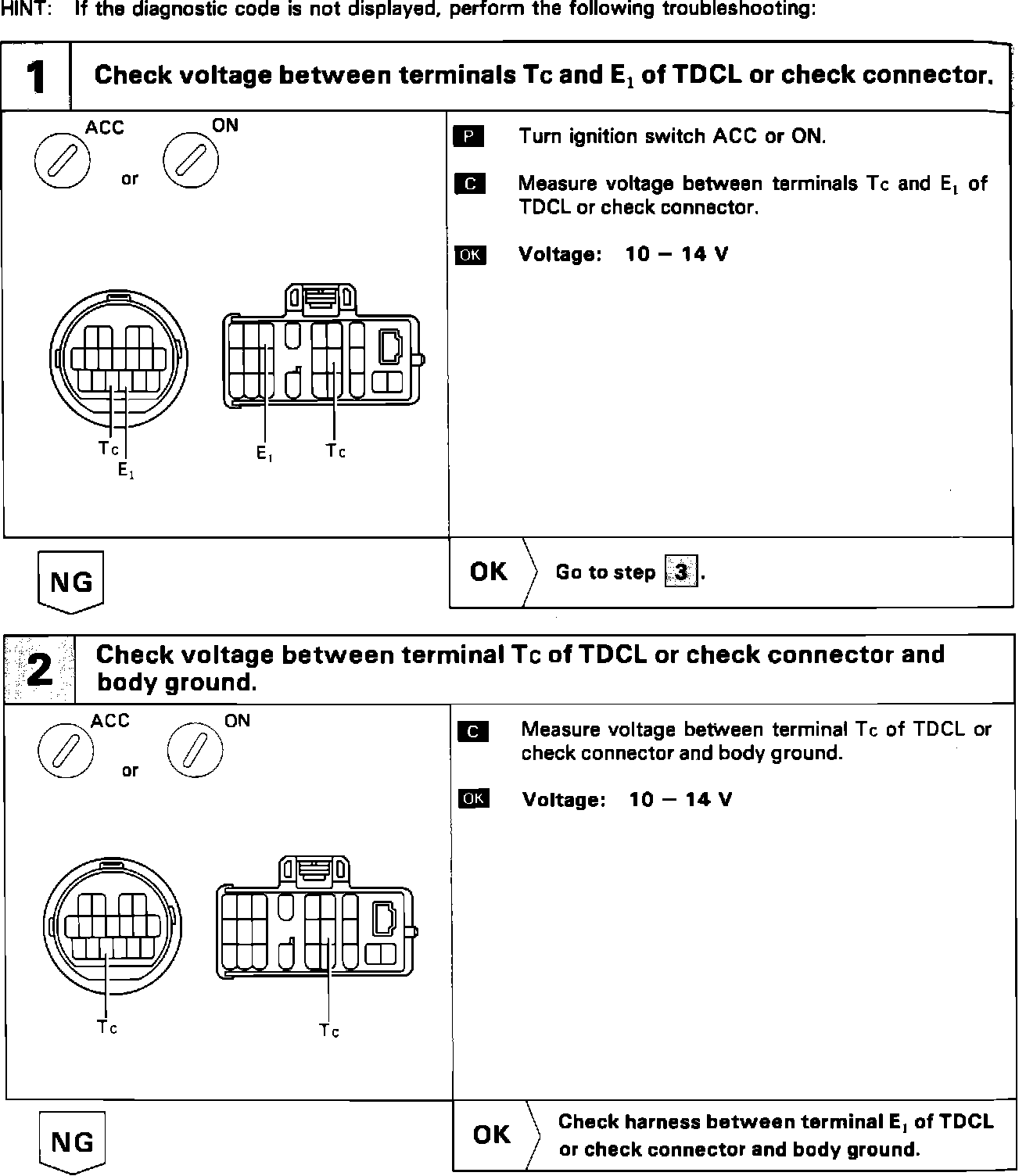

Fig. 33 Tc Terminal Circuit Diagnostics (Part 2 Of 4):

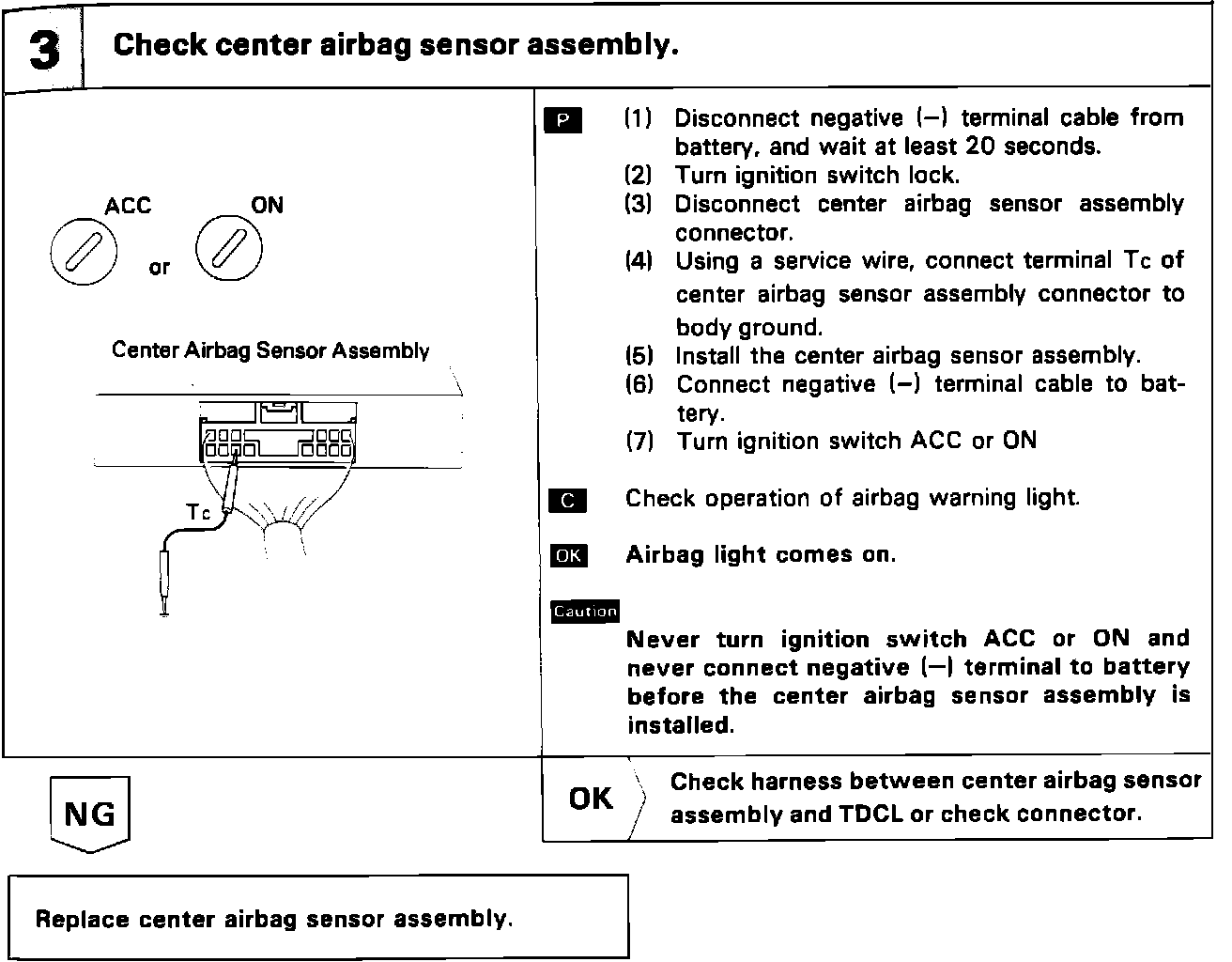

Fig. 33 Tc Terminal Circuit Diagnostics (Part 3 Of 4):

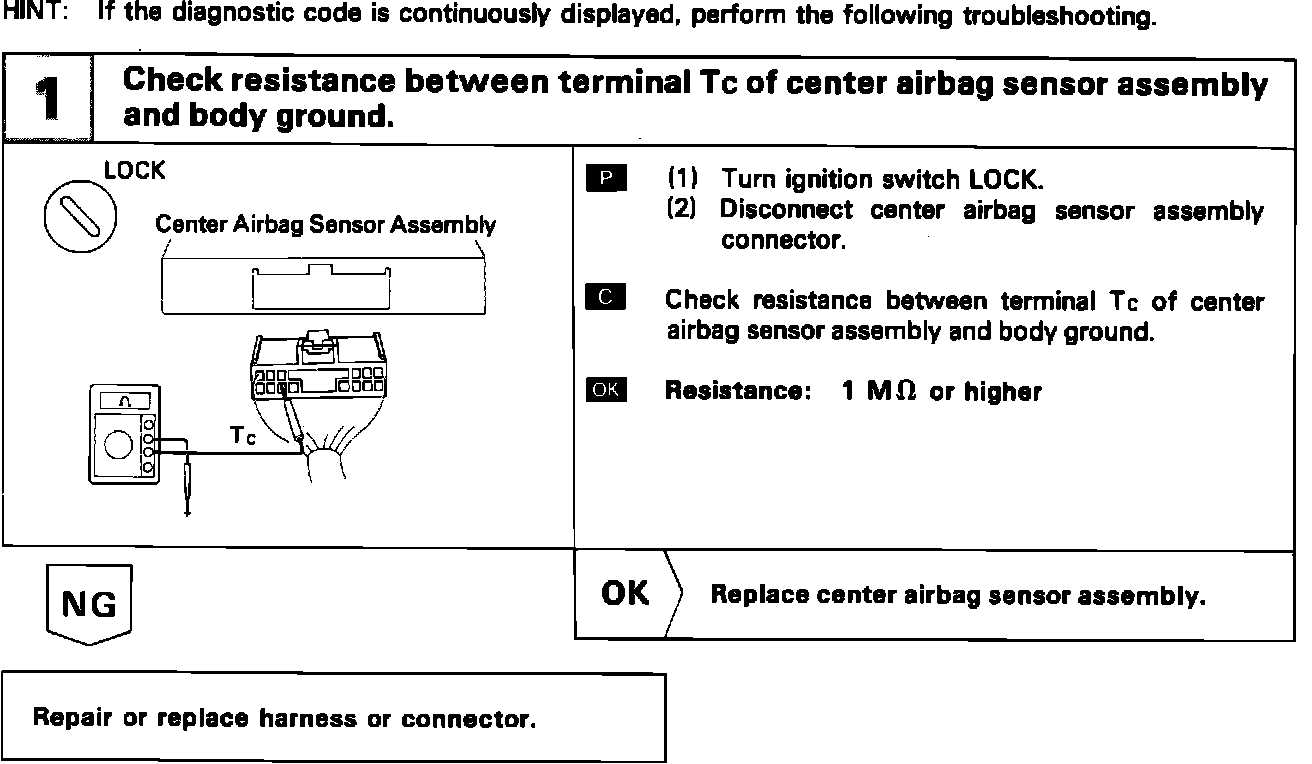

Fig. 33 Tc Terminal Circuit Diagnostics (Part 4 Of 4):

Refer to Fig. 33 when diagnostic codes are not displayed or are always displayed.
