Lexus
>>
1992
>>
SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>

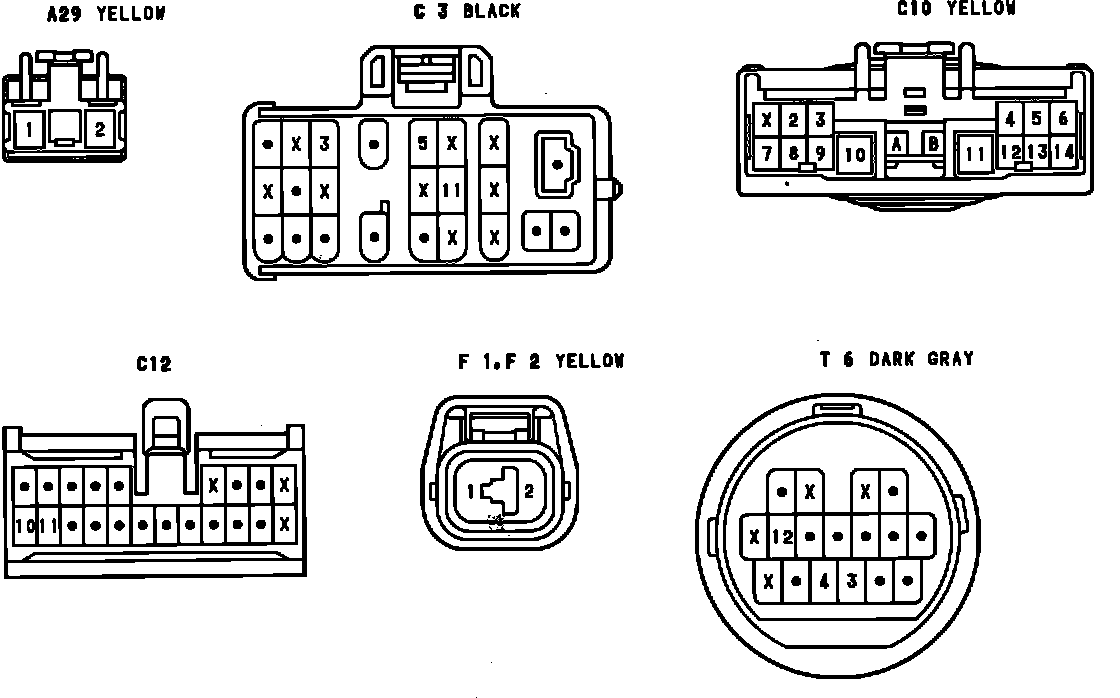

Connector Views
Connector Views
Fig. 7 Center Sensor Connector Locations:

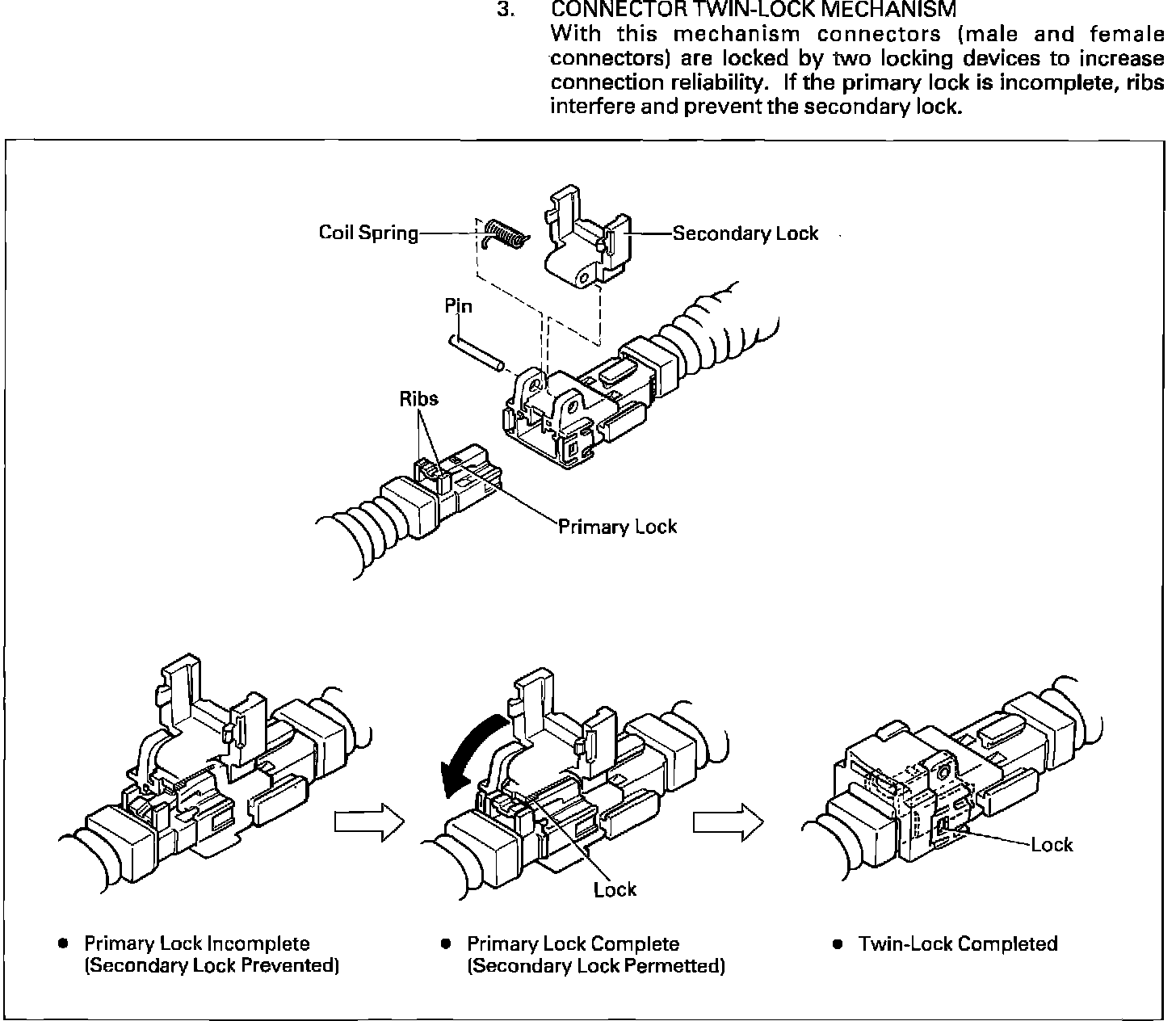

Airbag Connector Mechanisms:
Airbag Connector Mechanisms:

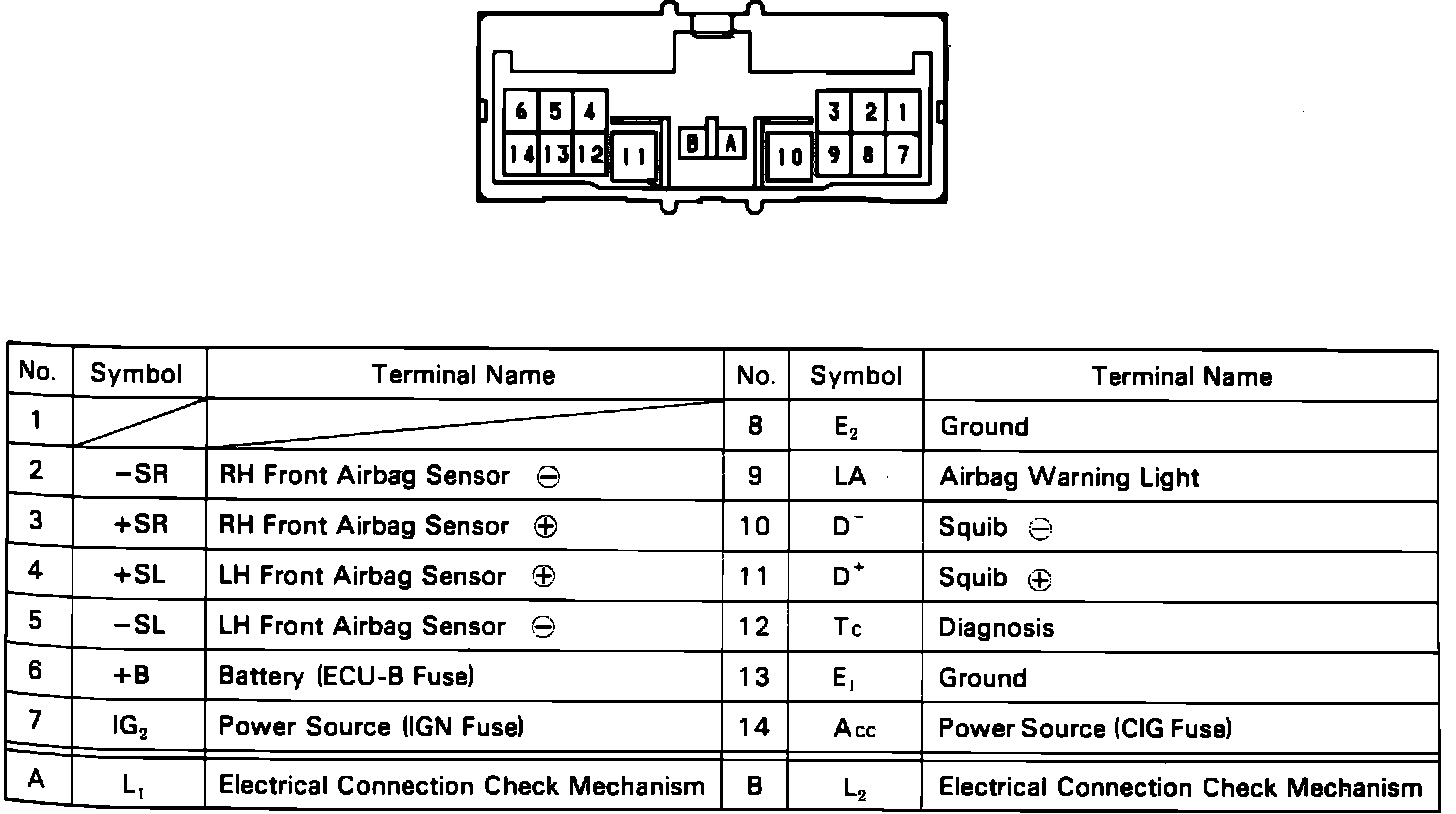

Connector ID And Pin Locations:
