Relay Operation Test

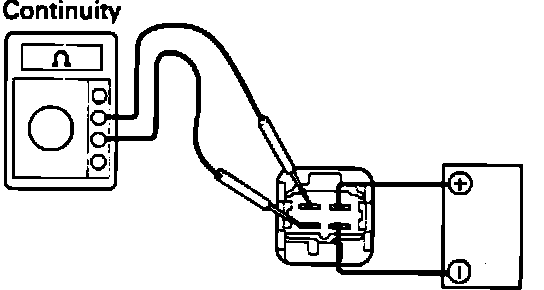

Fig. 6 Relay operation test connection locations:

1. Apply battery voltage across terminals 1 and 3, Fig 6.
2. Using an ohmmeter, ensure there is continuity across terminals 2 and 4.
3. If no continuity exists, replace relay.
