Install the Terminal to the Female Connector Body.





6. INSTALL THE TERMINAL TO THE FEMALE CONNECTOR BODY.

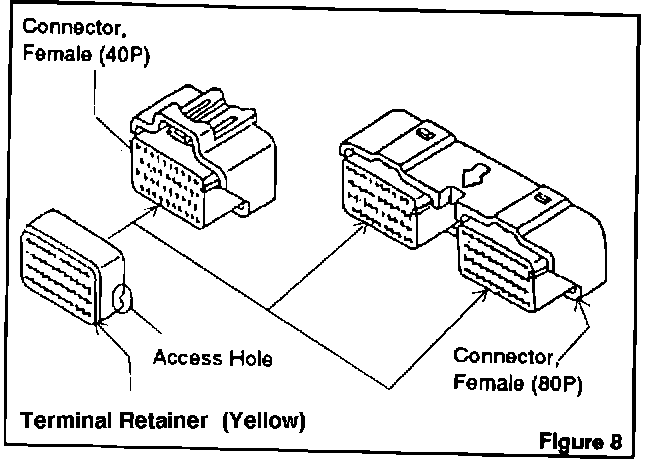

a) Insert the terminal retainer and push to the full lock position (see Figure 8).
