Disconnect the Male and Female Connector

2. DISCONNECT THE MALE AND FEMALE CONNECTOR

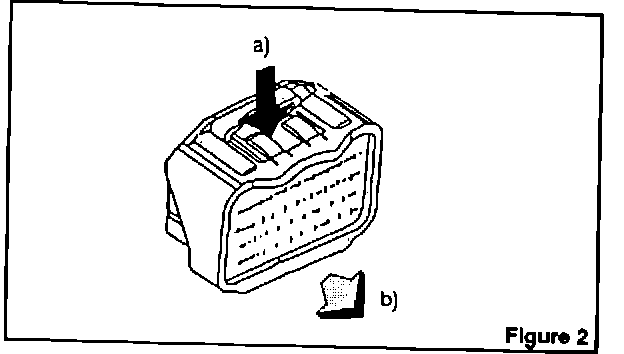

^ For 40P Connector (Figure 2):

a) Press down locking arm on the female connector body.

b) Pull the female connector forward.

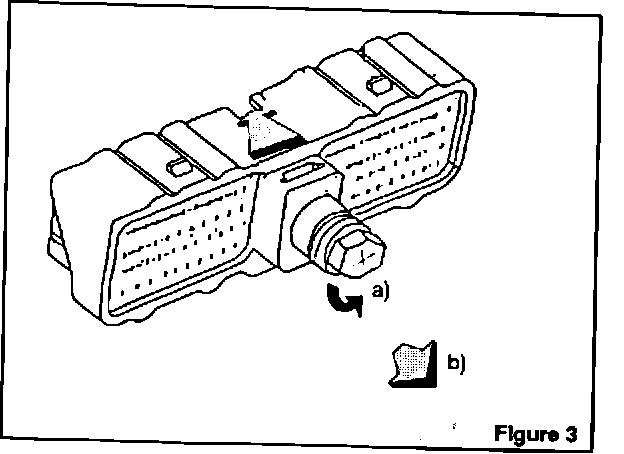

^ For 80P (fixed bolt) connector (Figure 3):

a) Loosen and remove bolt.

b) Pull female connector forward.
