Gas Leak Inspection

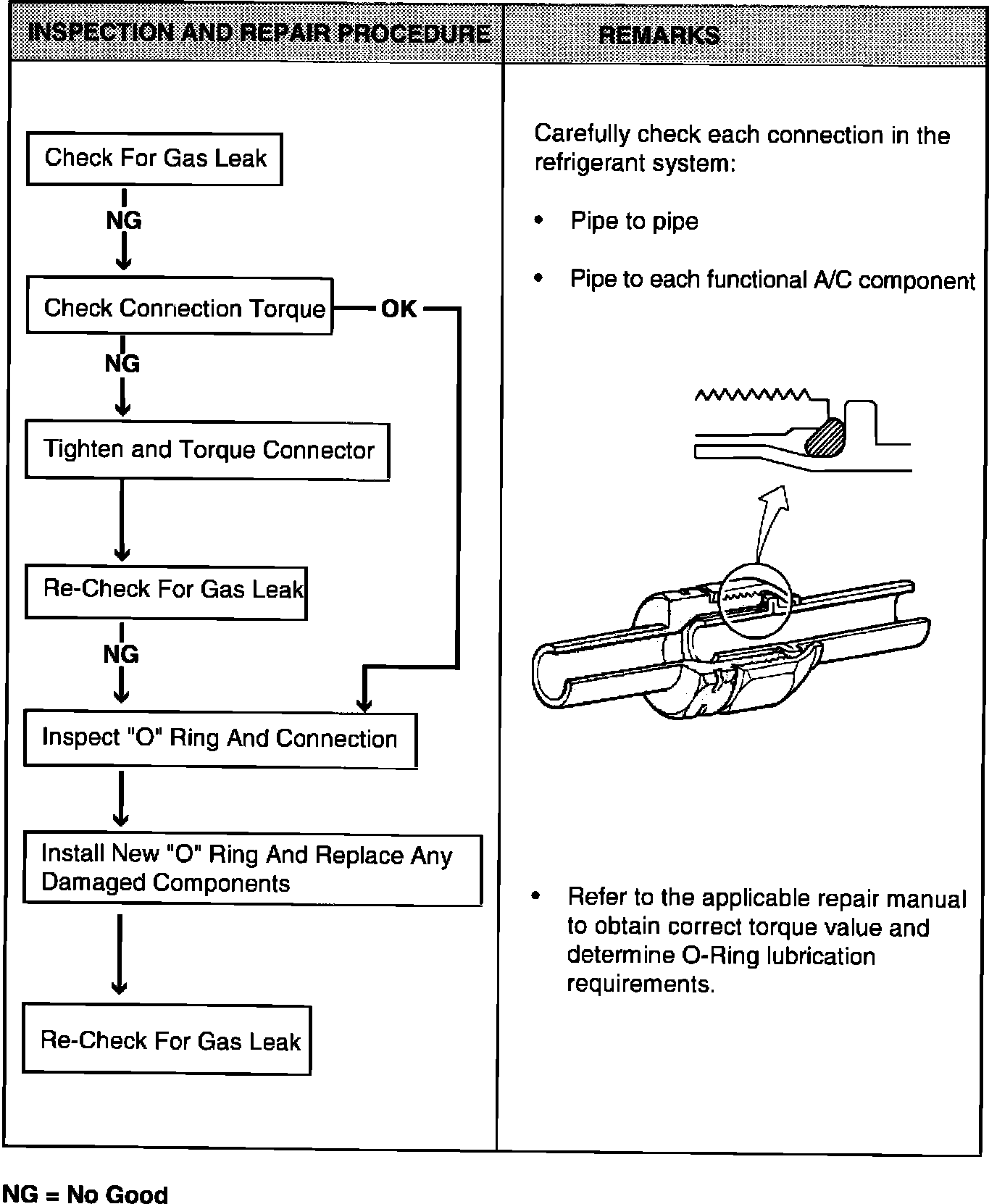

INSPECTION AND REPAIR FLOW CHART: A/C LINES (PAGE 5)

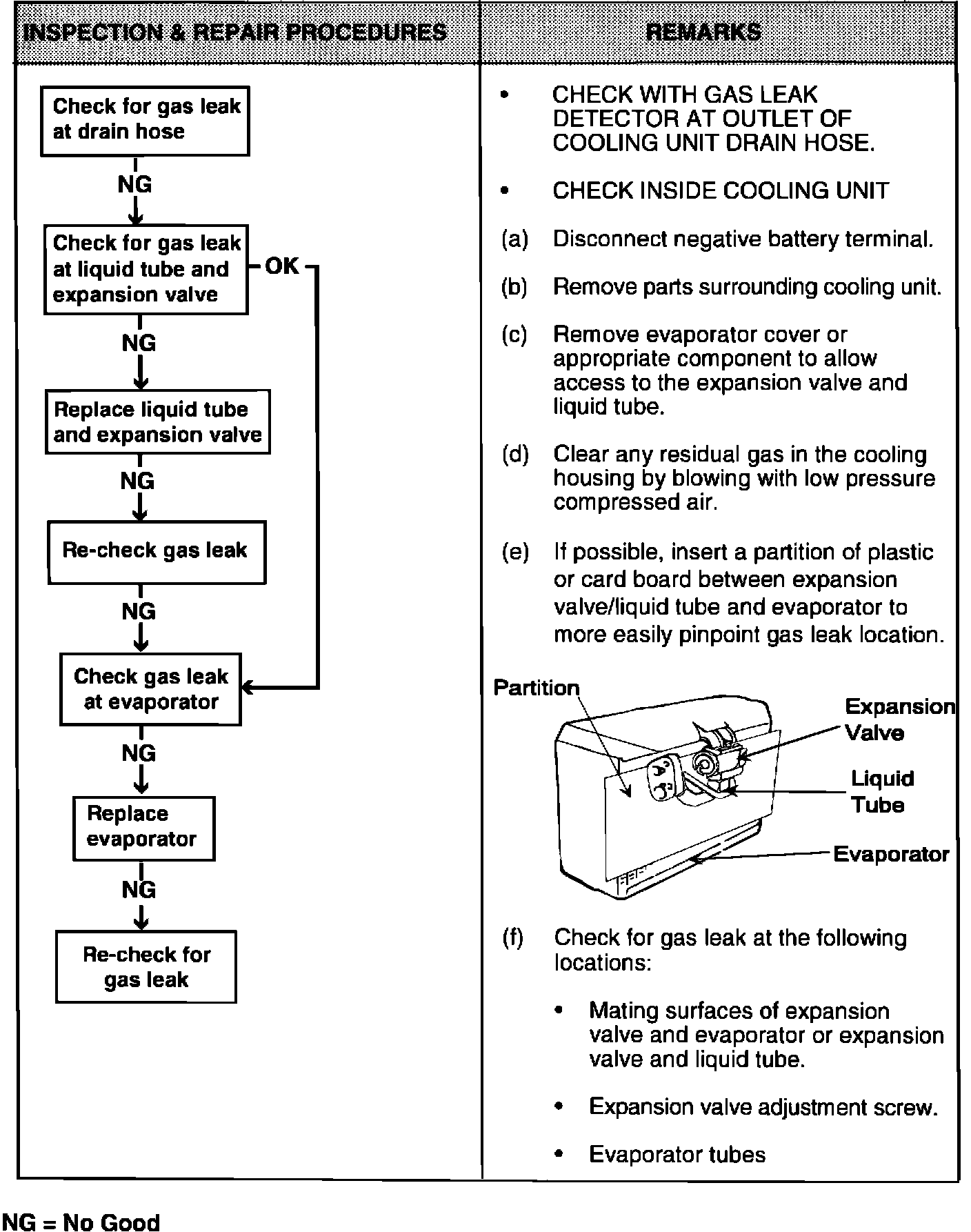

INSPECTION AND REPAIR CHART: DRAIN HOSE, LIQUID TUBE, EXPANSION VALVE AND EVAPORATOR (PAGE 6)

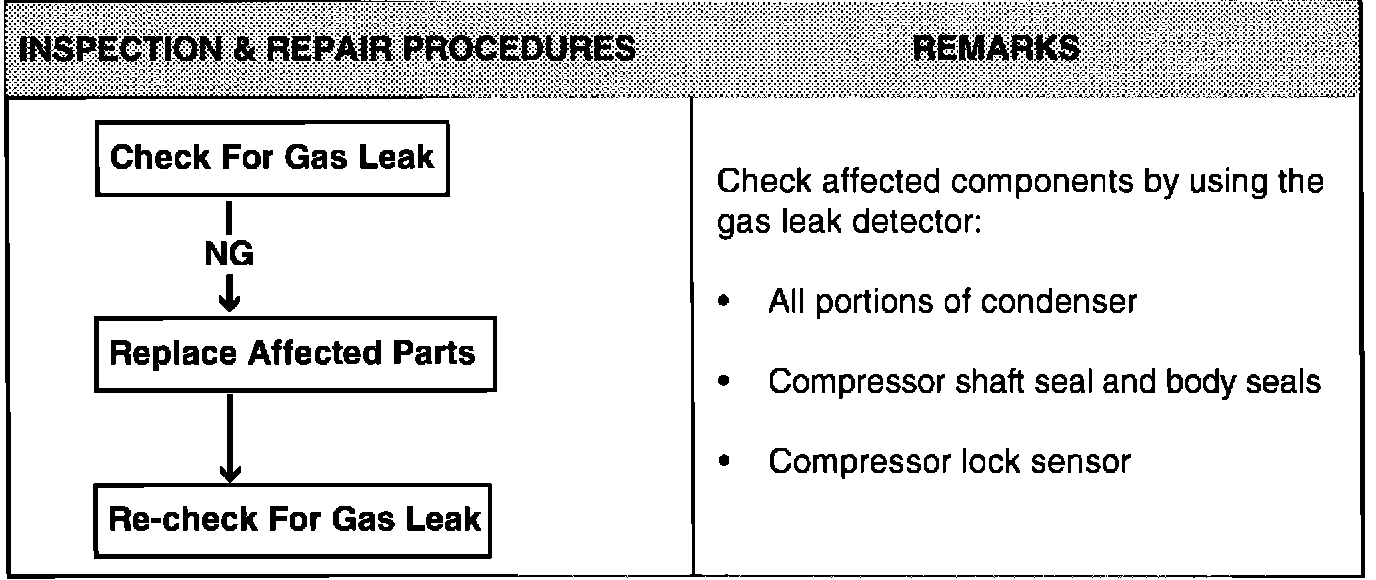

INSPECTION AND REPAIR CHART: CONDENSER/RECEIVER DRIER/COMPRESSOR (PAGE 7)
