Home >> Lexus >> 1992 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Column >> Wiring Diagrams

Wiring Diagrams

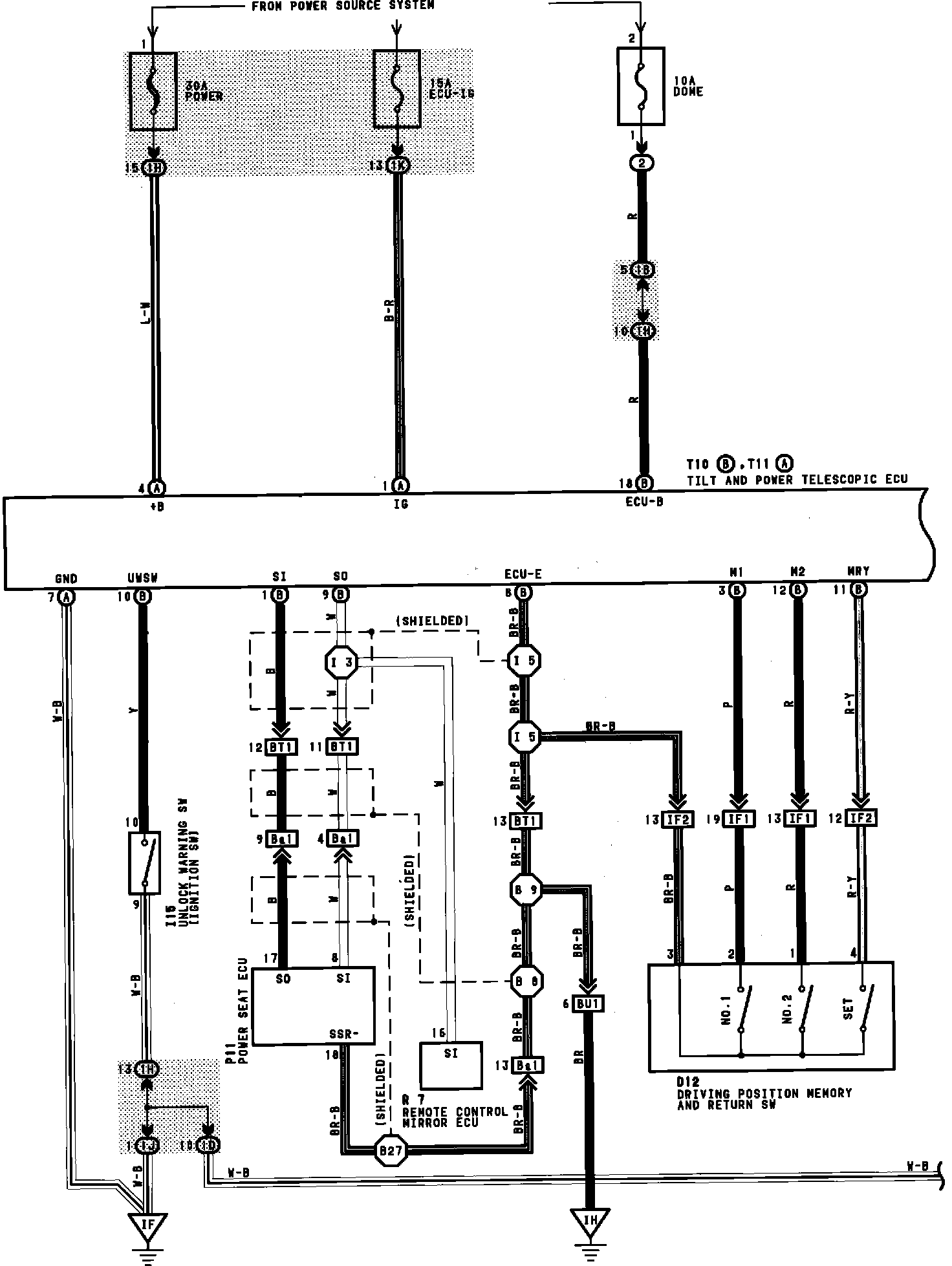

Power Tilt And Power Telescopic Steering Wheel:



Power Tilt And Power Telescopic Steering Wheel:
