Wiring Diagram

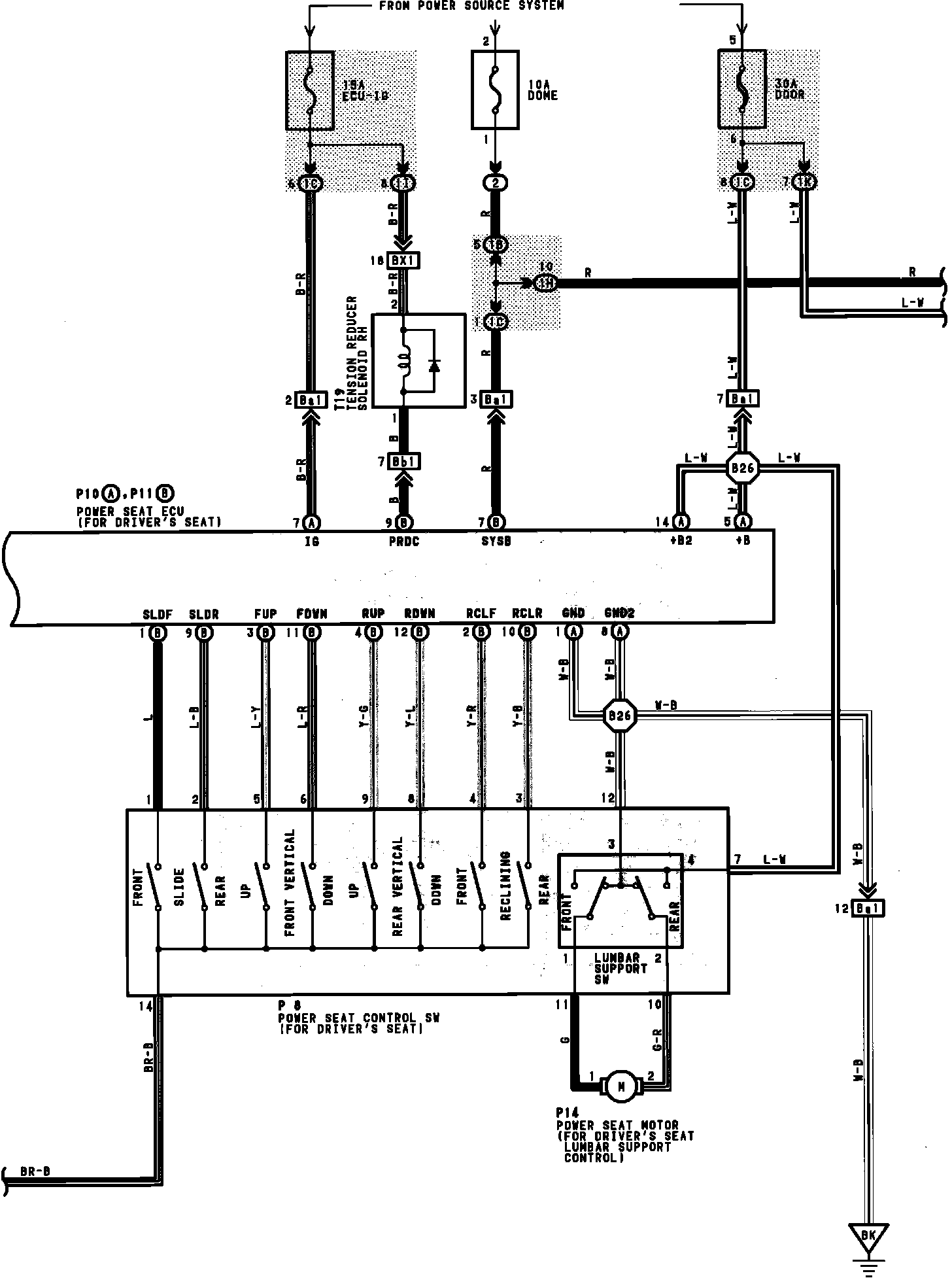

Power Seat (W/Driving Position Memory):

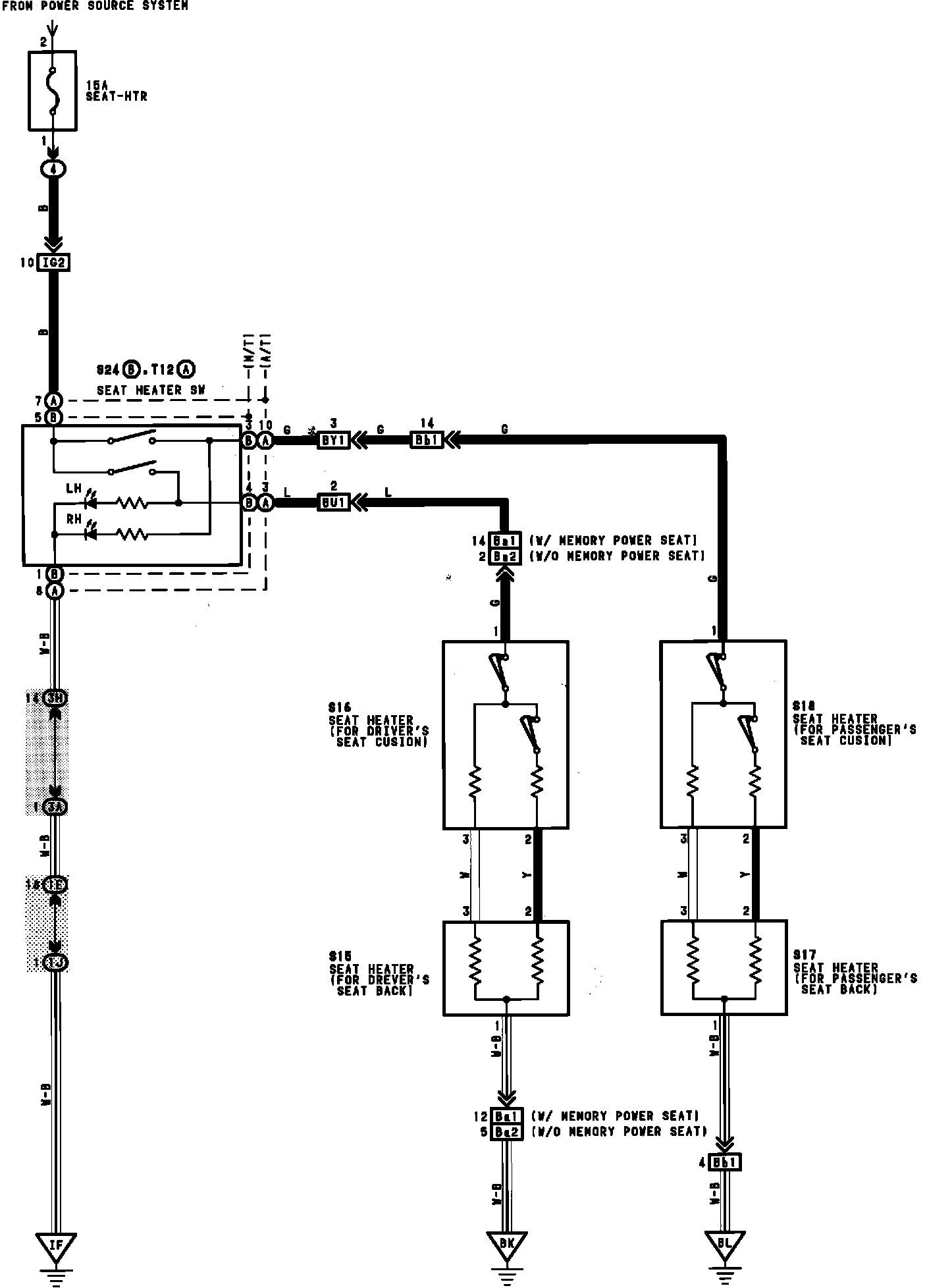

Seat Heaters:



Connector ID And Pin Locations:

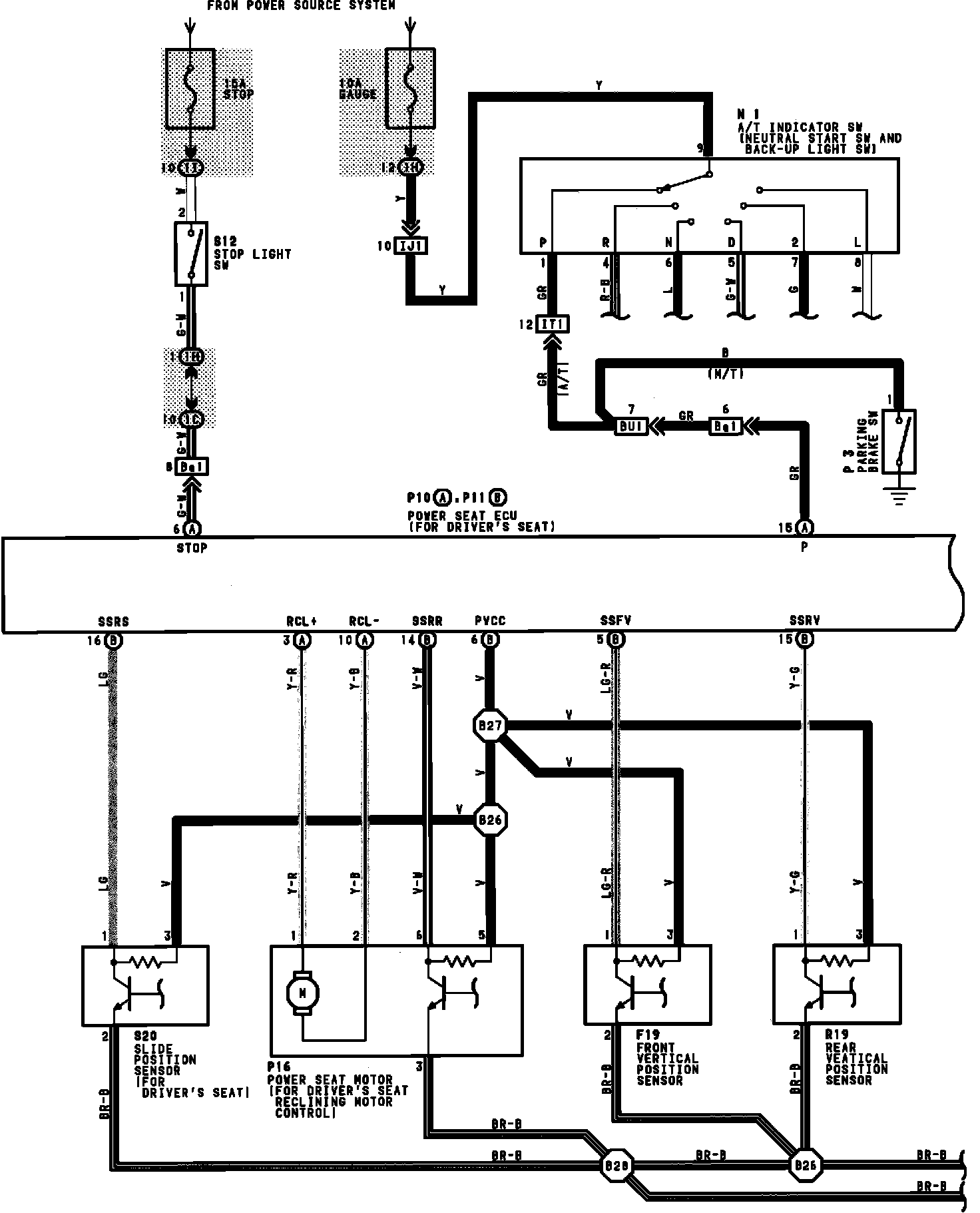

Power Seat (W/Driving Position Memory):

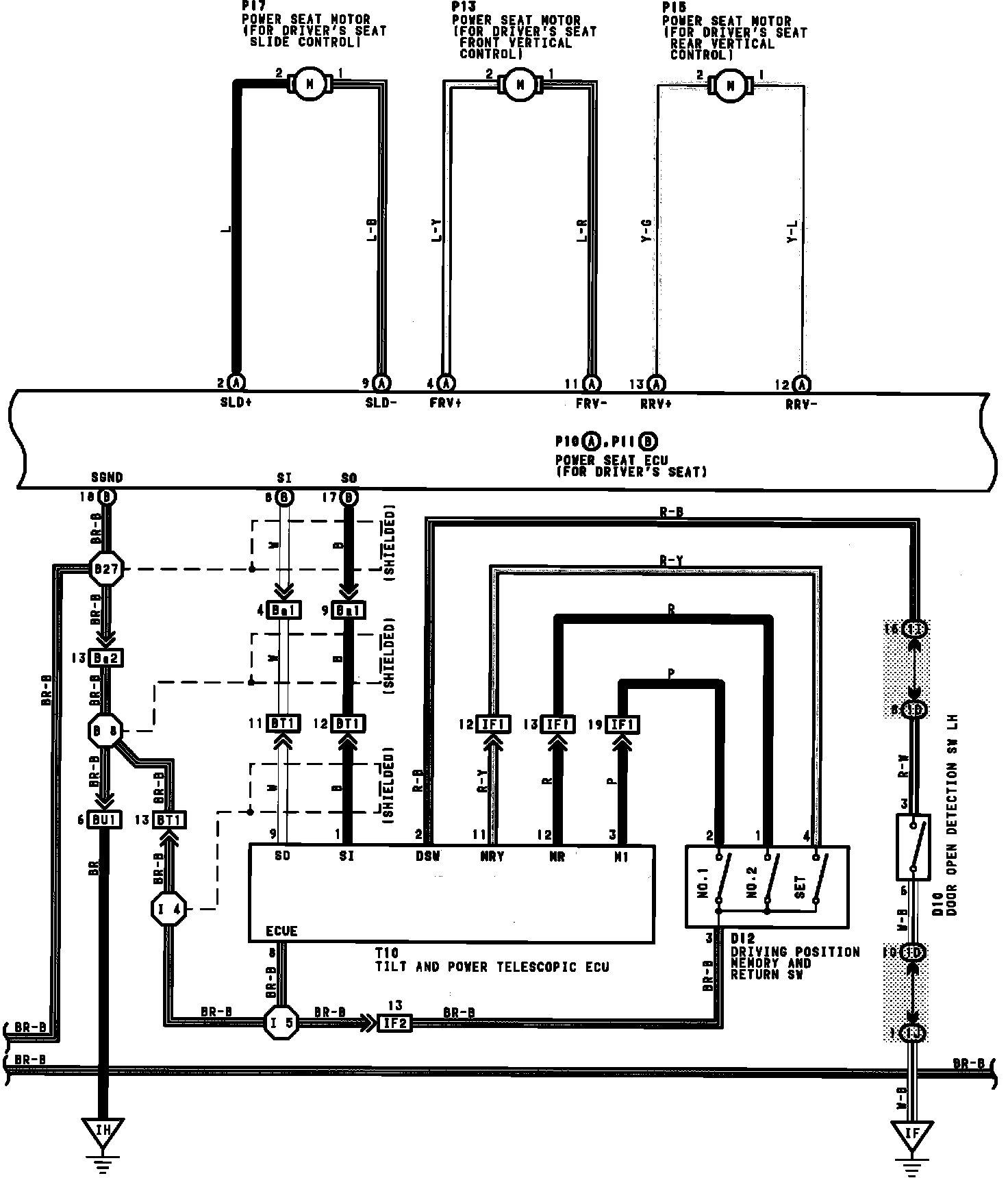

Power Seat (W/Driving Position Memory):

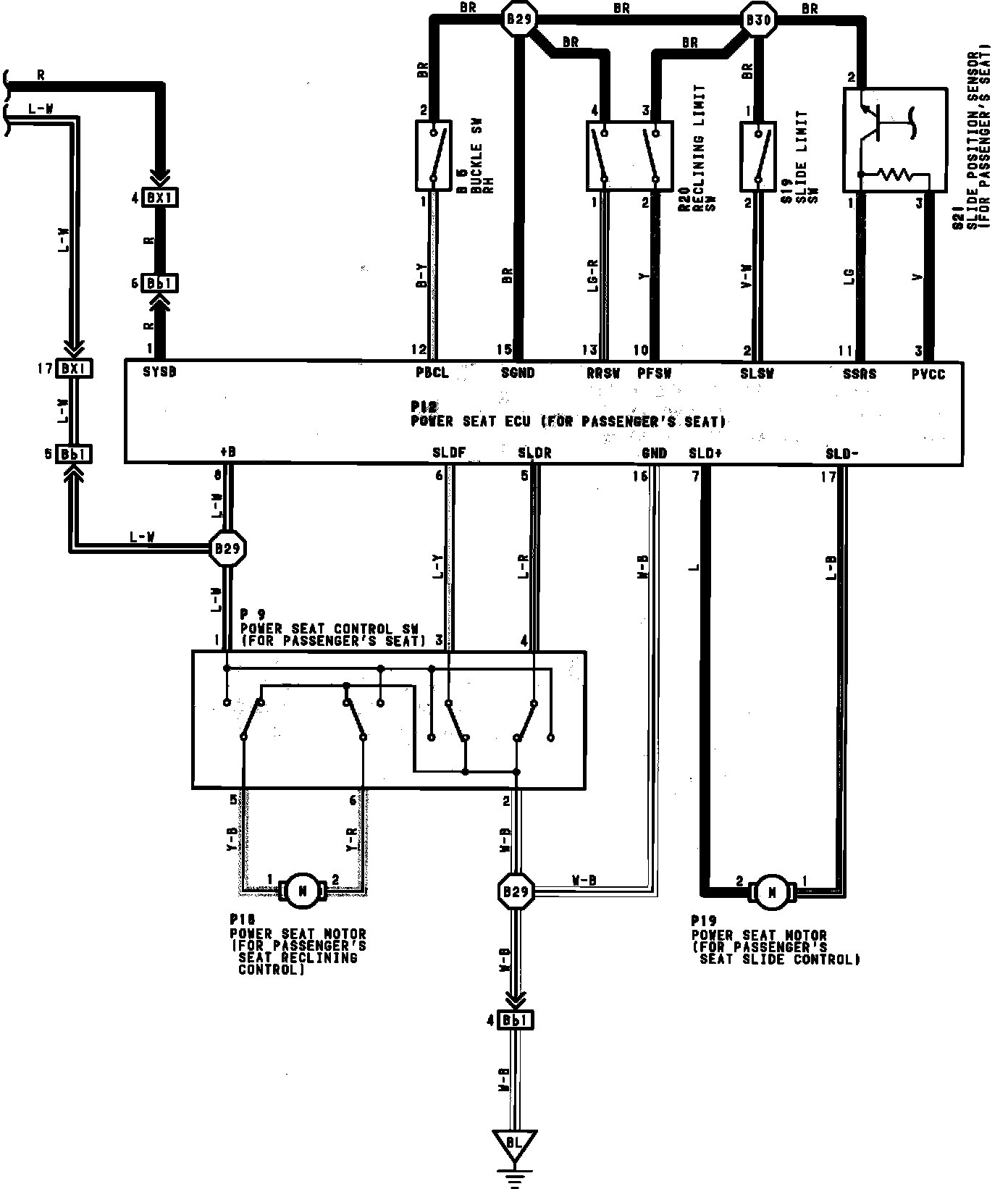

Power Seat (W/Driving Position Memory):
