Numbers 4 and 5
Numbers 4 and 5

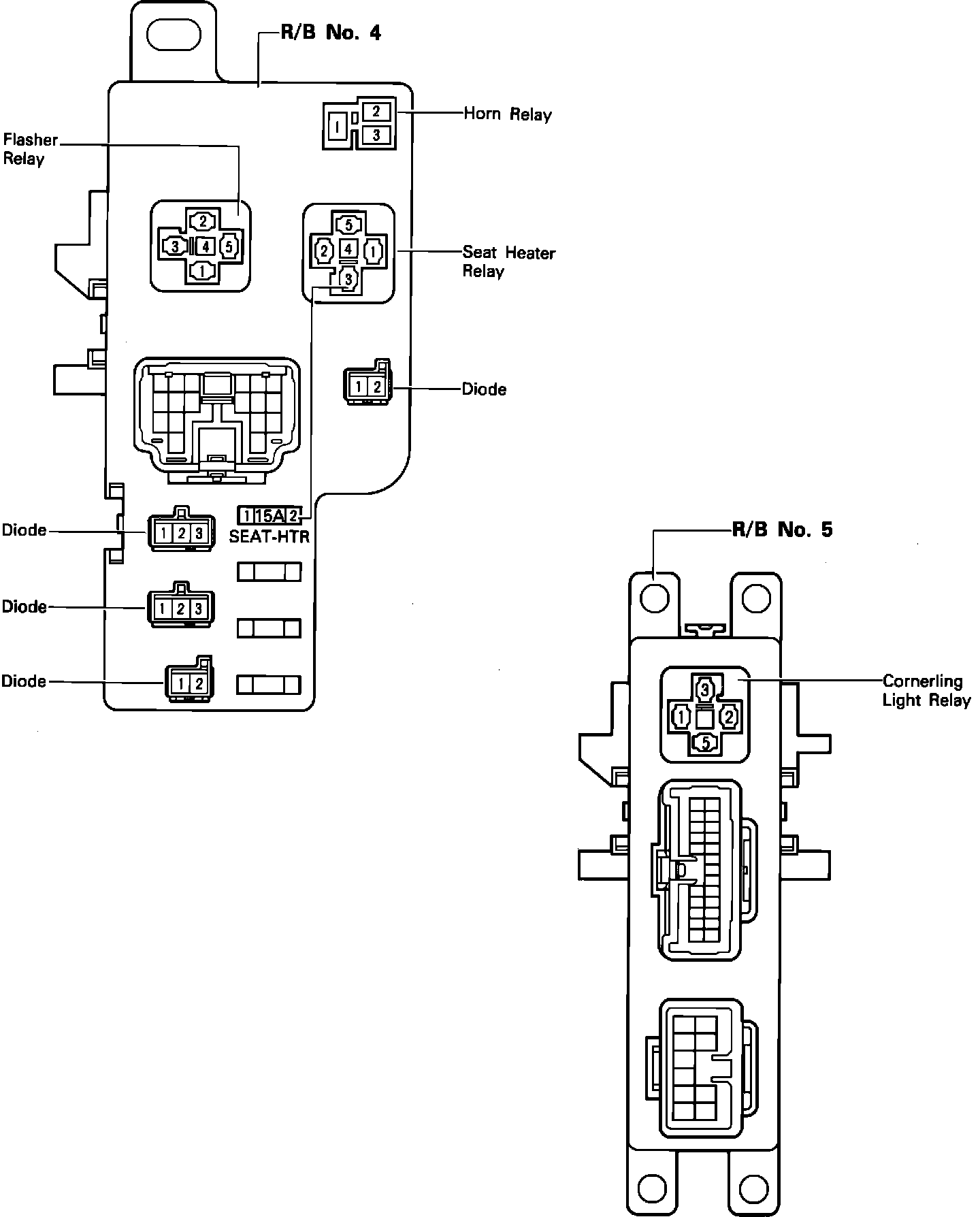

R/B No. 4 Front Side Of J/B No. 1, R/B No. 5 Rear Side Of J/B No. 1:
