Home >> Lexus >> 1992 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuse, Relay, and Junction Block Data >> Relay Blocks >> Number 2

Number 2

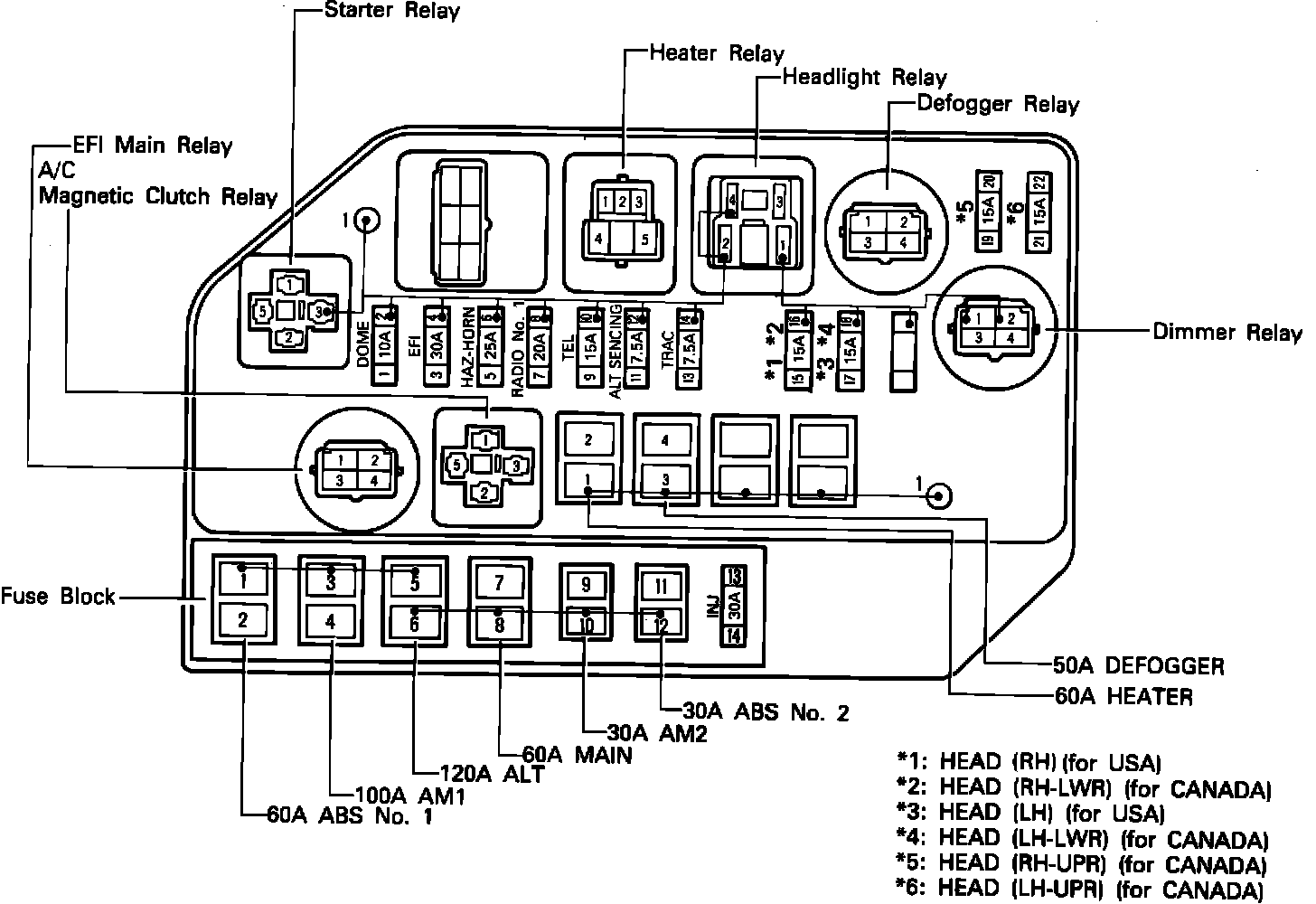

R/B No. 2 - Engine Compartment Left Side:
