Number 3
Number 3

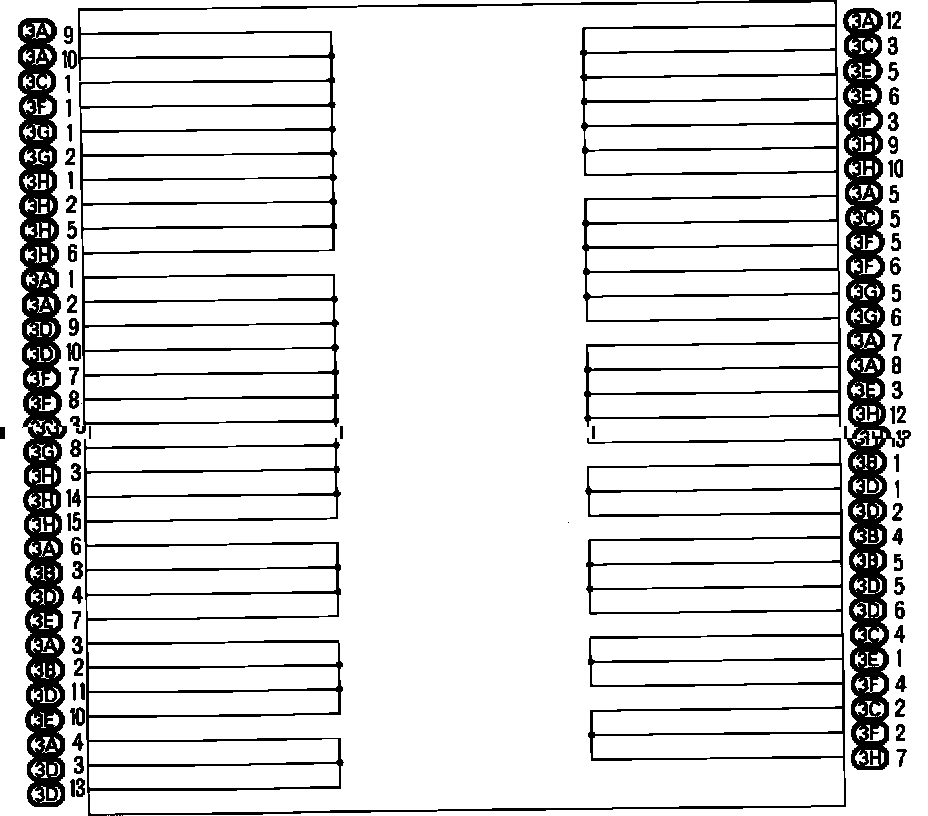

J/B No. 3 Inner Circuit:
INNER CIRCUIT

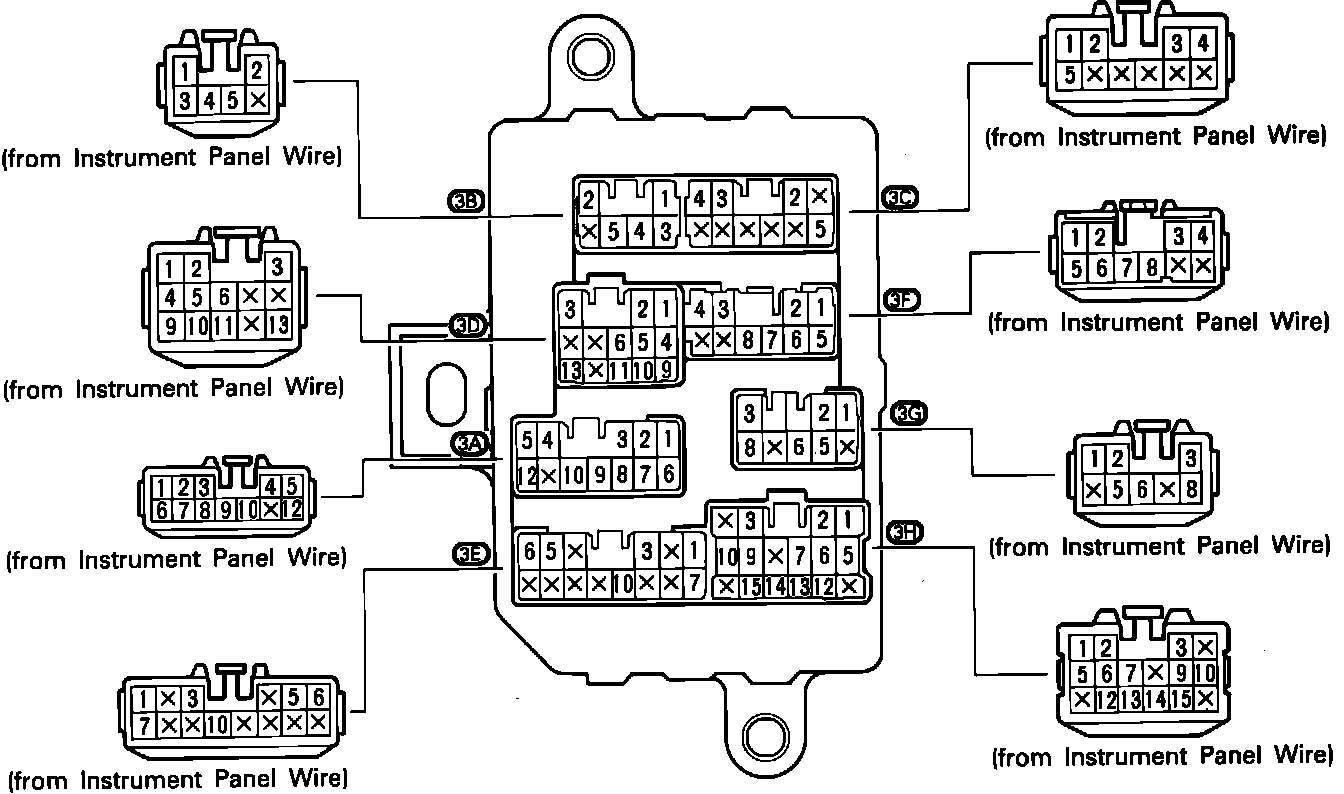

J/B No. 3 Behind The Instrument Panel Center:
VIEW
