Home >> Lexus >> 1992 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuse, Relay, and Junction Block Data >> Junction Blocks >> Number 1

Number 1

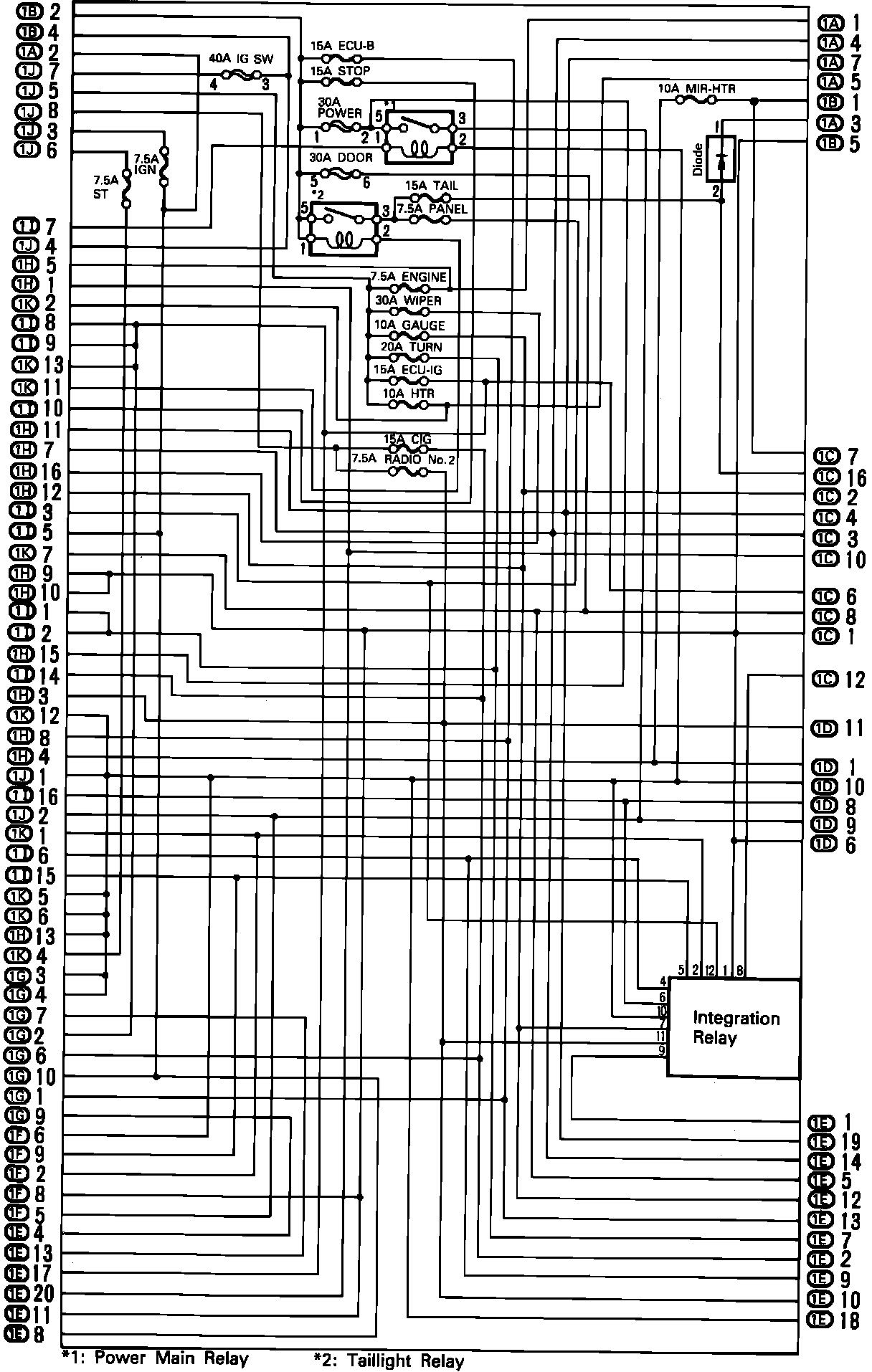

J/B No. 1 Inner Circuit:




INNER CIRCUIT

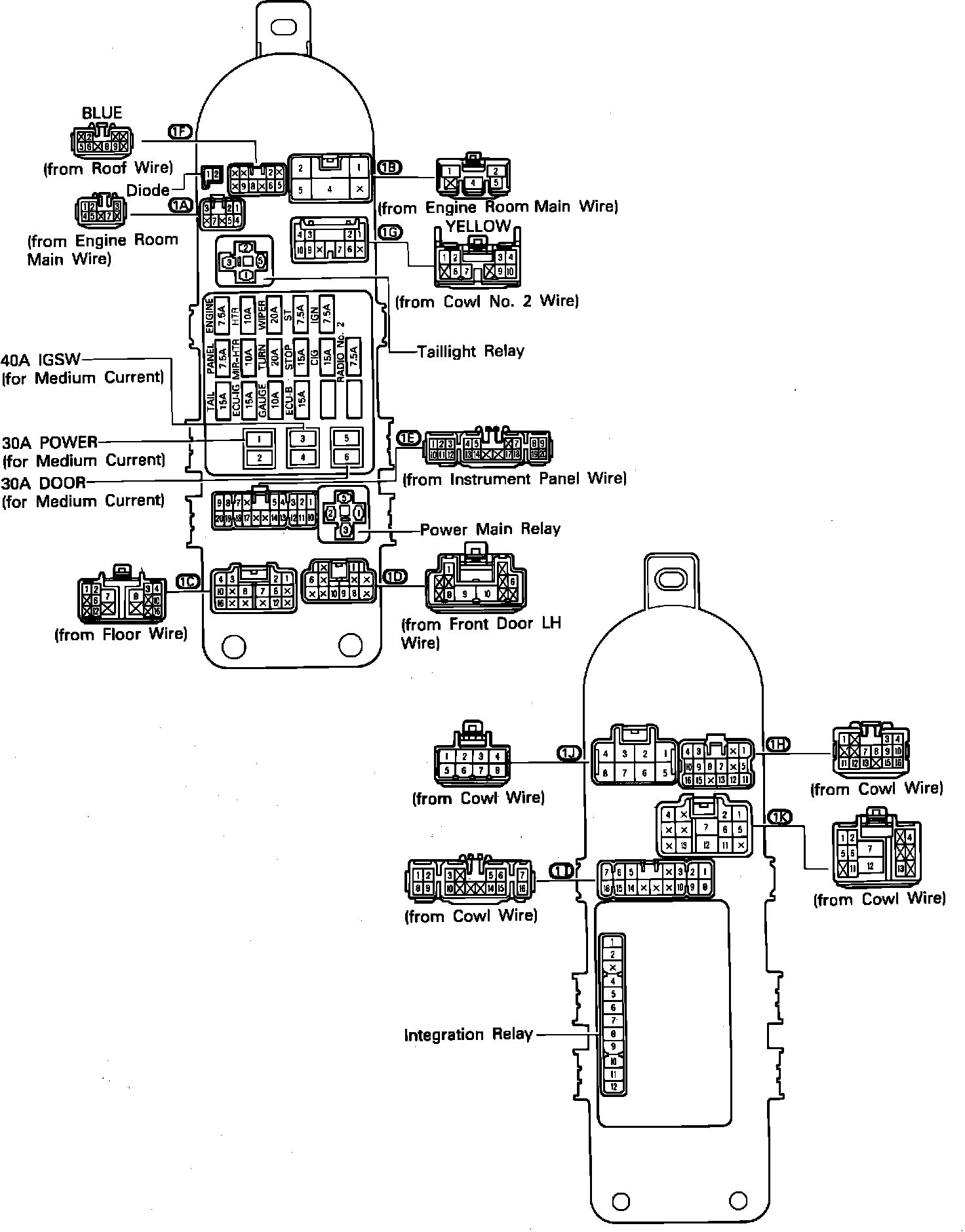

J/B No. 1 Left Kick Panel:




VIEW
