Cruise Control: Testing and Inspection

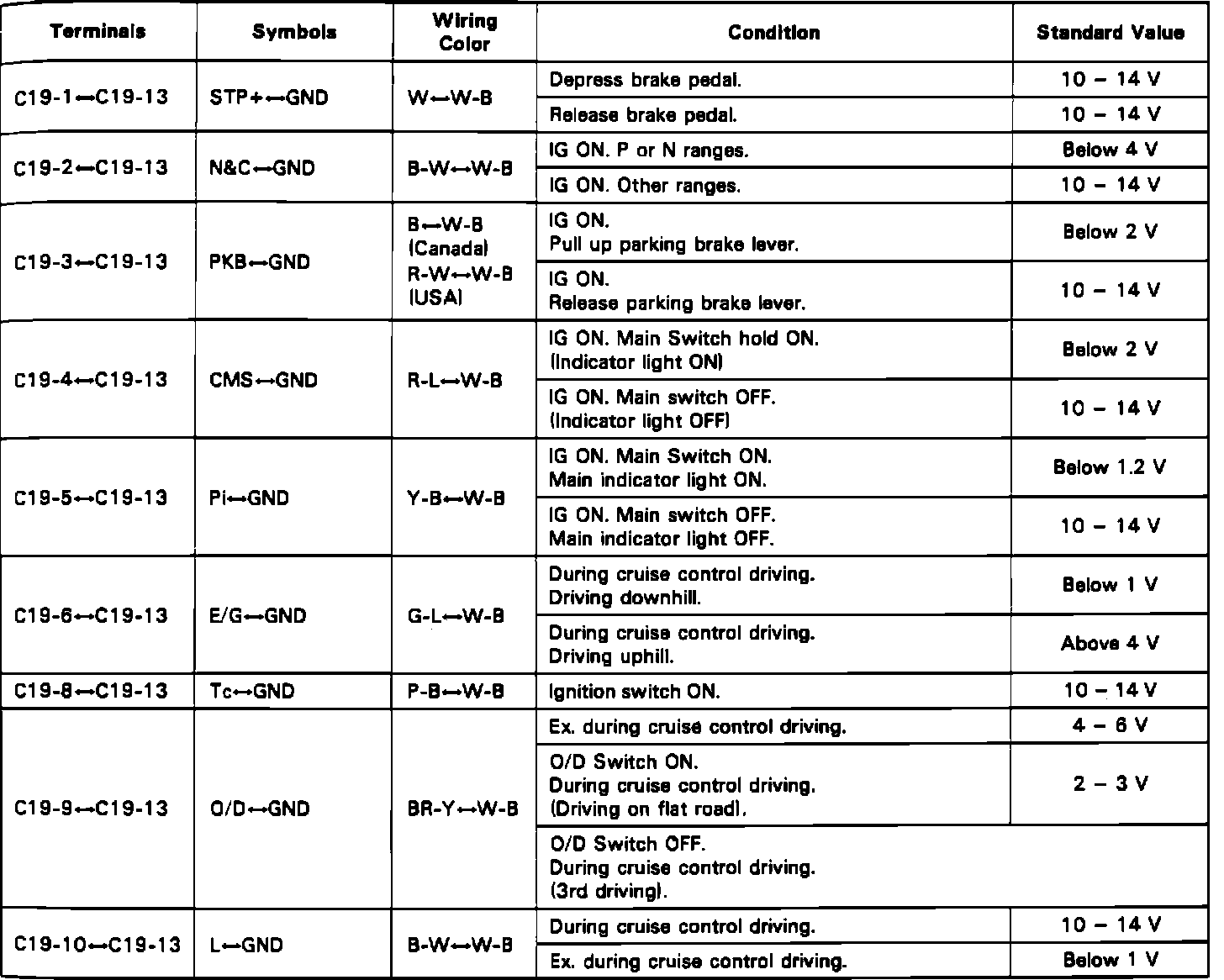

Fig. 9 ECU Circuit Test Chart (Part 1 Of 2):

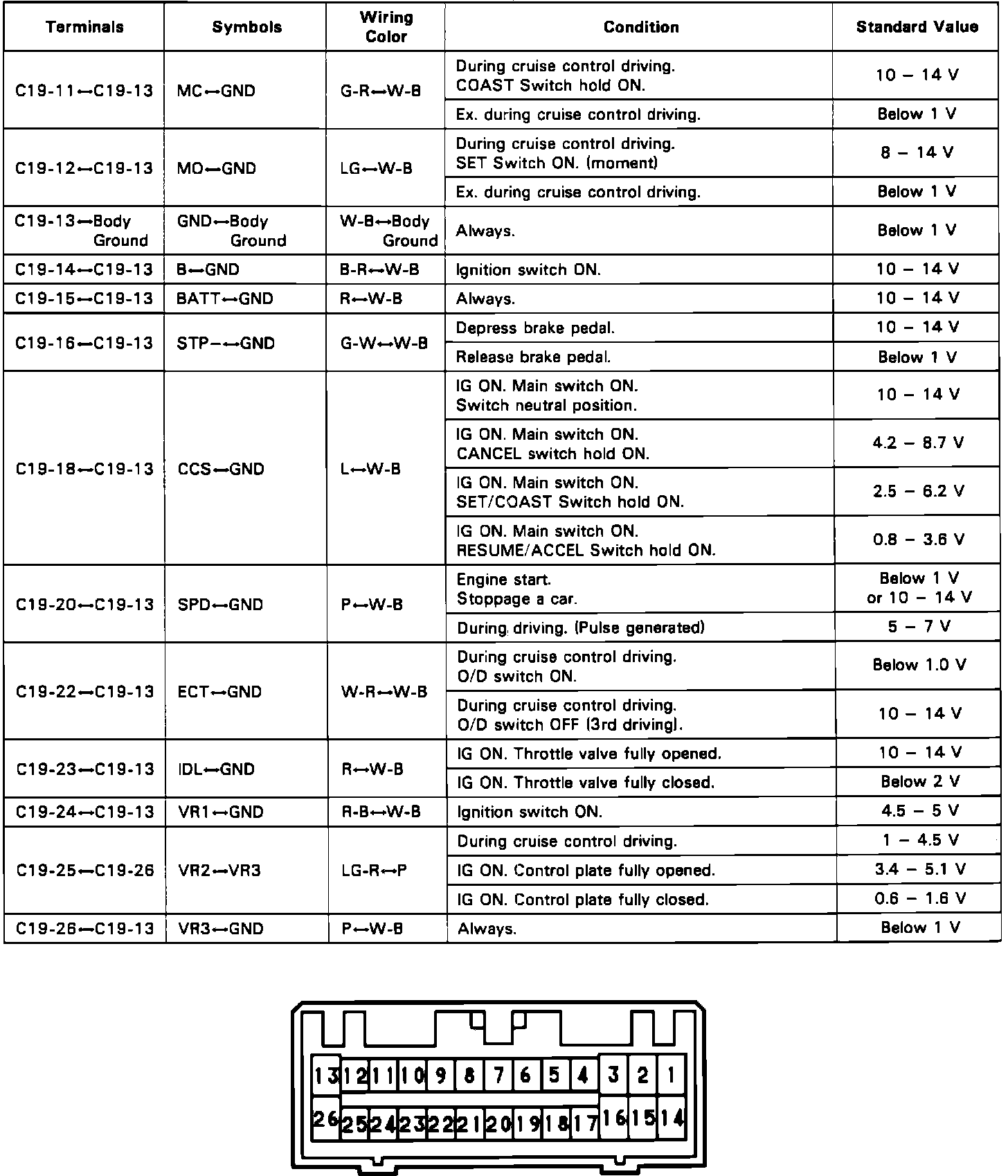

Fig. 9 ECU Circuit Test Chart (Part 2 Of 2):

Disconnect ECU connector and inspect connector on wire harness side as shown in Fig. 9.
