Clearing Trouble Codes

DTC CLEARANCE






1. Using SST, connect terminals Tc and E1 of TDCL or check connector. SST 09843-18020

2. Turn the Ignition Switch ON.

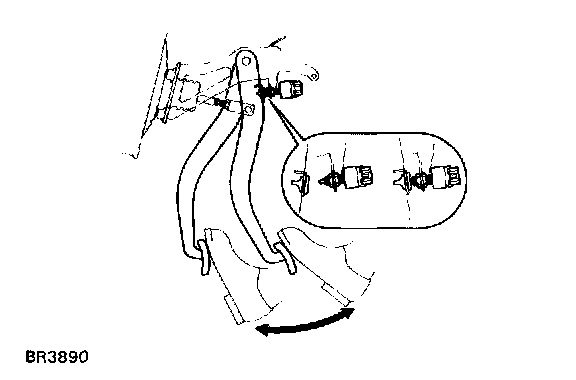

3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 3 seconds.

4. Check that the warning light shows the normal code.

5. Remove the SST from the terminals of TDCL or check connector. SST 09843-18020

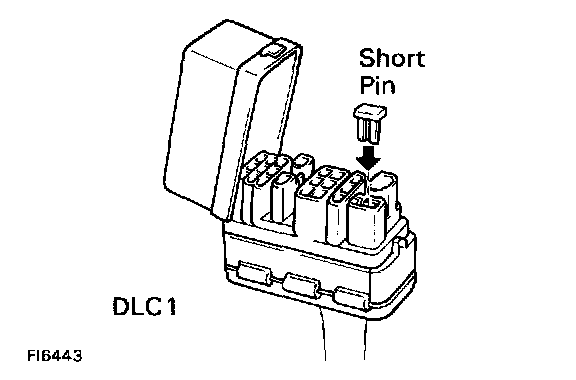

6. Connect the Short Pin to check connector.
