Home >> Lexus >> 1992 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Door Locks >> Diagrams >> Electrical Diagrams >> With Wireless Remote >> Wiring Diagram

Wiring Diagram

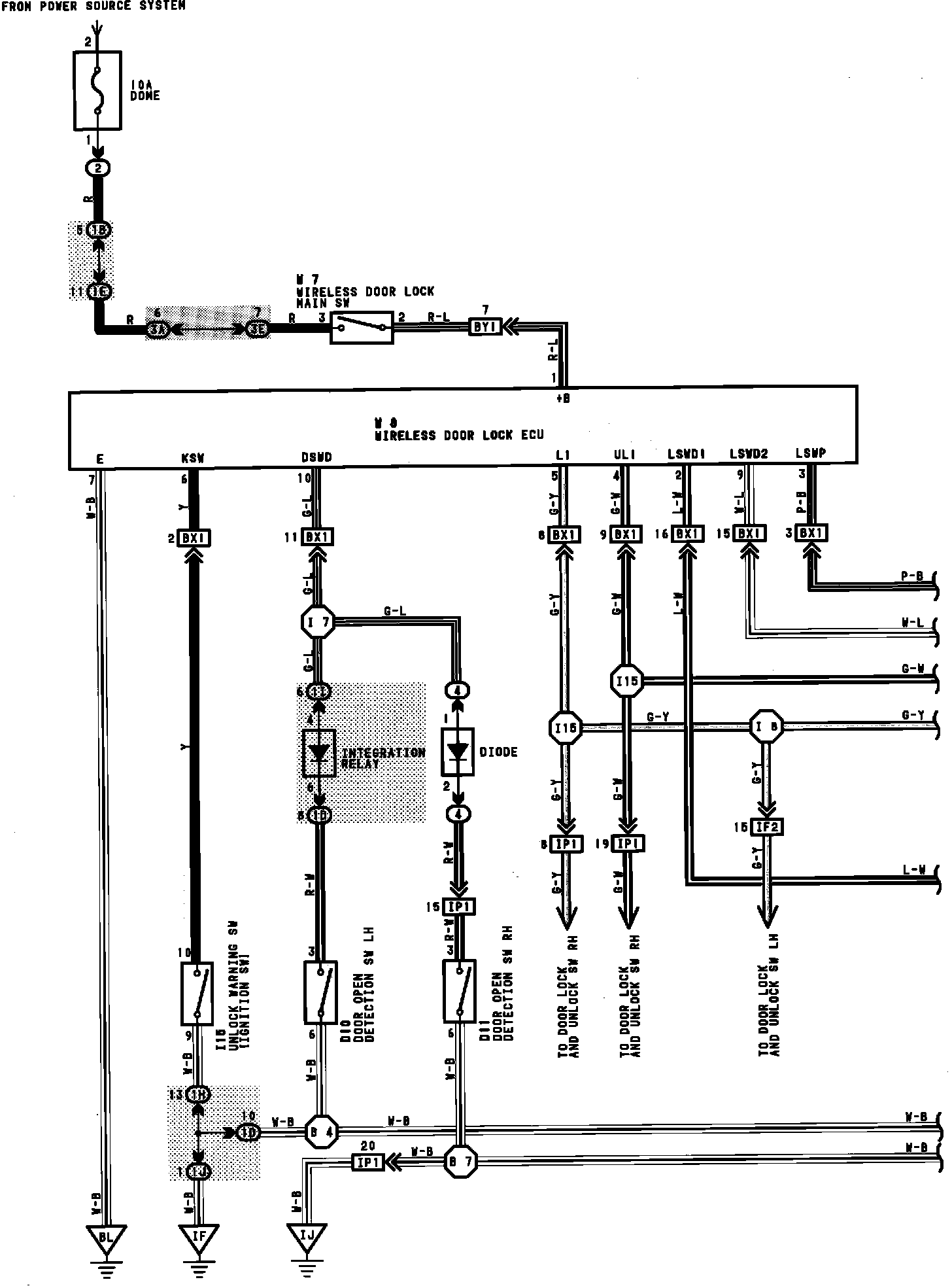

Wireless Door Lock Remote Control:

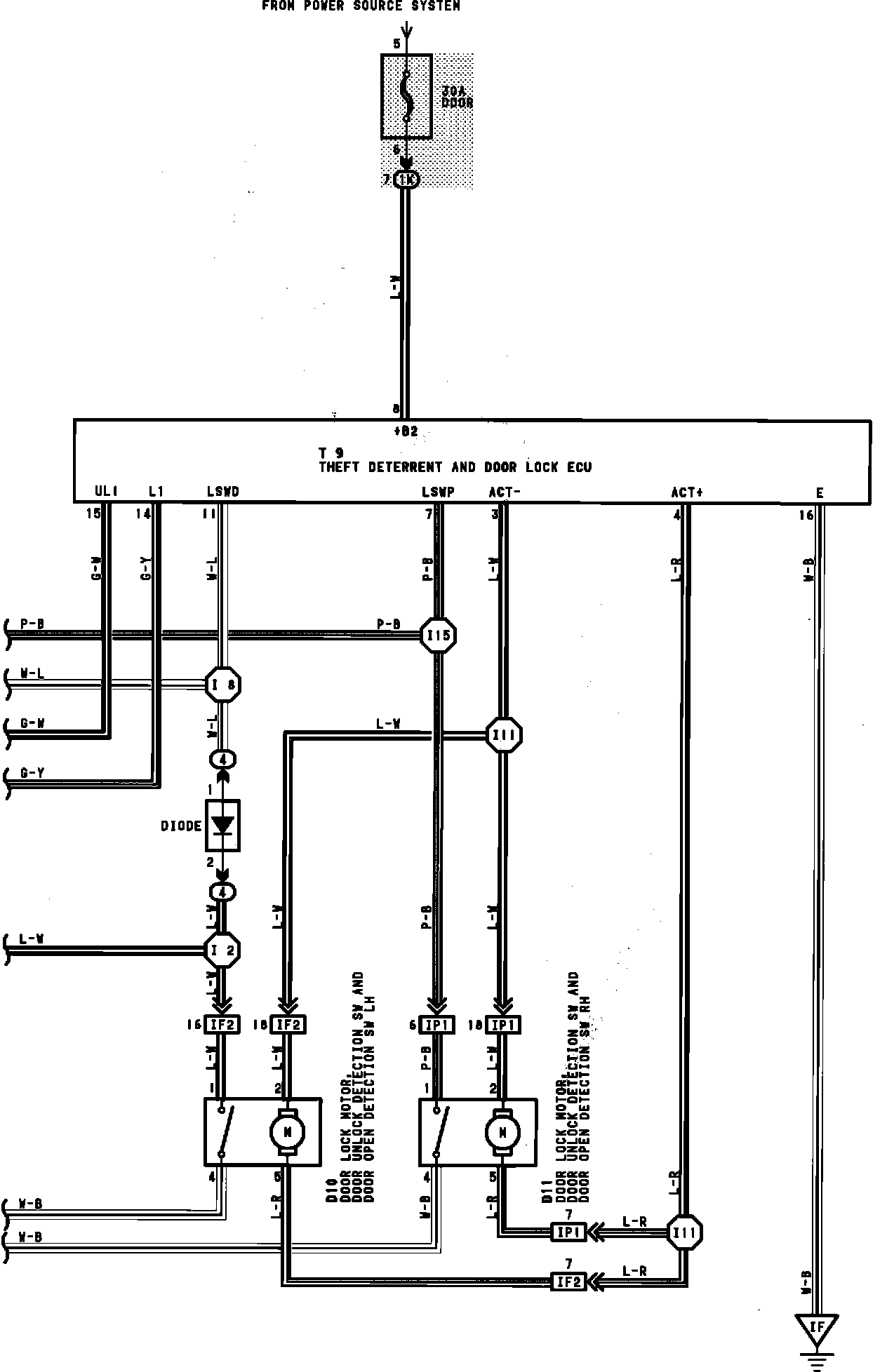

Wireless Door Lock Remote Control:
