DTC 71

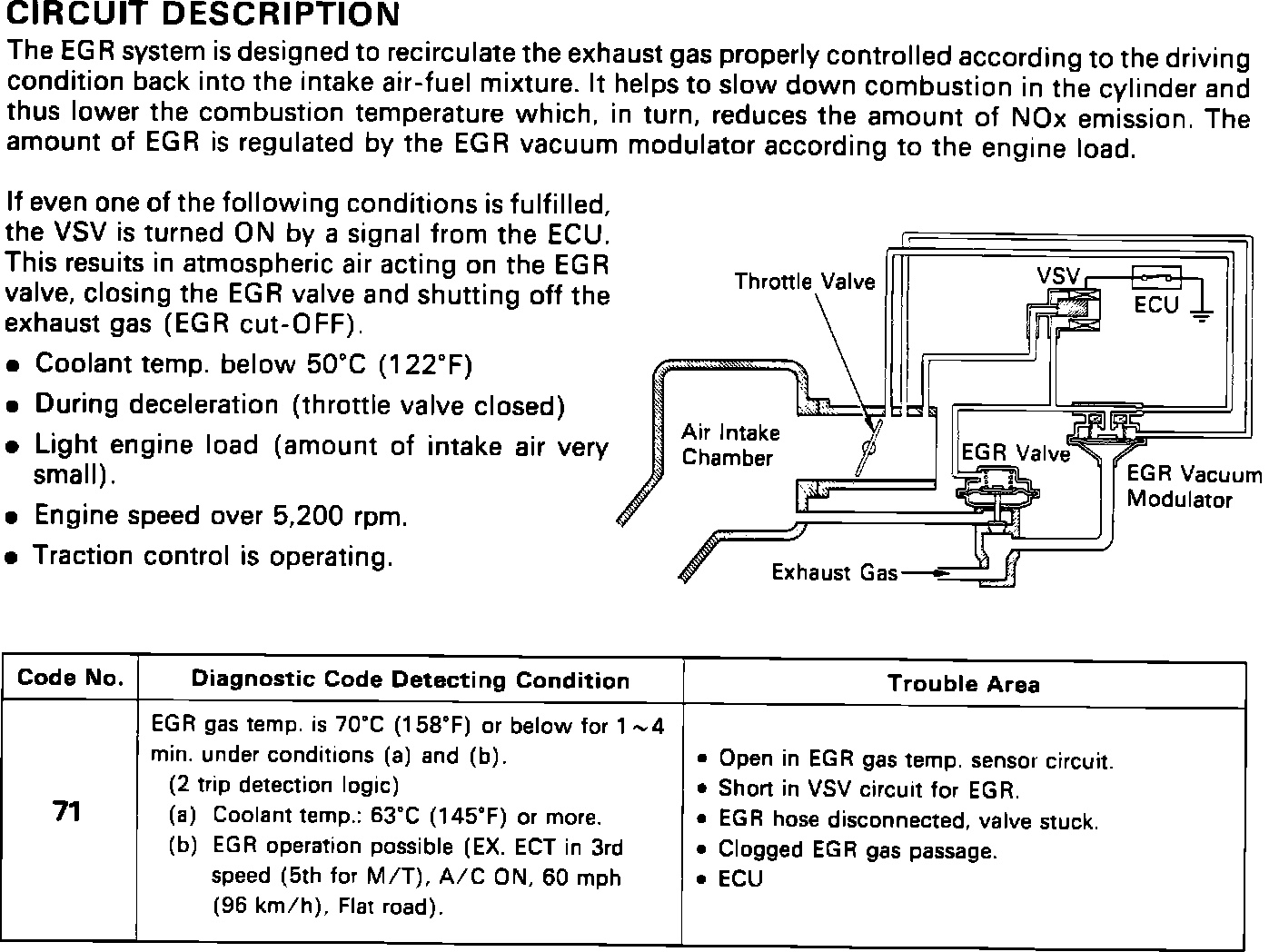

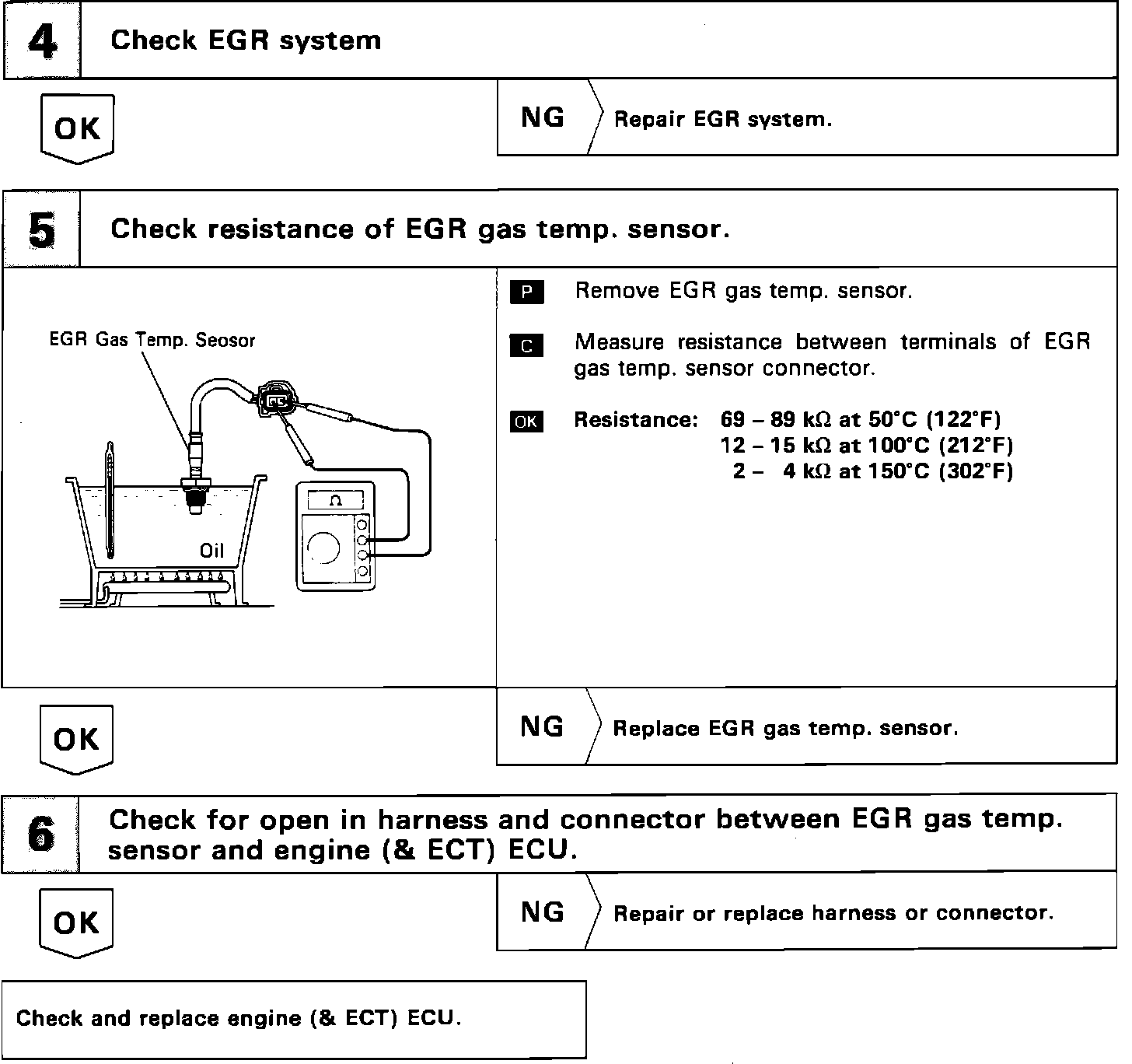

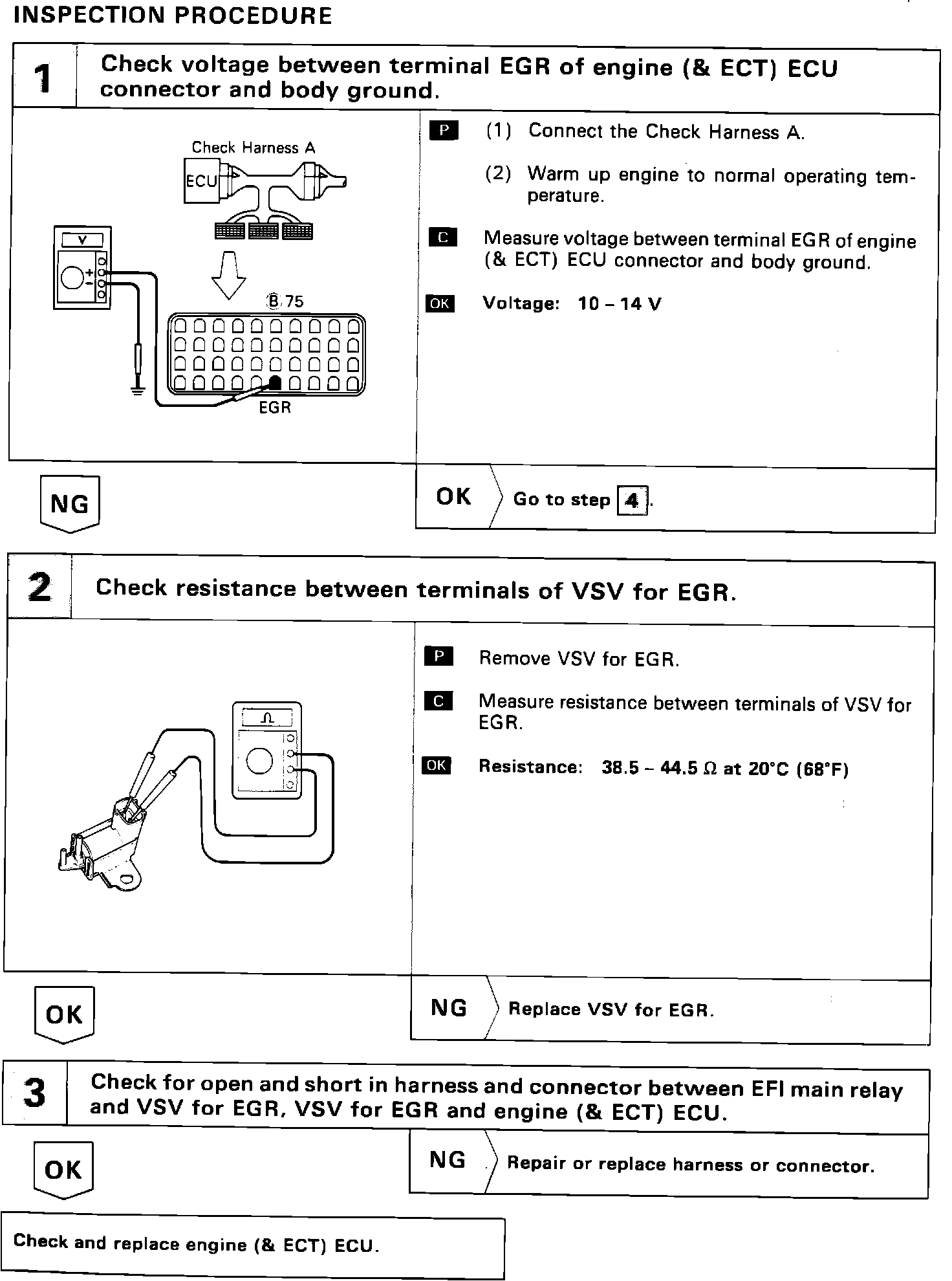

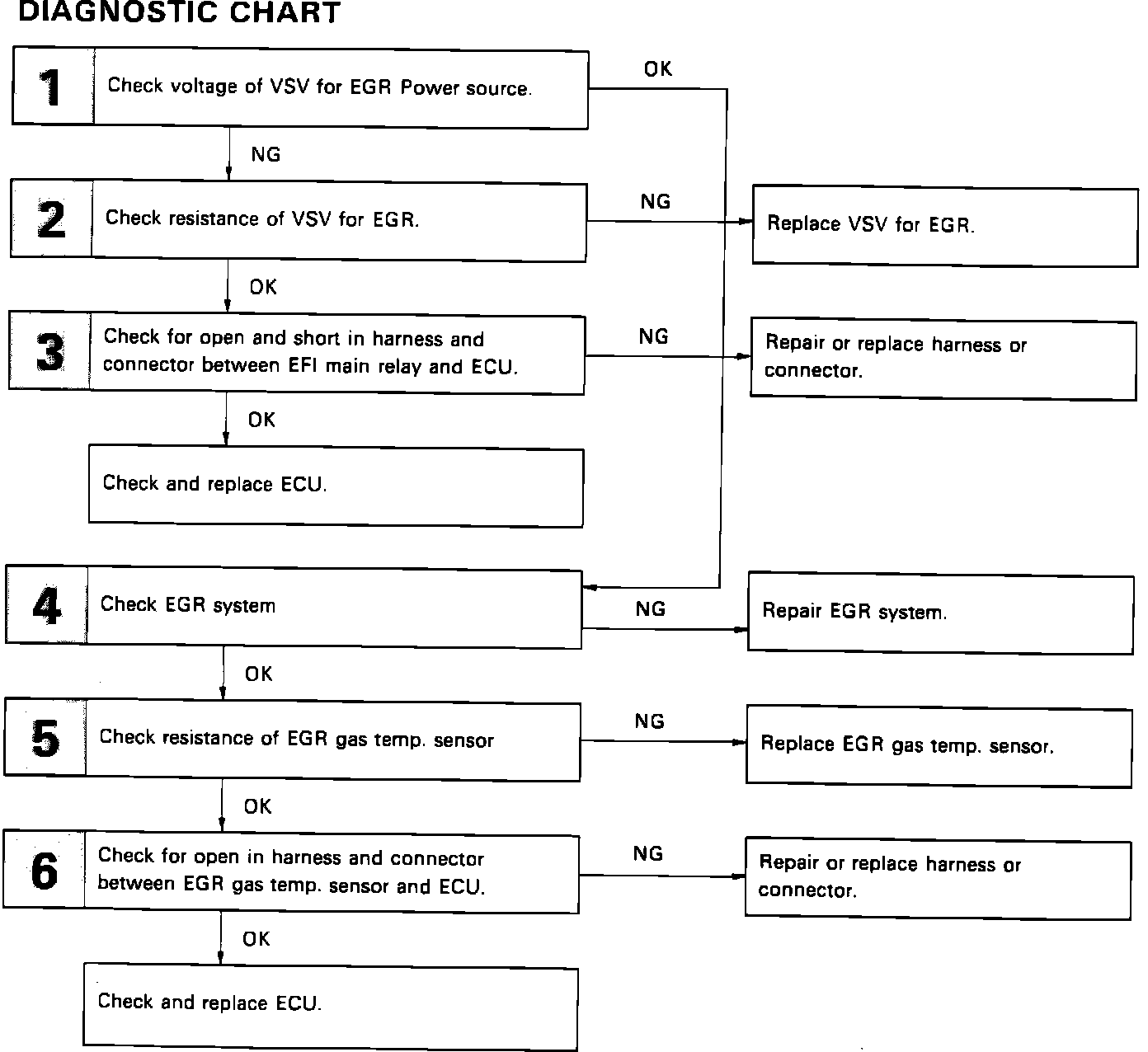

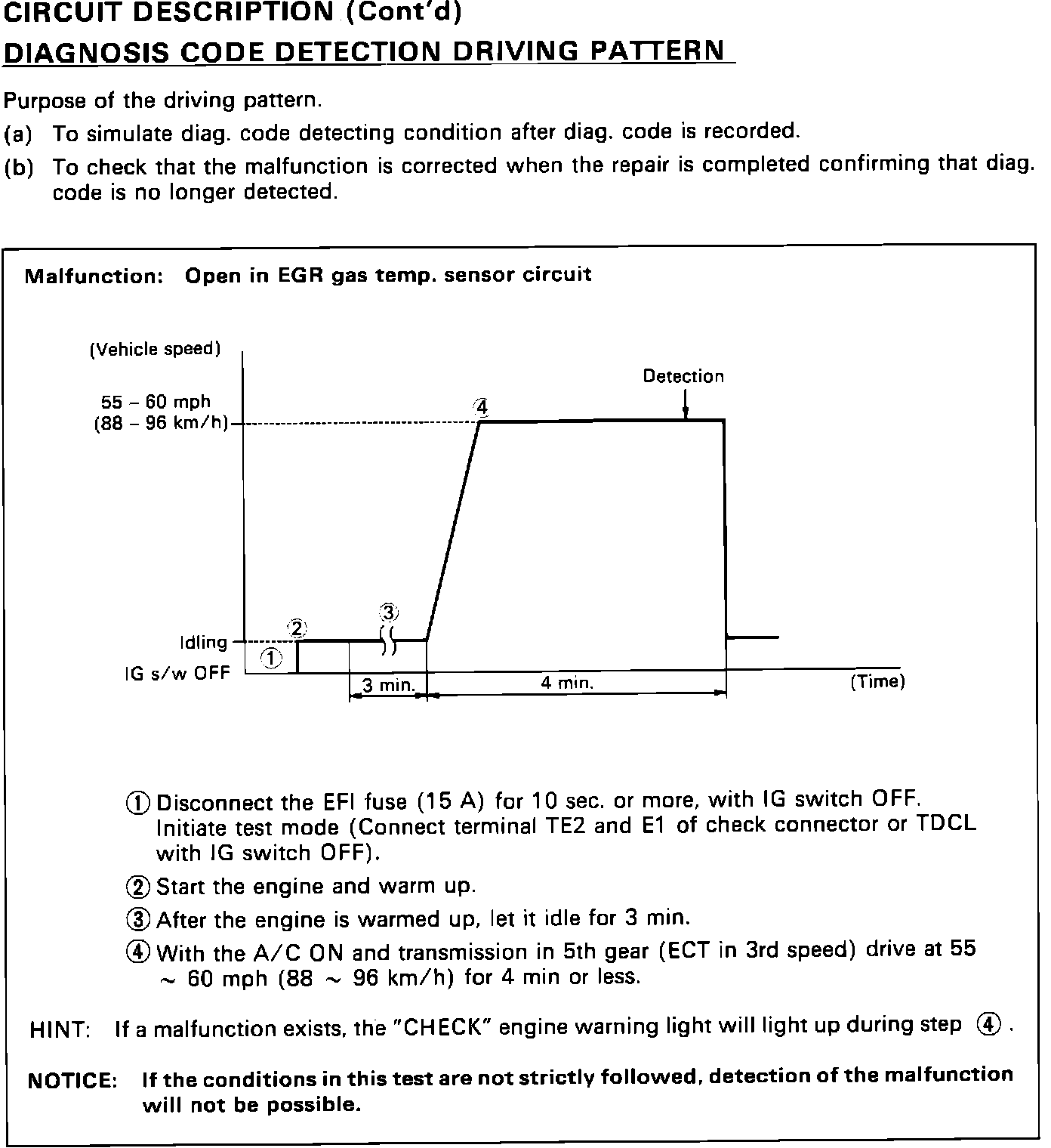

Fig. 21 Diagnostic Code 71 (EGR System Malfunction, Part 1 Of 5):

Fig. 21 Diagnostic Code 71 (EGR System Malfunction, Part 2 Of 5):

Fig. 21 Diagnostic Code 71 (EGR System Malfunction, Part 3 Of 5):

Fig. 21 Diagnostic Code 71 (EGR System Malfunction, Part 4 Of 5):

Fig. 21 Diagnostic Code 71 (EGR System Malfunction, Part 5 Of 5):
