DTC 31

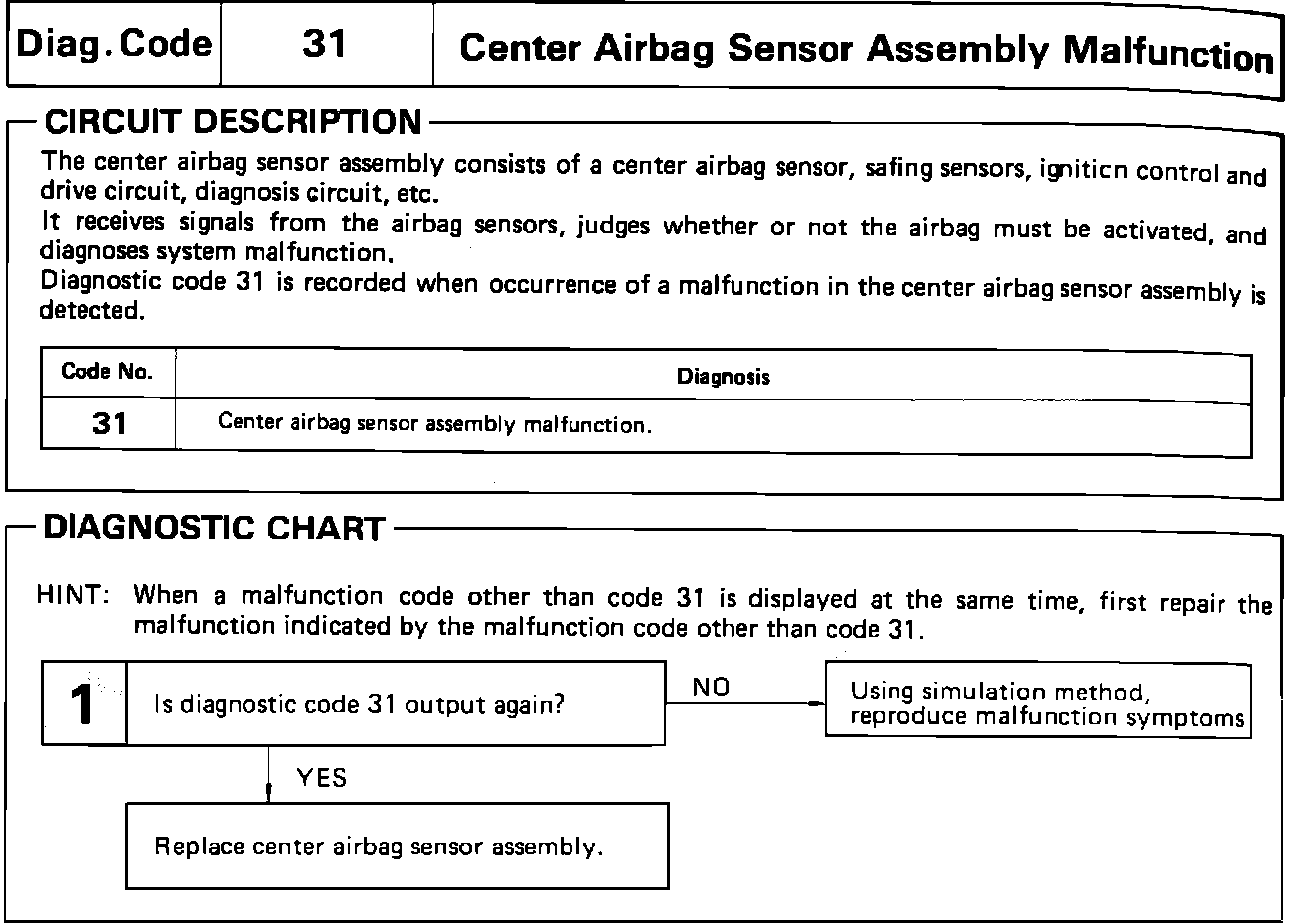

Fig. 28 Code 31 Diagnostics (Part 1 Of 2):

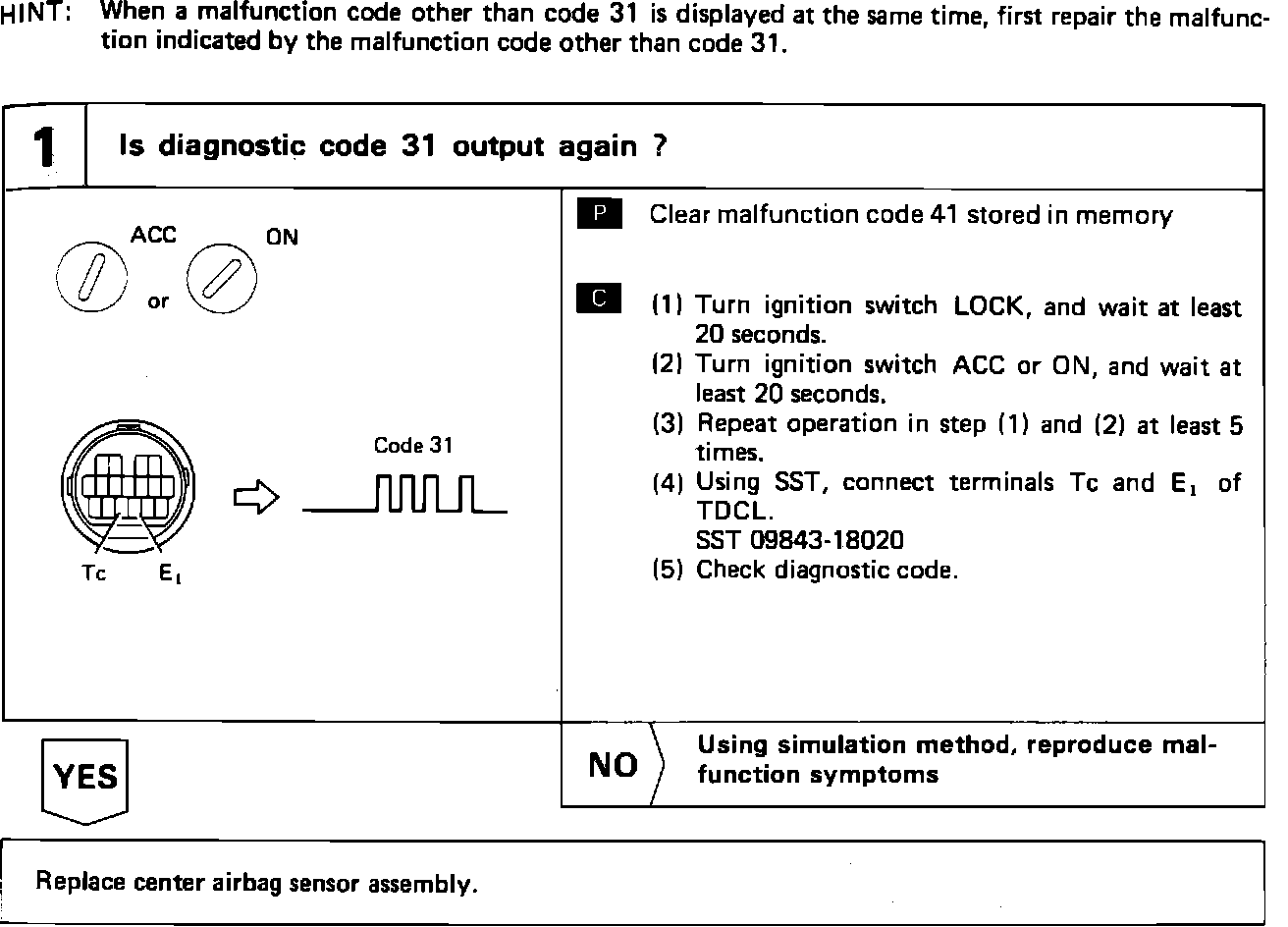

Fig. 28 Code 31 Diagnostics (Part 2 Of 2):

Code 31 is displayed when a malfunction in the self diagnosing system has been detected. Refer Fig. 28 for testing.
