DTC 22

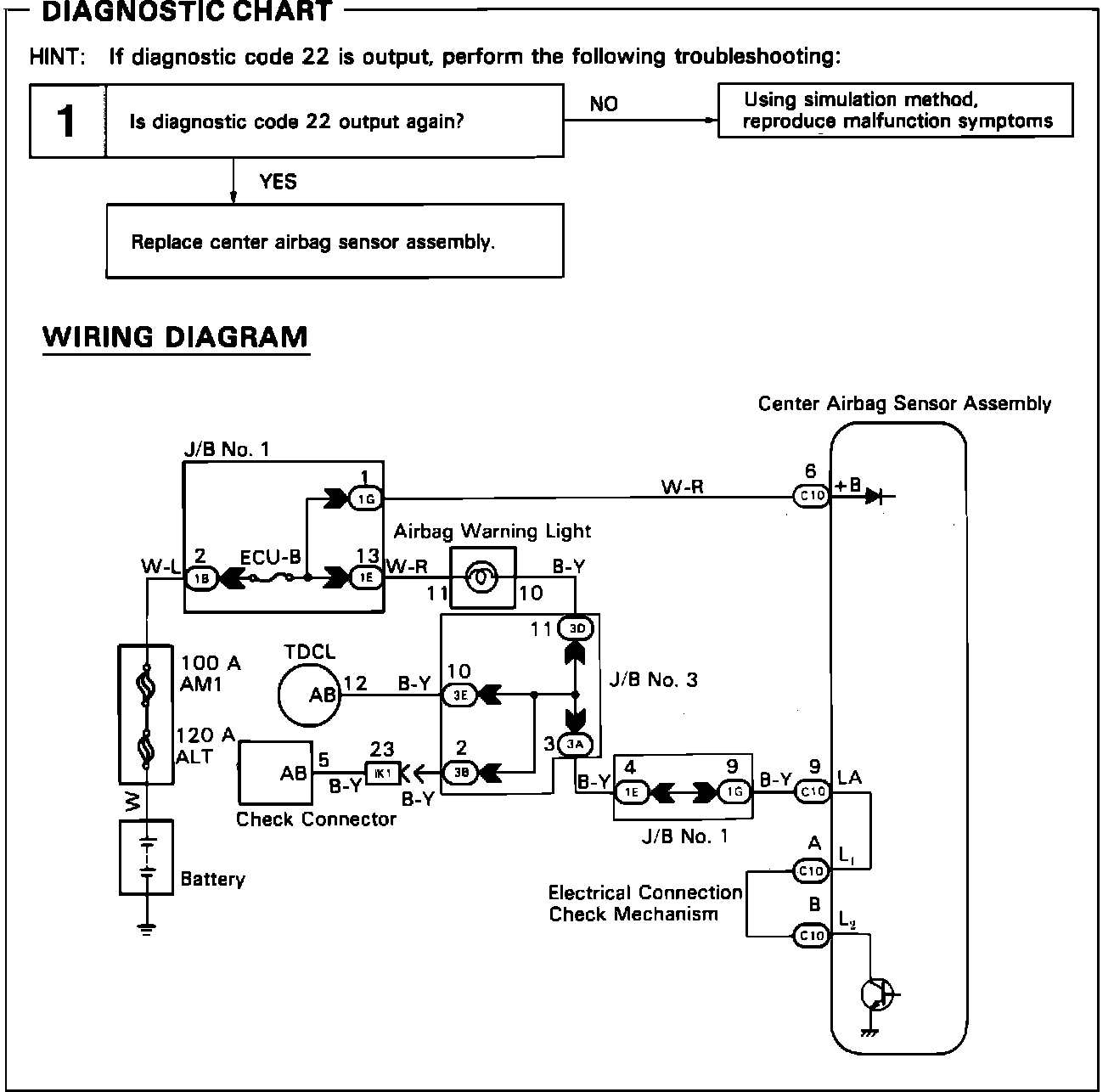

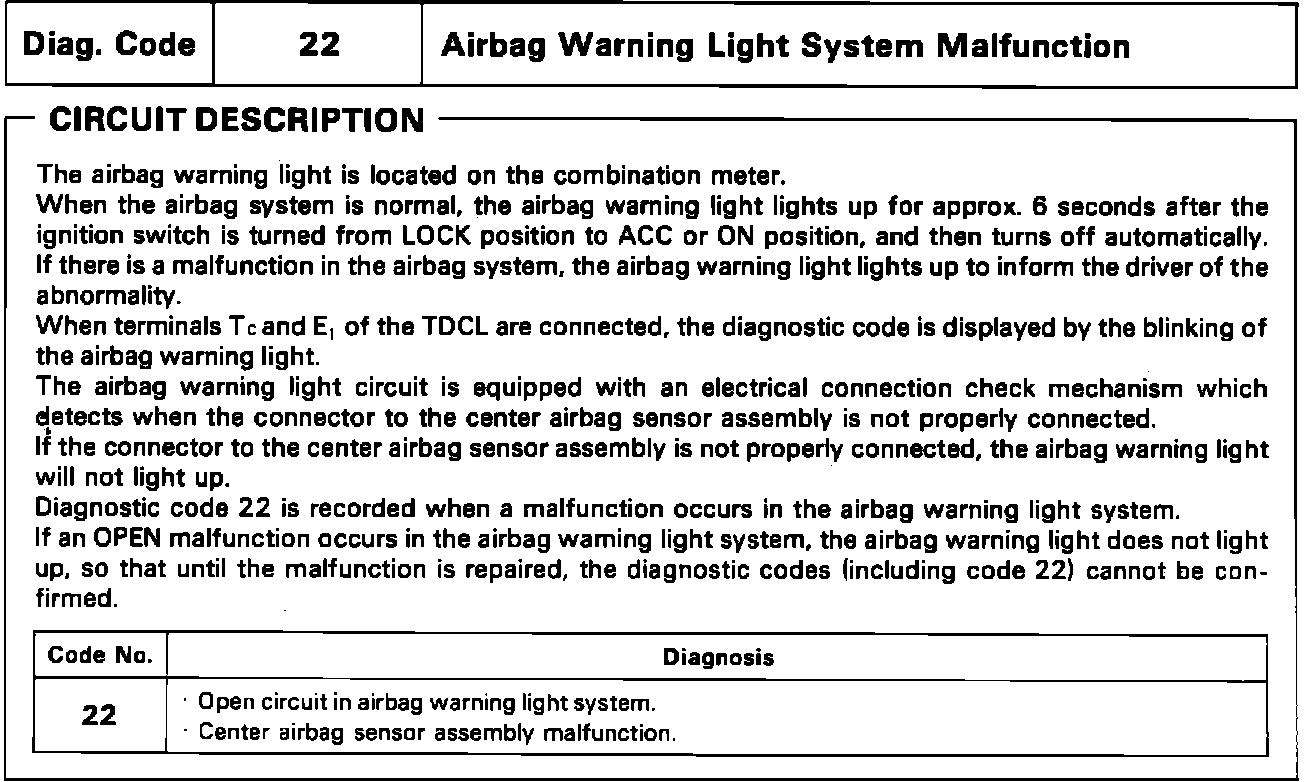

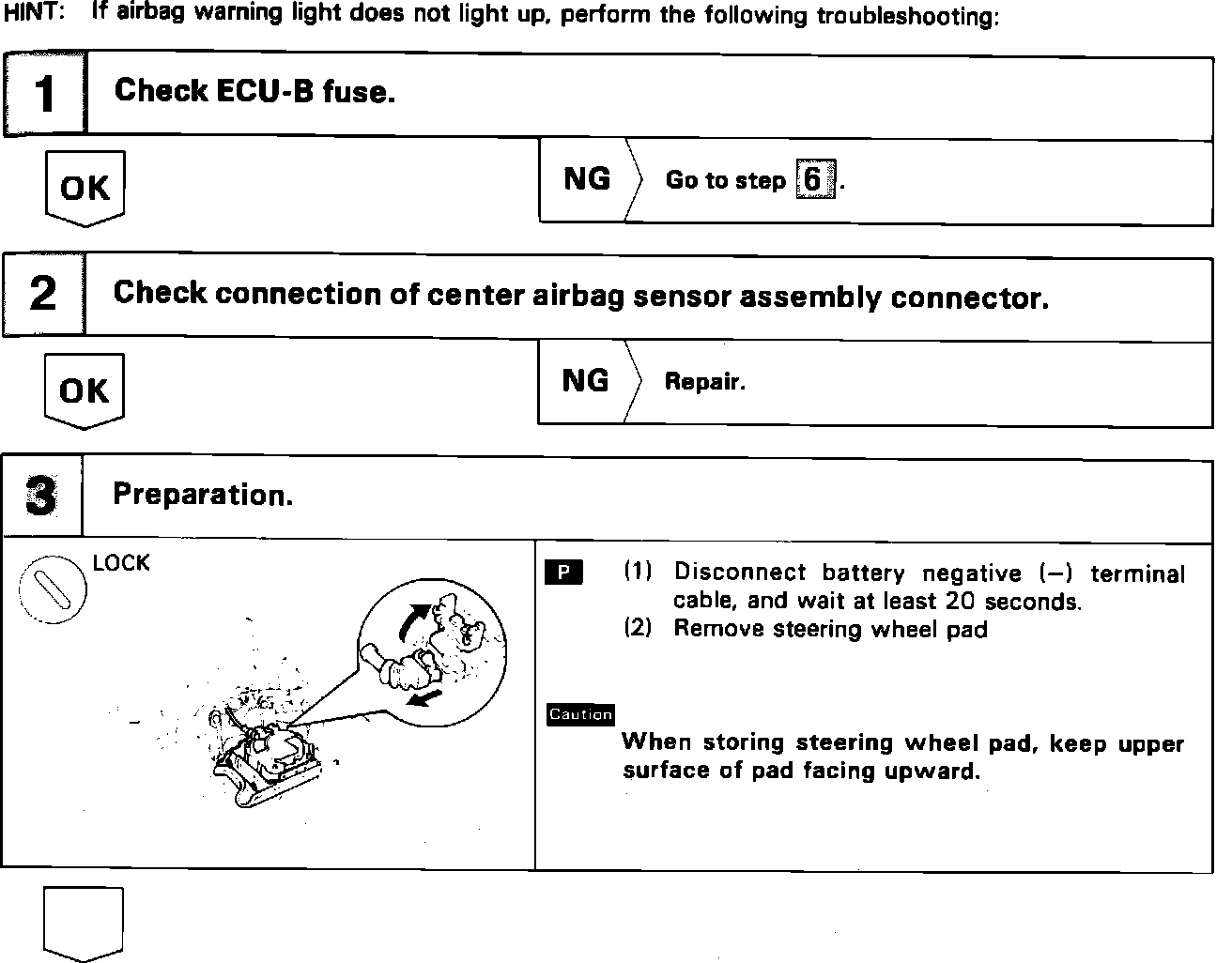

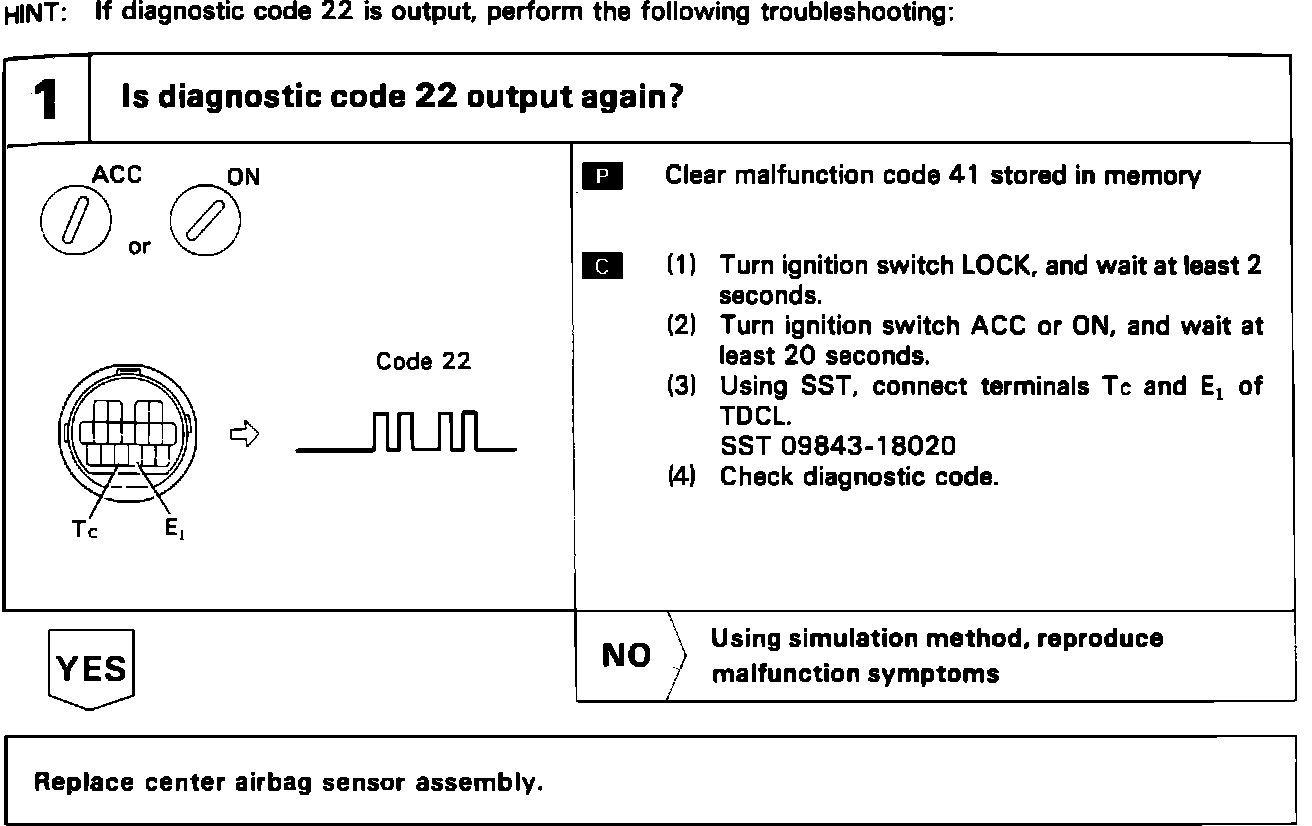

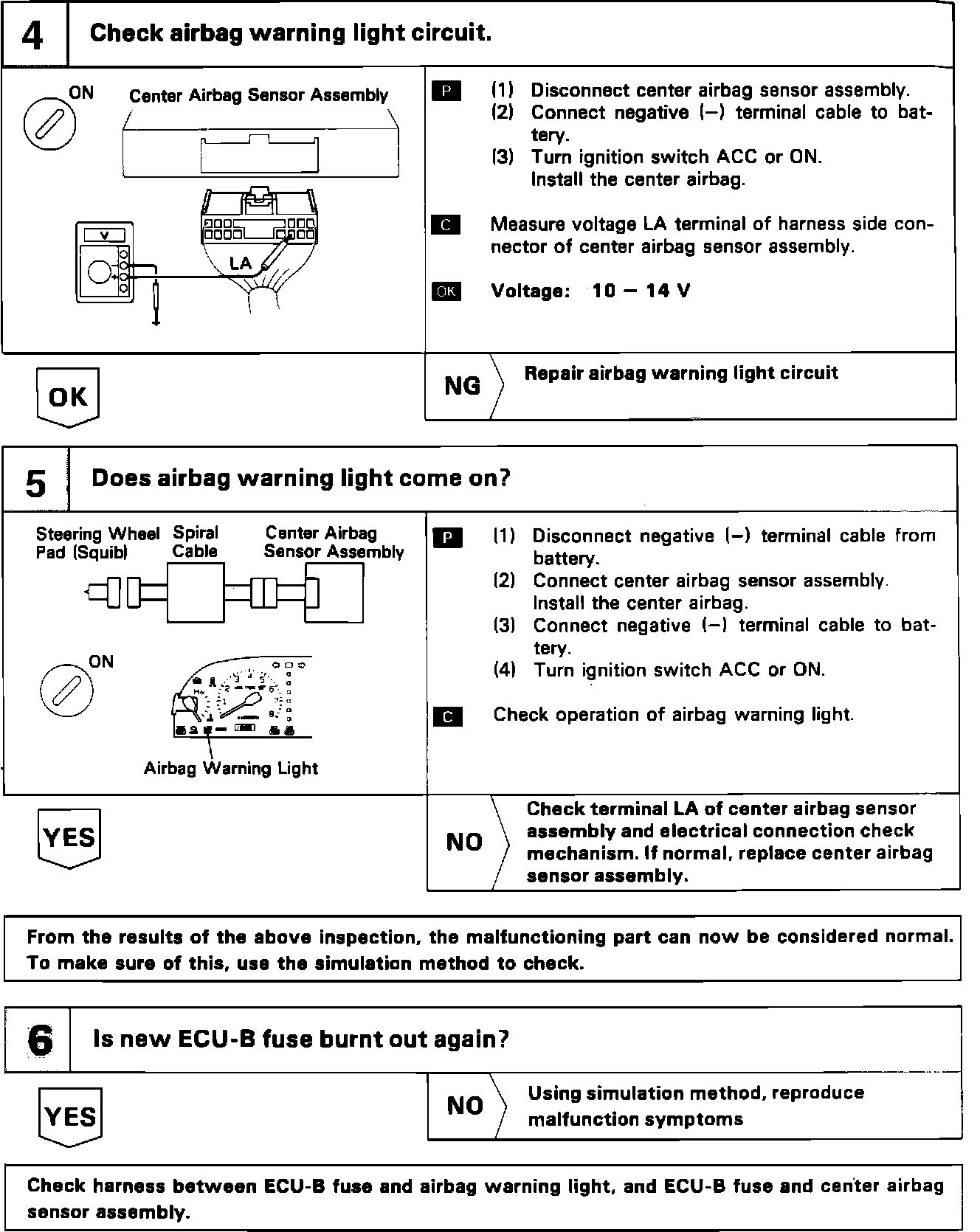

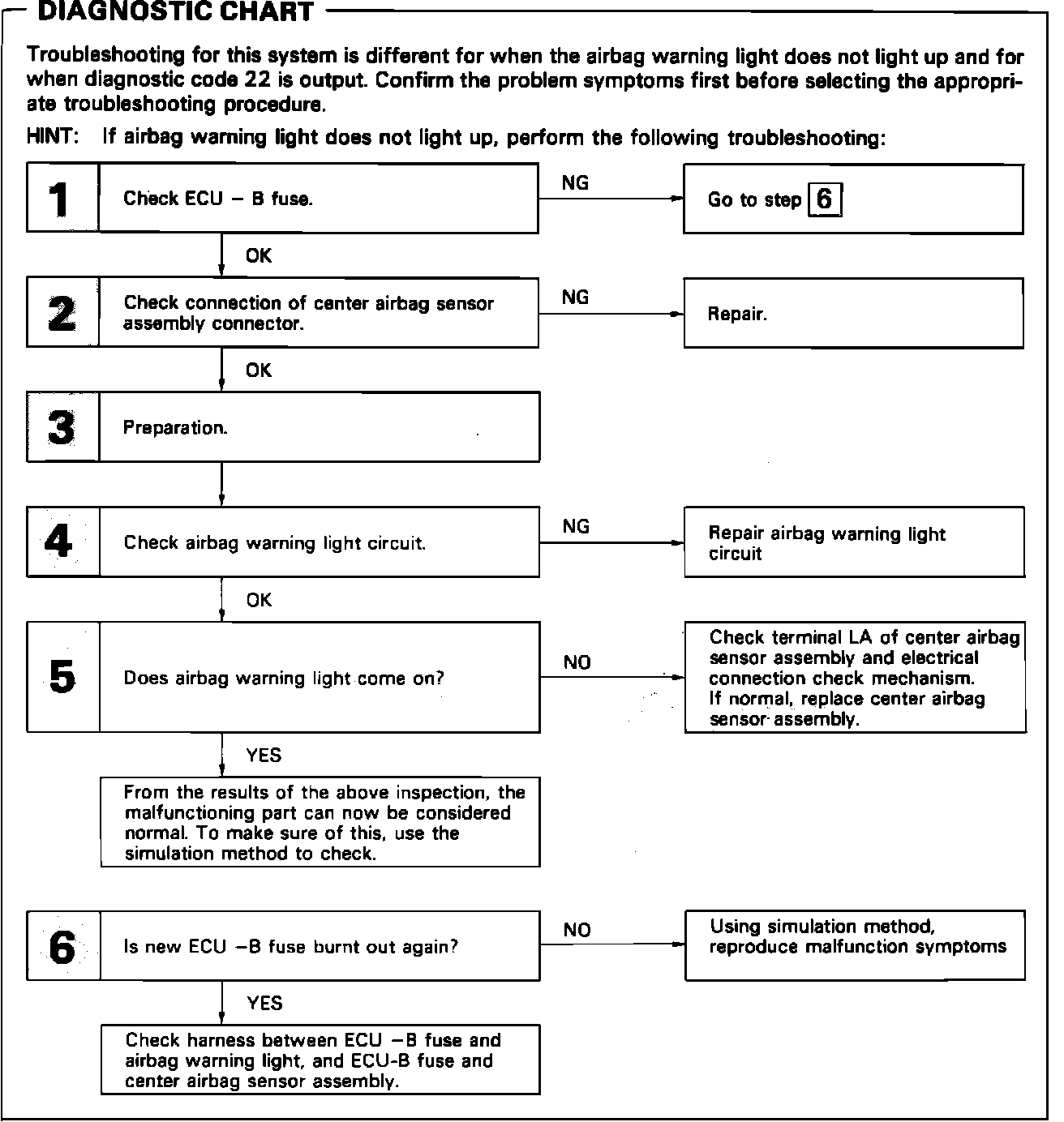

Fig. 27 Code 22 Diagnostics (Part 1 Of 6):

Fig. 27 Code 22 Diagnostics (Part 2 Of 6):

Fig. 27 Code 22 Diagnostics (Part 3 Of 6):

Fig. 27 Code 22 Diagnostics (Part 4 Of 6):

Fig. 27 Code 22 Diagnostics (Part 5 Of 6):

Fig. 27 Code 22 Diagnostics (Part 6 Of 6):

Code 22 is displayed when a malfunction in the airbag warning light has been detected. This code will not reset until that open has been repaired, refer to Fig. 27 for testing.
