DTC 15

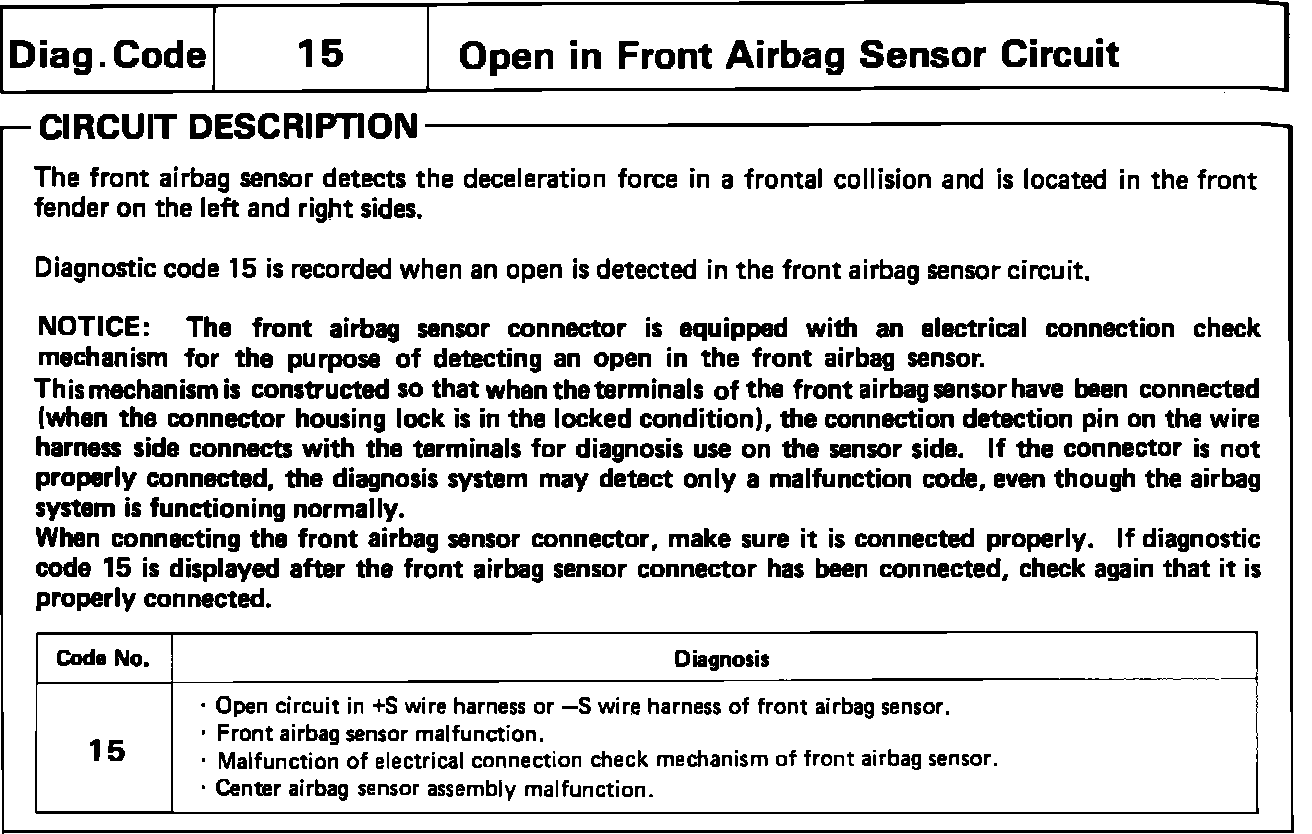

Fig. 25 Code 15 Diagnostics (Part 1 Of 5):

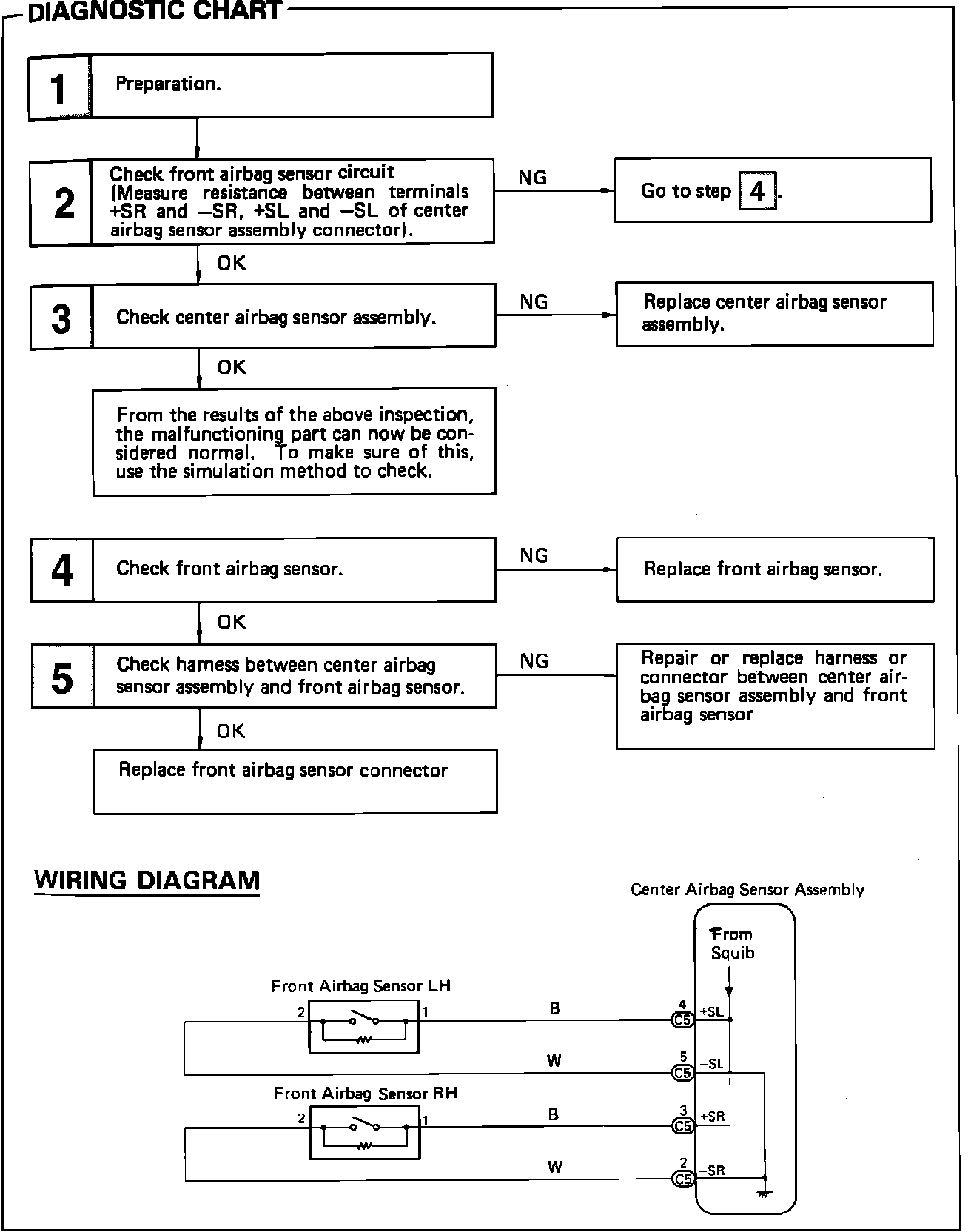

Fig. 25 Code 15 Diagnostics (Part 2 Of 5):

Fig. 25 Code 15 Diagnostics (Part 3 Of 5):

Fig. 25 Code 15 Diagnostics (Part 4 Of 5):

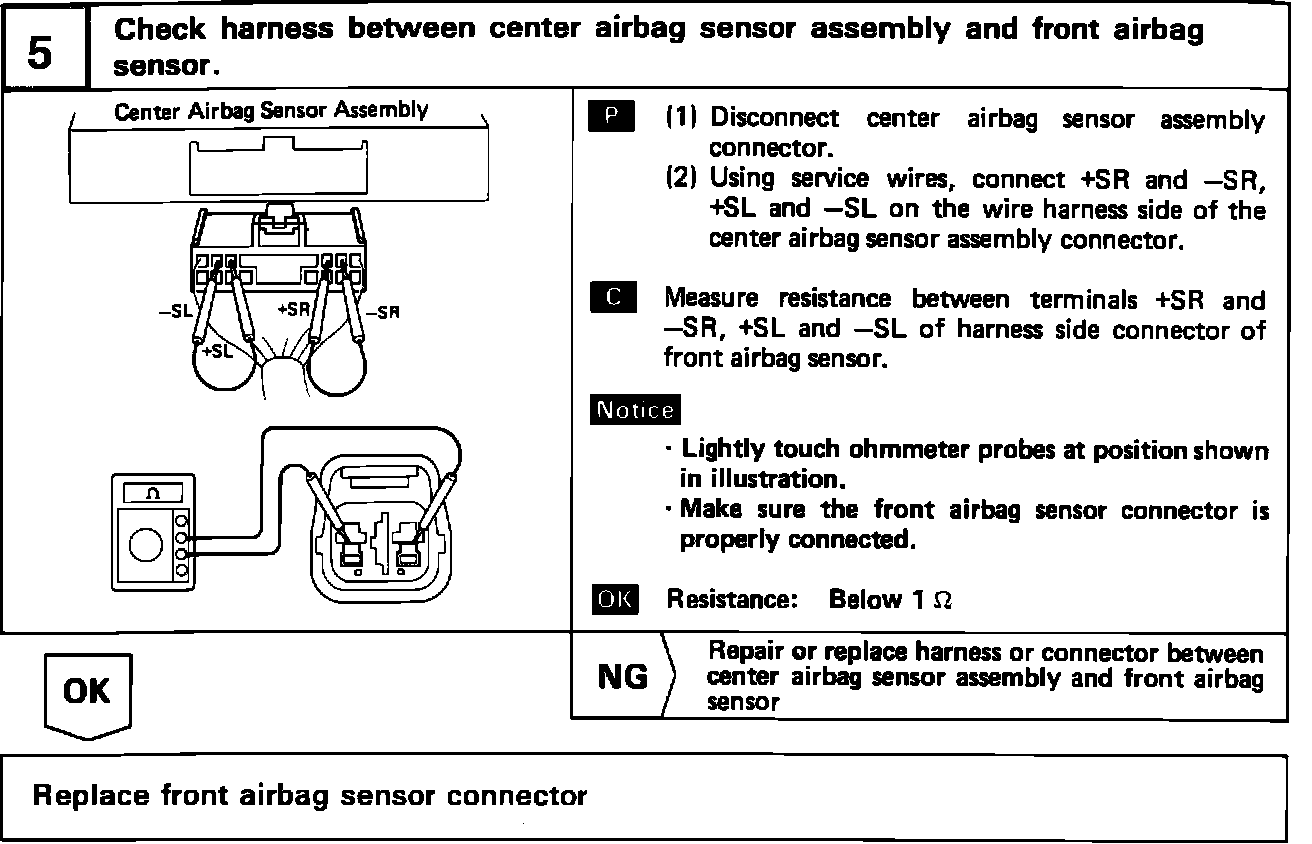

Fig. 25 Code 15 Diagnostics (Part 5 Of 5):

Code 15 is displayed when there is an open in the front airbag sensor circuit. Because of the design of the front sensor connectors, it is important to be sure they are connected properly, or Code 15 will result. Refer to Figs. 25 for testing.
