DTC 14

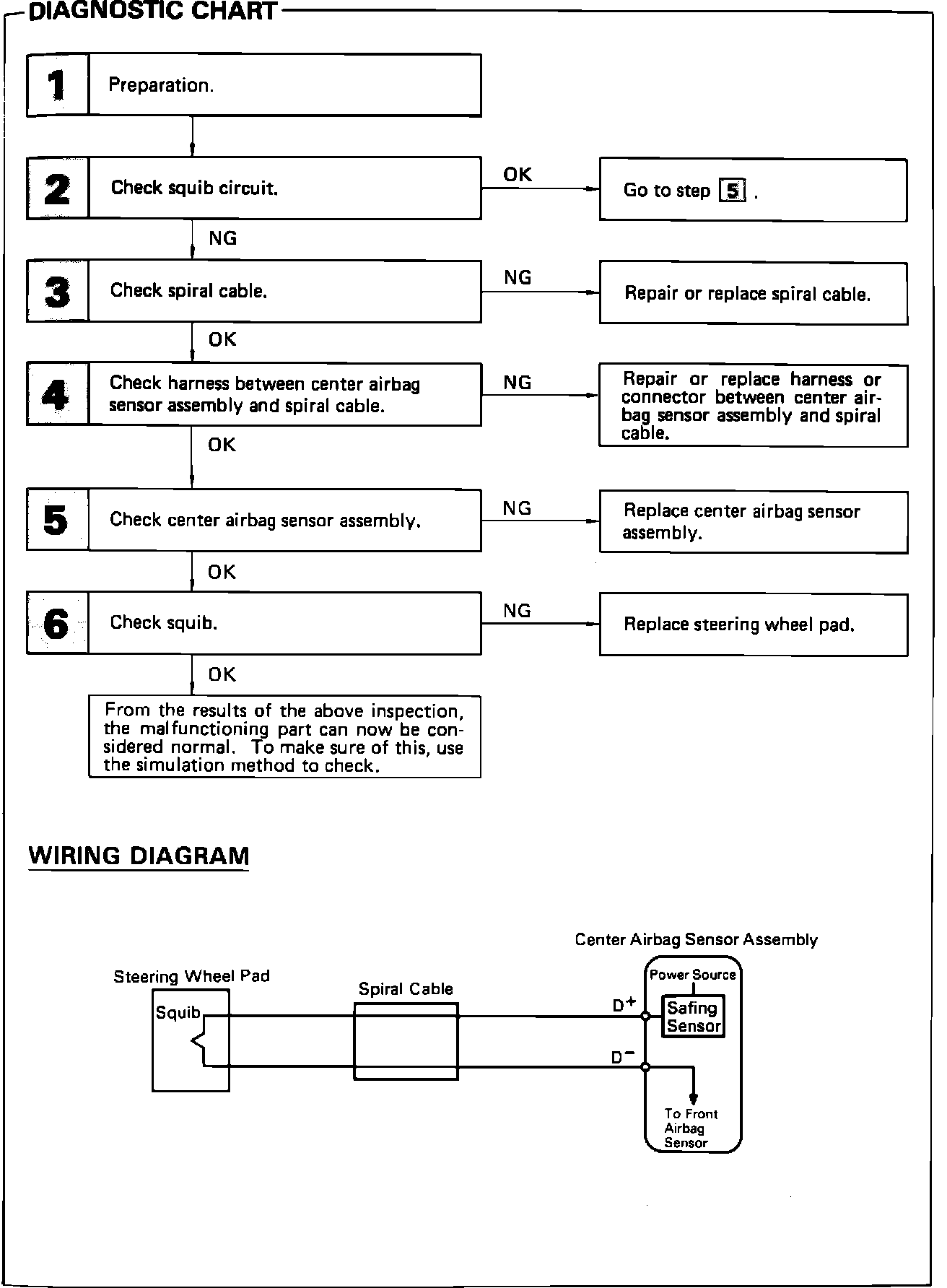

Fig. 23 Code 14 Diagnostics (Part 1 Of 5):

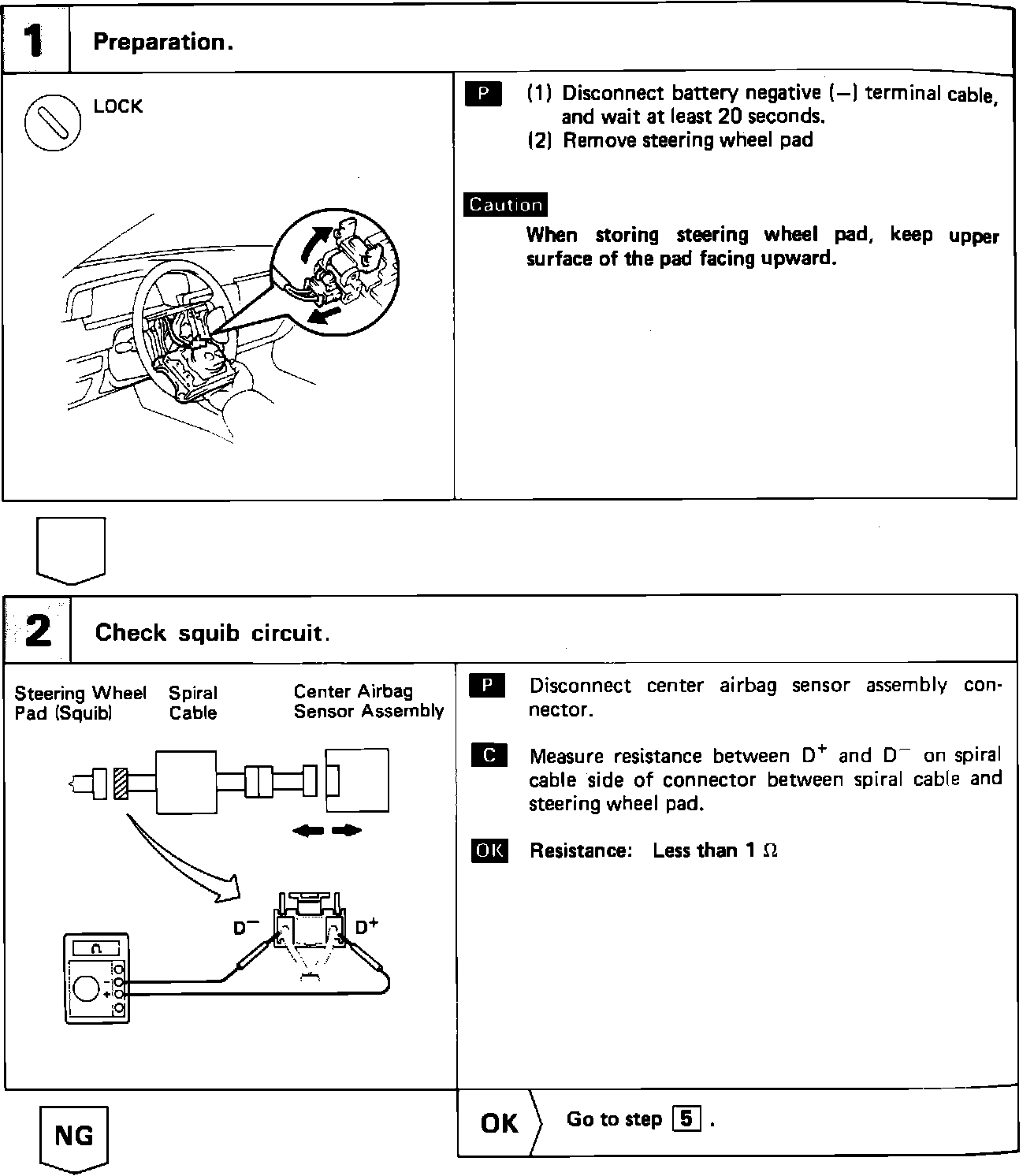

Fig. 23 Code 14 Diagnostics (Part 2 Of 5):

Fig. 23 Code 14 Diagnostics (Part 3 Of 5):

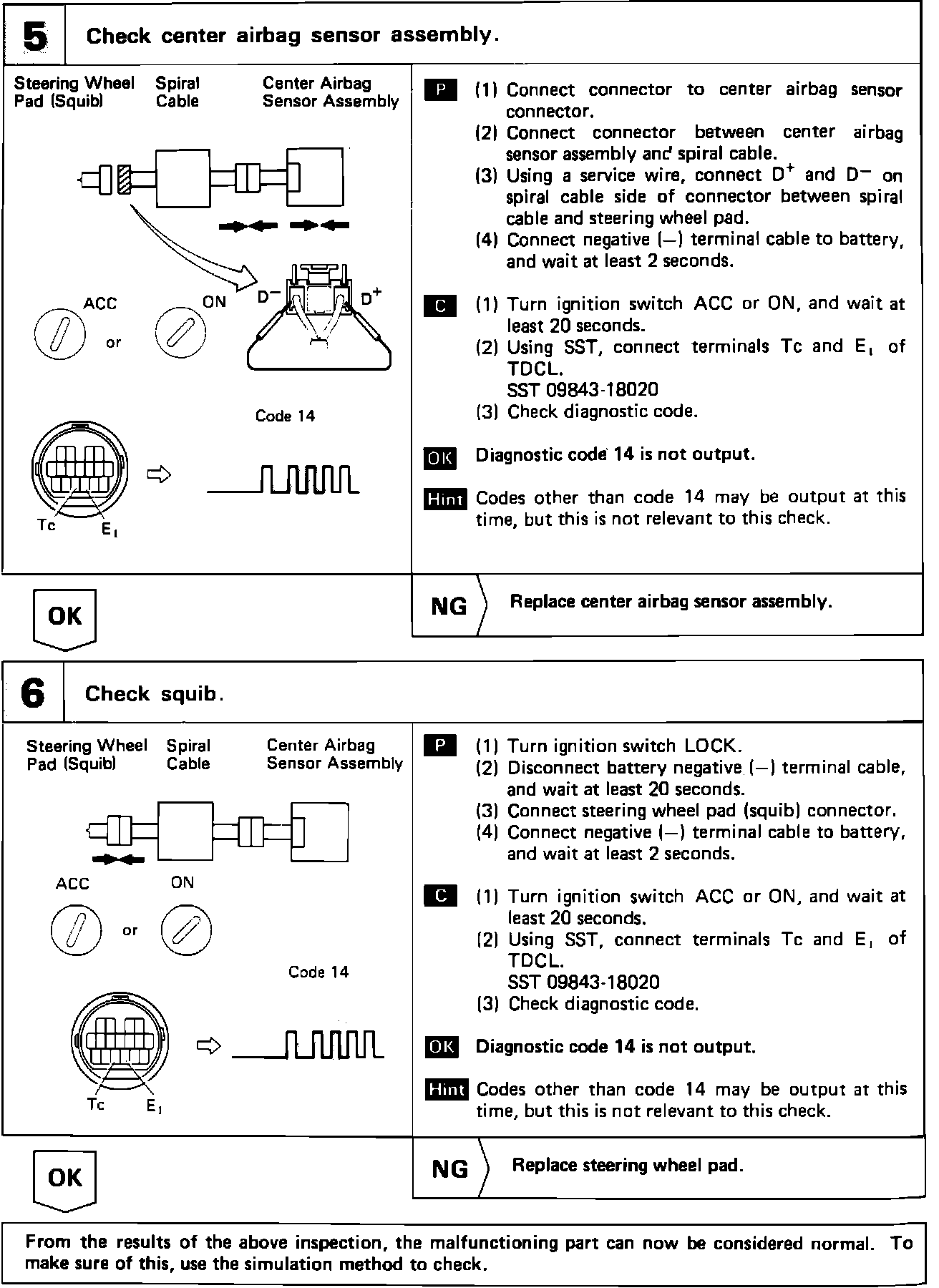

Fig. 23 Code 14 Diagnostics (Part 4 Of 5):

Fig. 23 Code 14 Diagnostics (Part 5 Of 5):

Code 14 is displayed when the squib circuit has an open, refer to Fig. 23. for testing.
