DTC 13

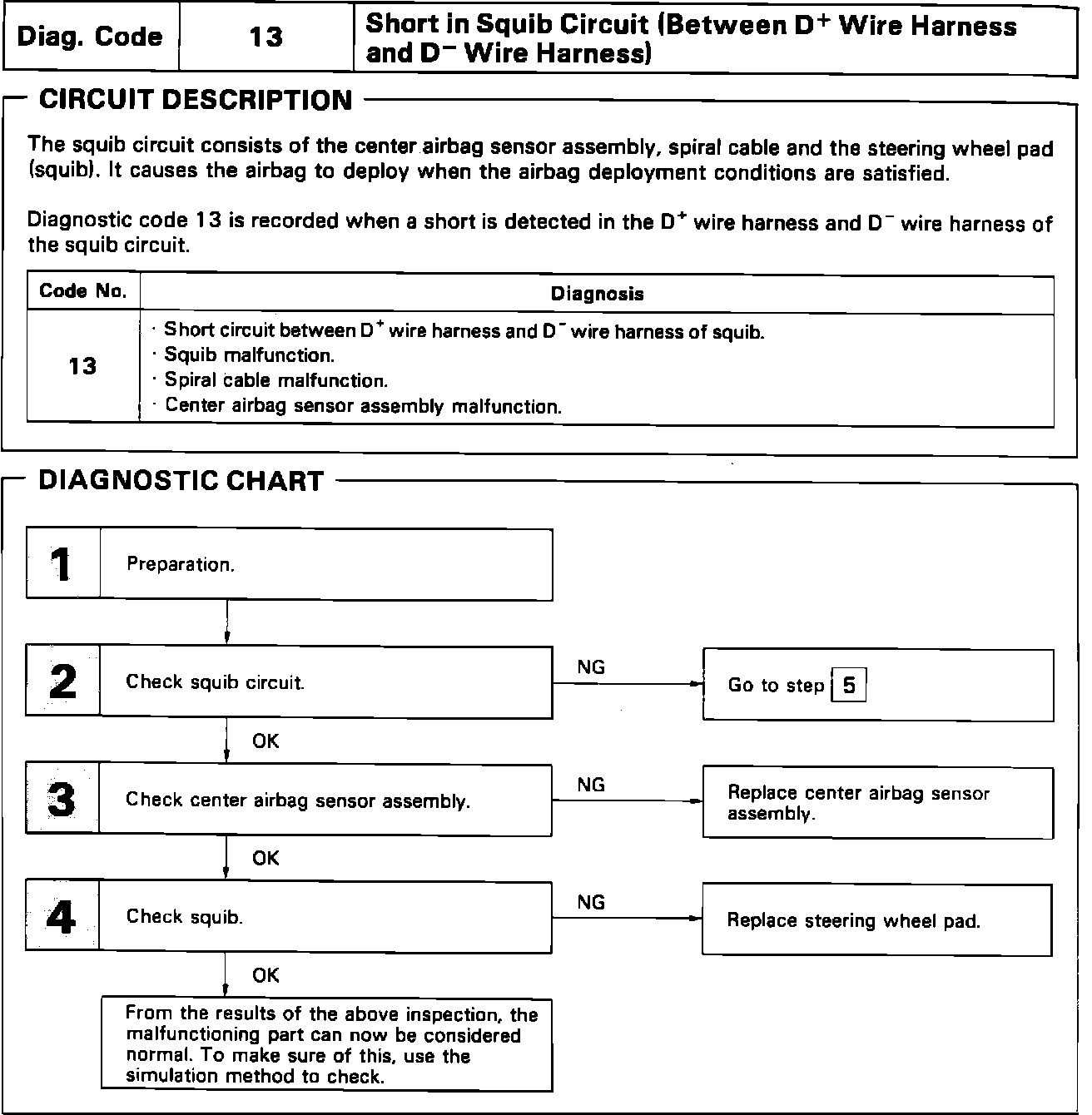

Fig. 22 Code 13 Diagnostics (Part 1 Of 6):

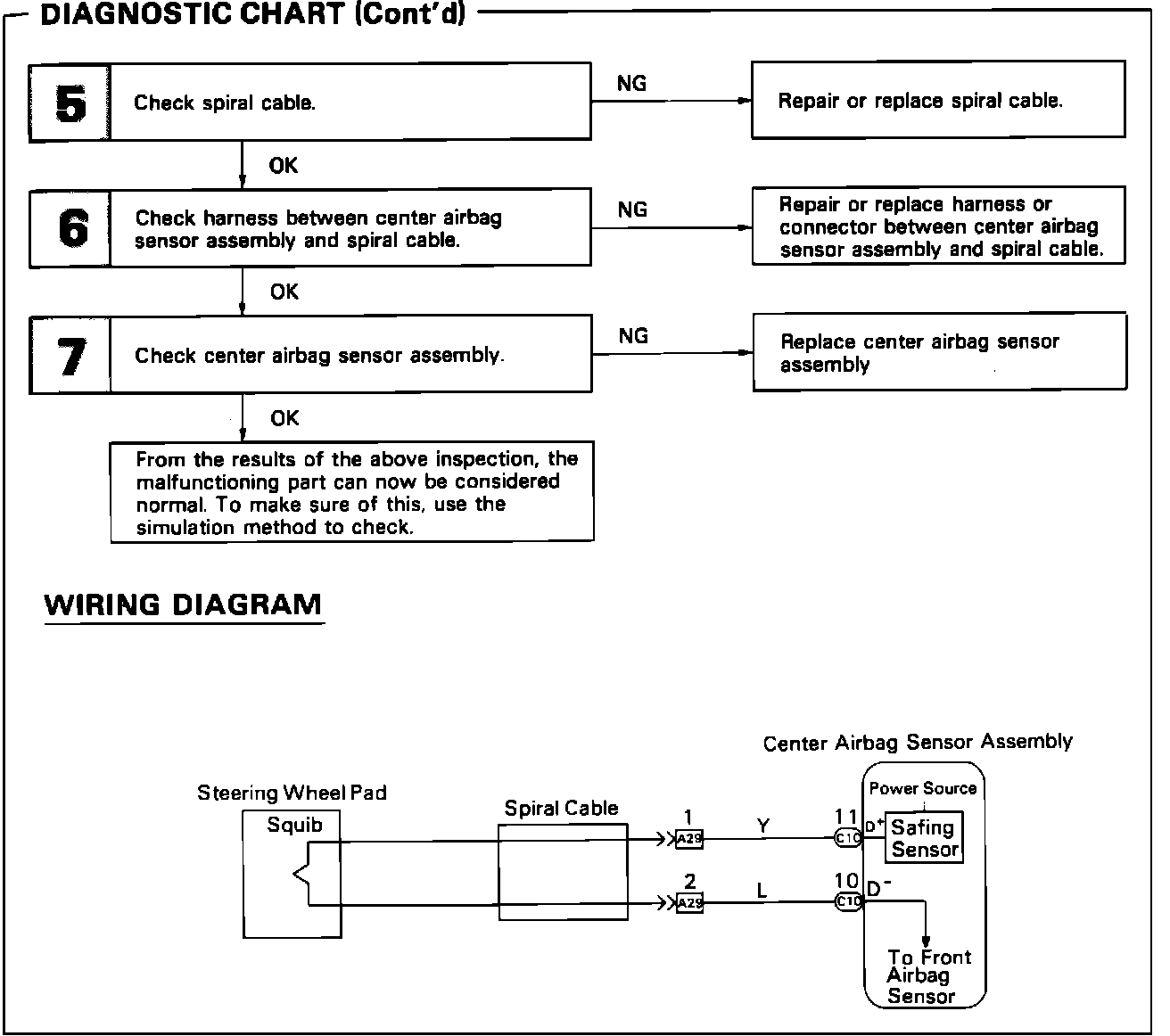

Fig. 22 Code 13 Diagnostics (Part 2 Of 6):

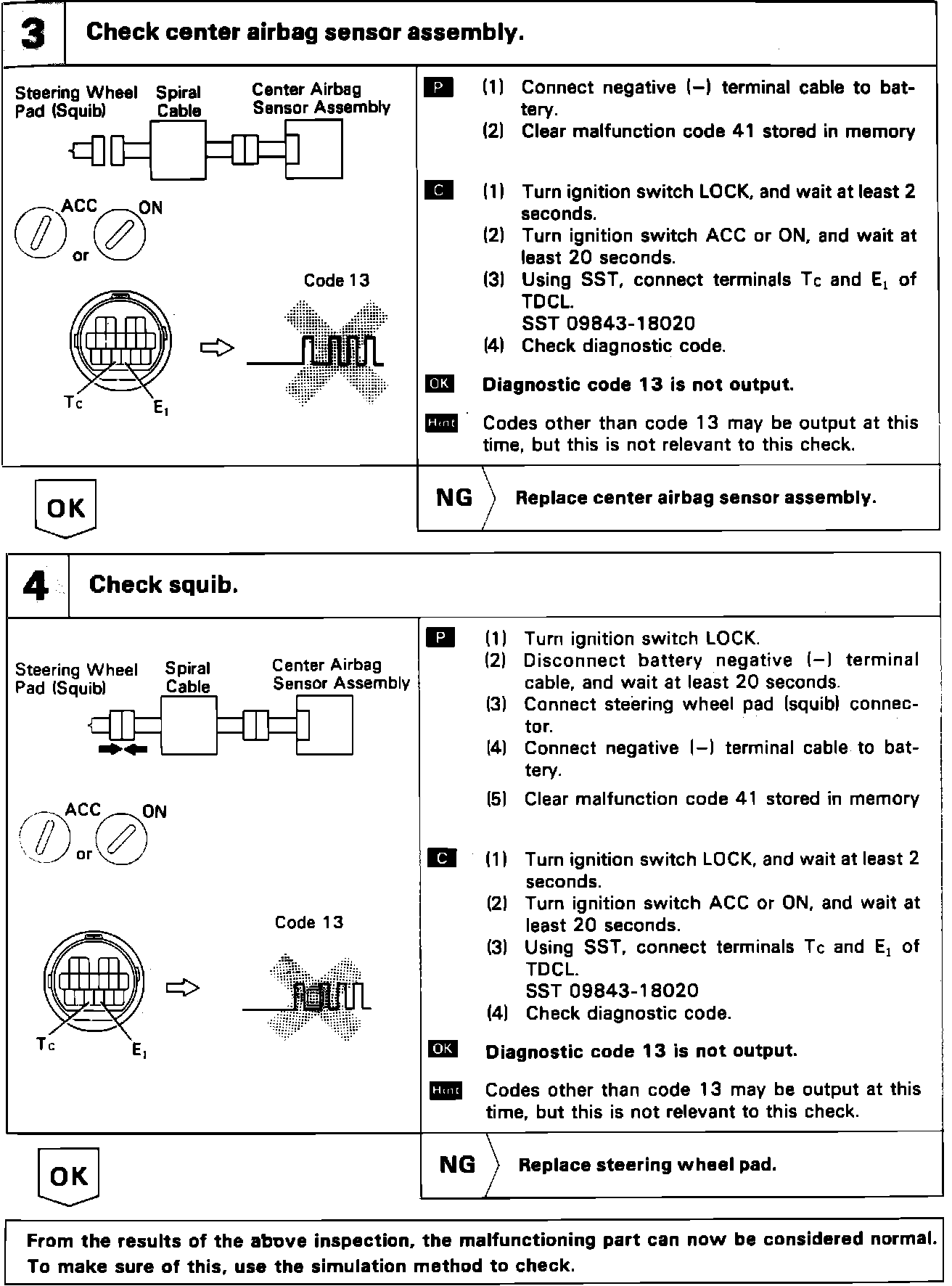

Fig. 22 Code 13 Diagnostics (Part 3 Of 6):

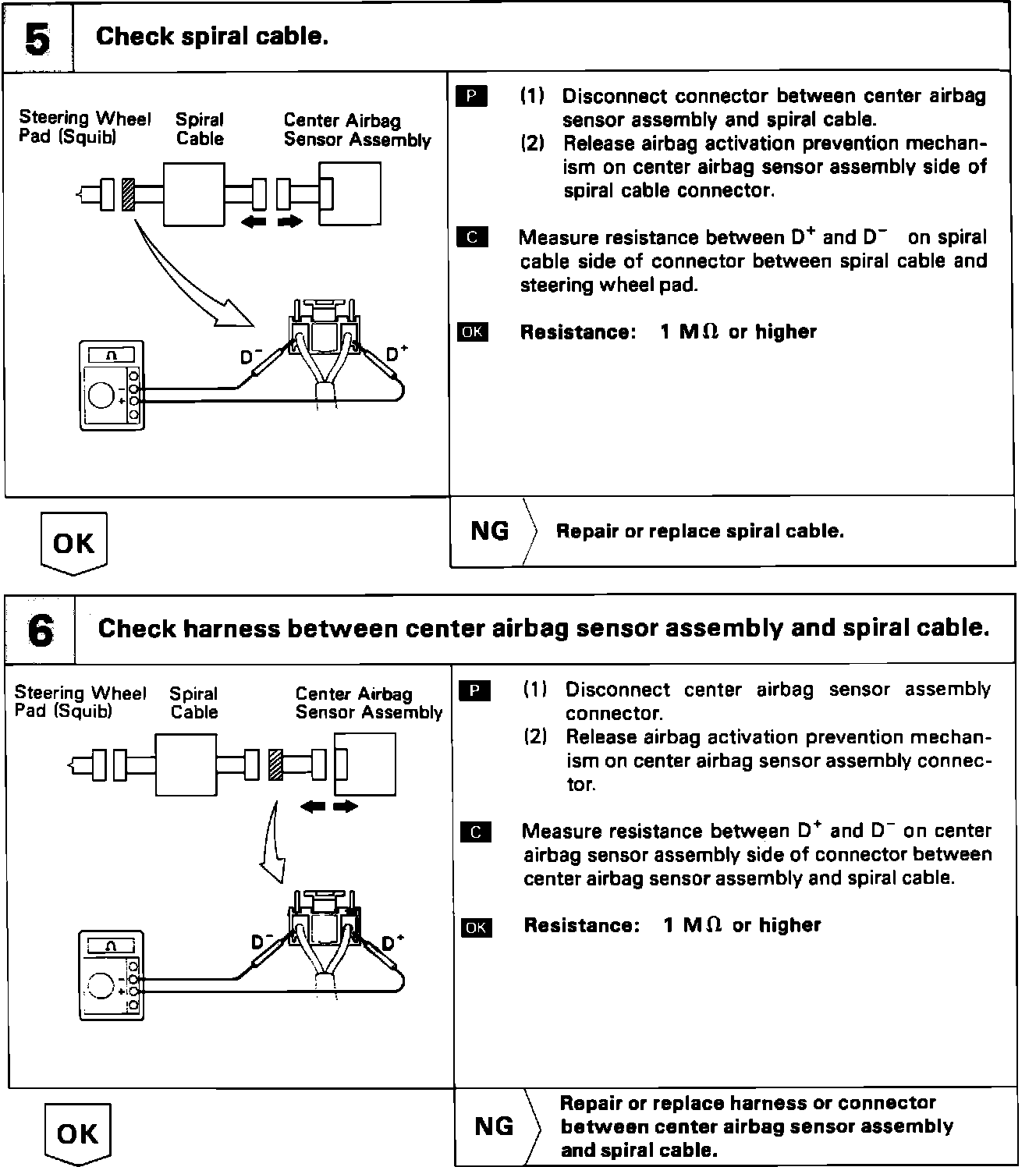

Fig. 22 Code 13 Diagnostics (Part 4 Of 6):

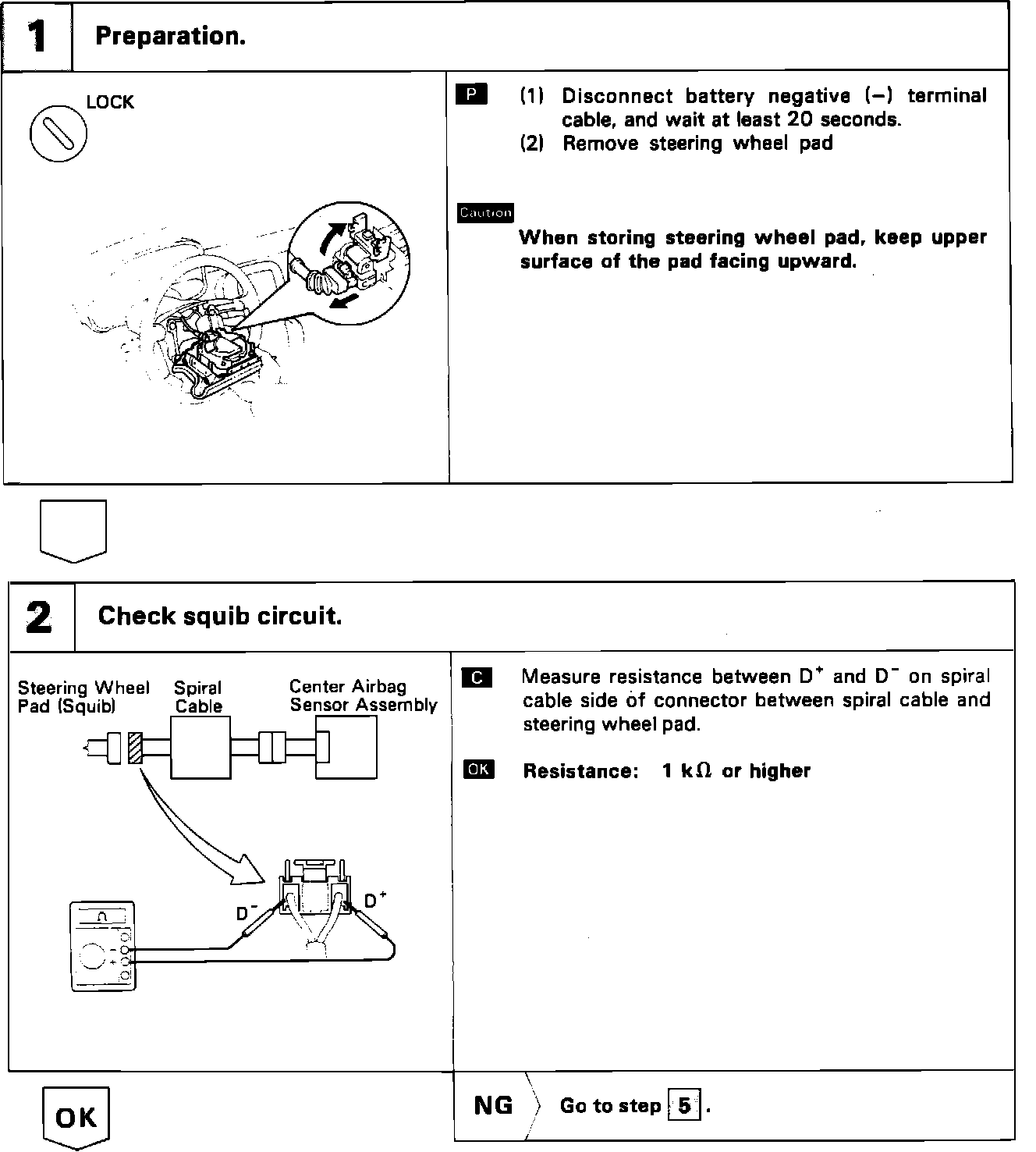

Fig. 22 Code 13 Diagnostics (Part 5 Of 6):

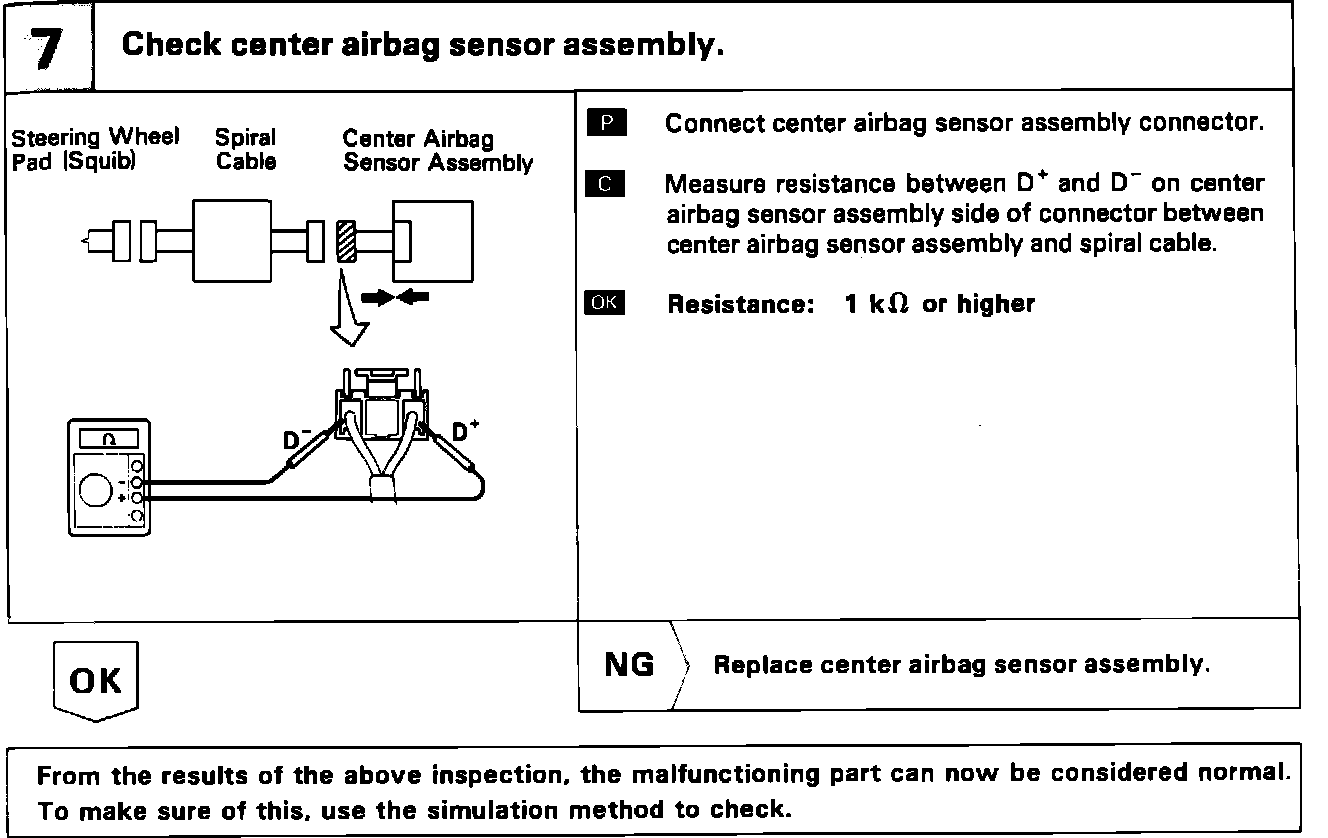

Fig. 22 Code 13 Diagnostics (Part 6 Of 6):

Code 13 is displayed when the squib circuit has a short between the D+ wiring harness and D- wiring harness. Refer to Fig. 22 for testing.
