DTC 11

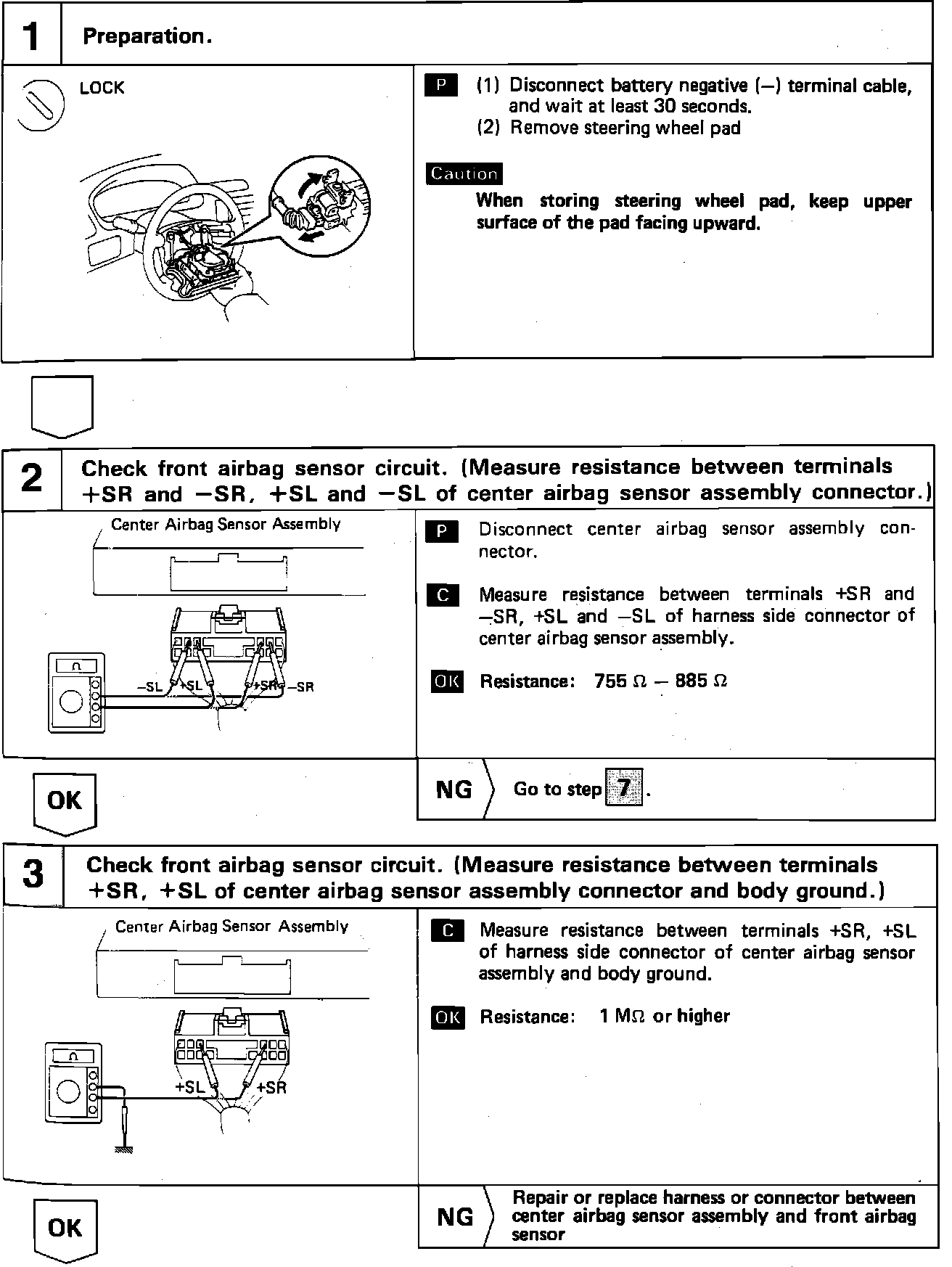

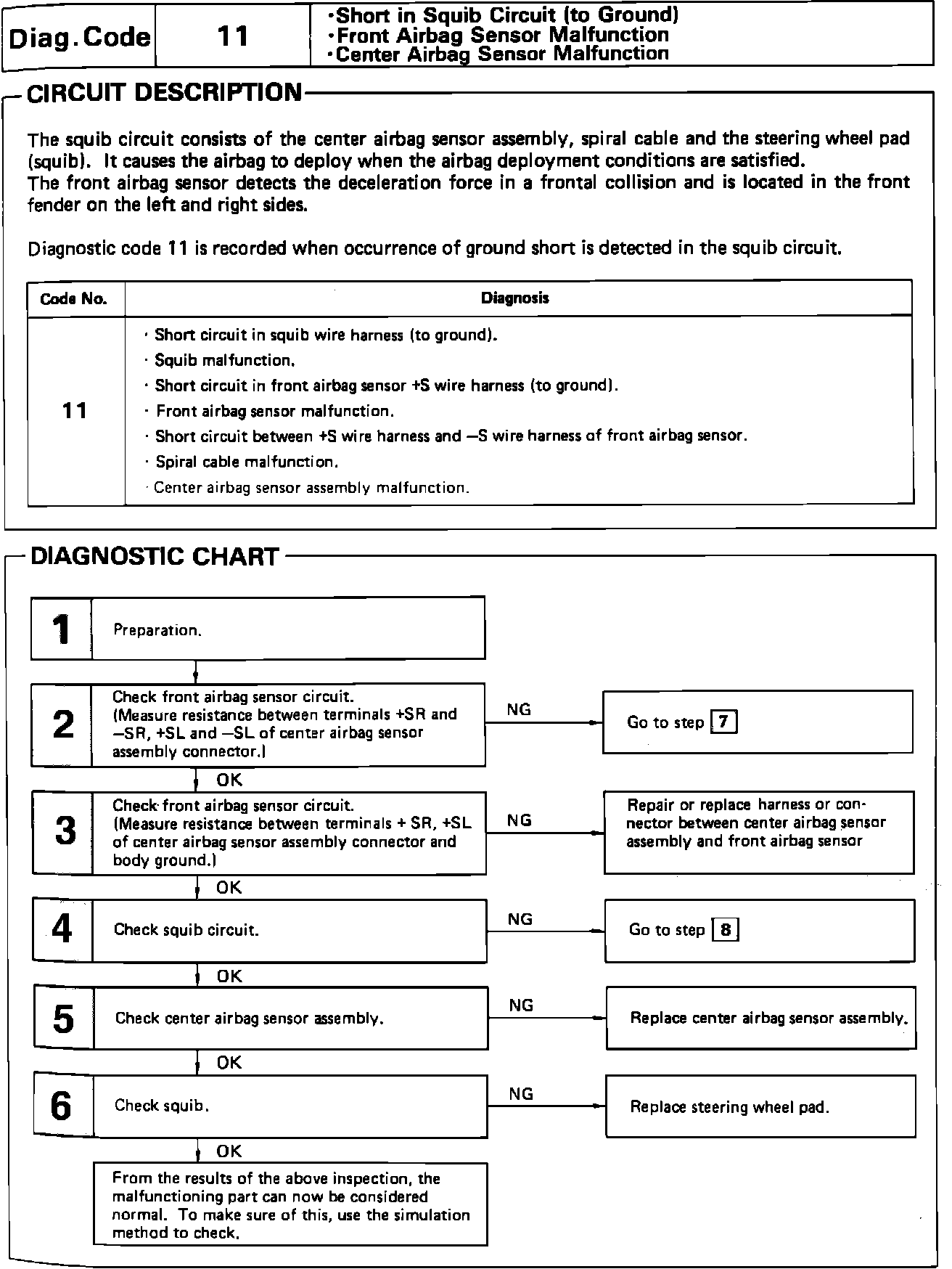

Fig. 17 Code 11 Diagnostics (Part 1 Of 6):

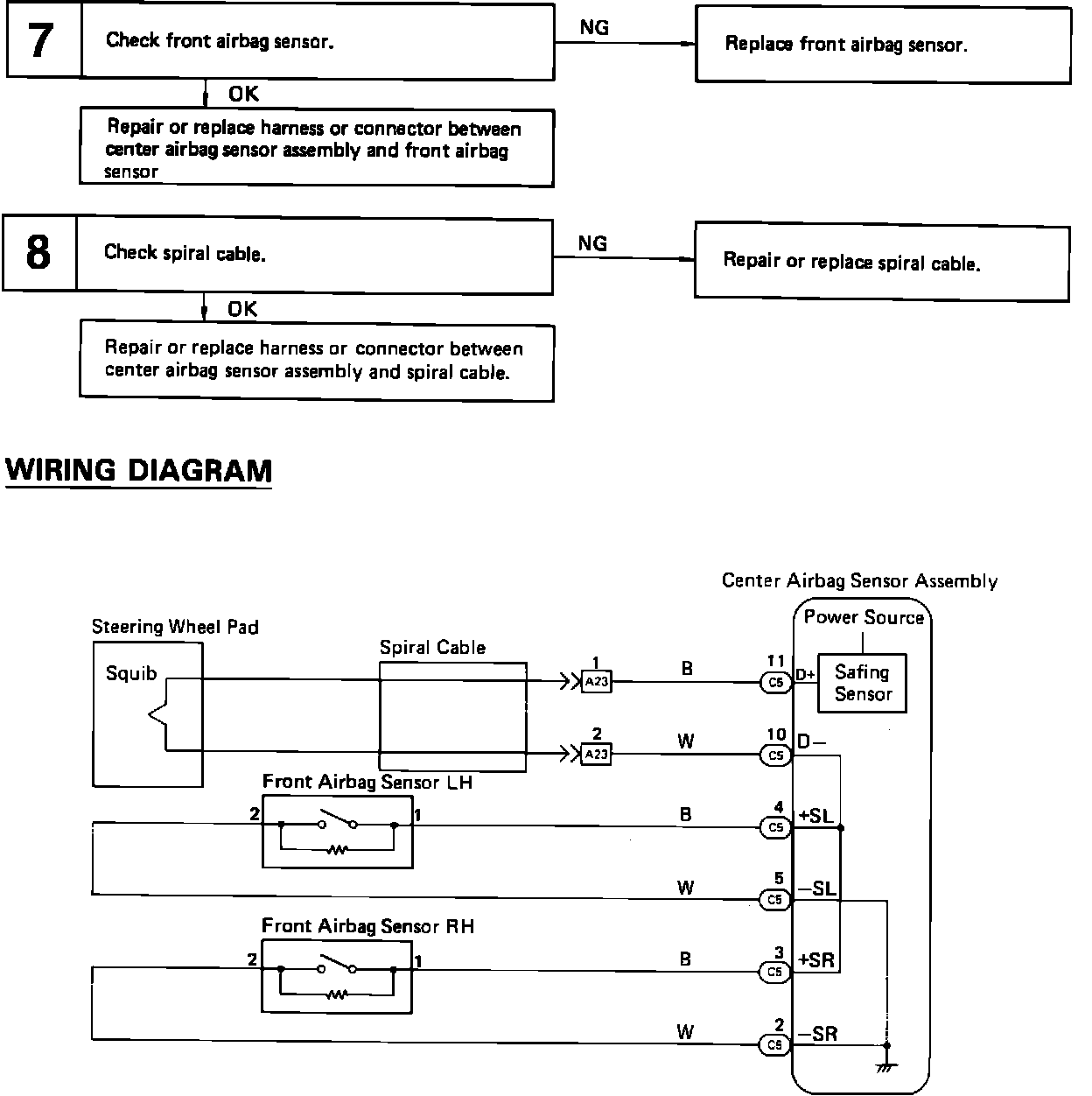

Fig. 17 Code 11 Diagnostics (Part 2 Of 6):

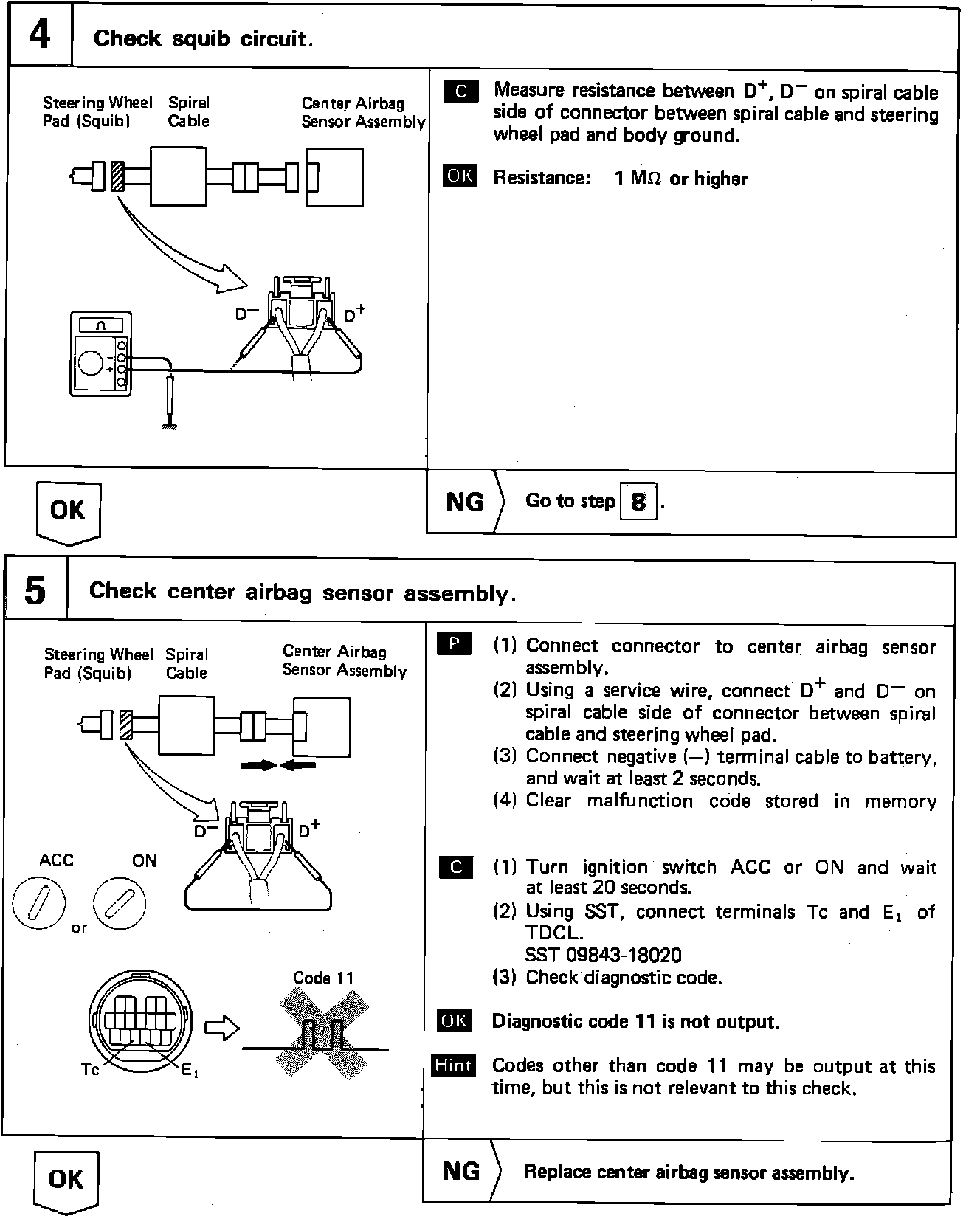

Fig. 17 Code 11 Diagnostics (Part 3 Of 6):

Fig. 17 Code 11 Diagnostics (Part 4 Of 6):

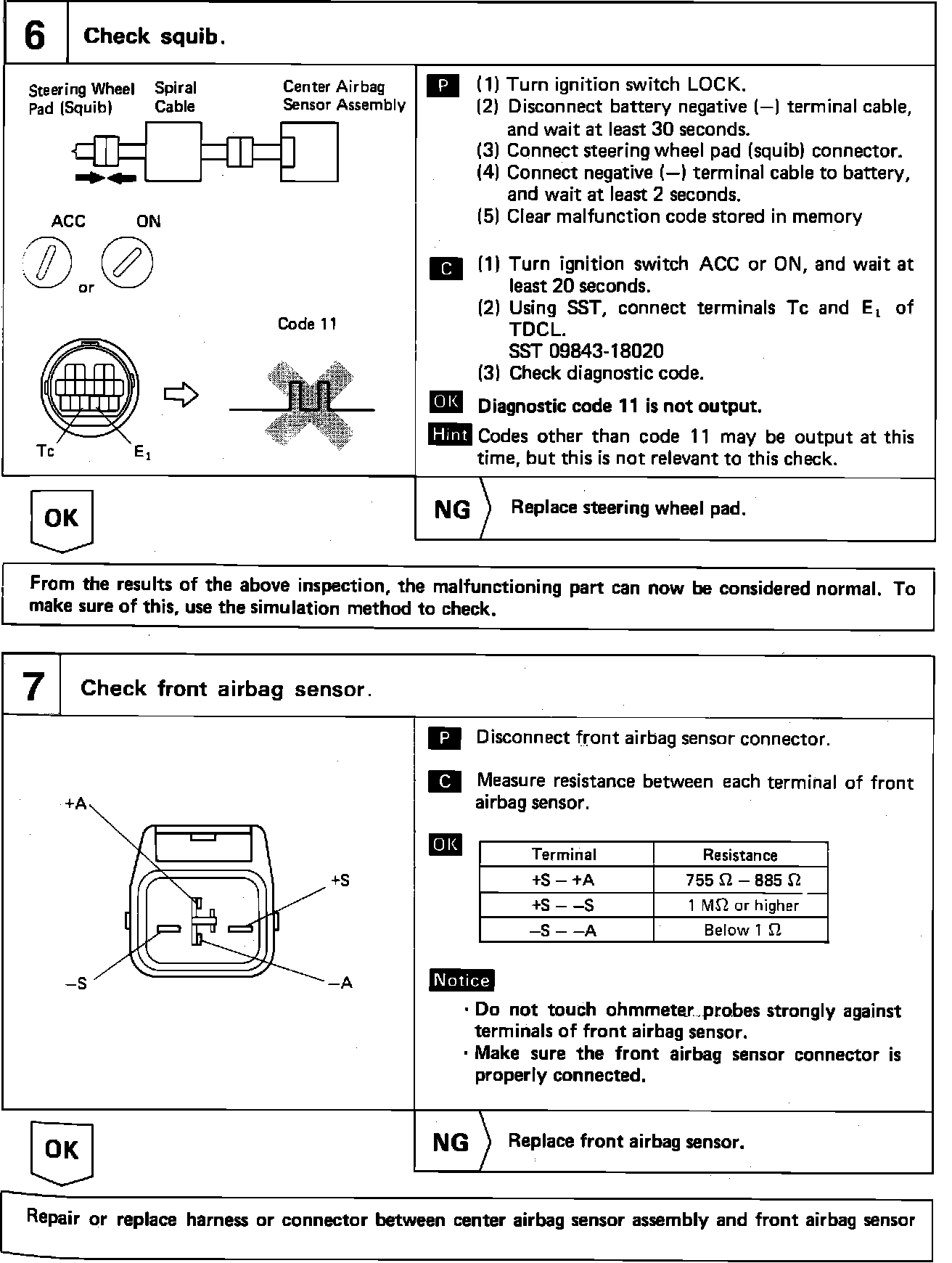

Fig. 17 Code 11 Diagnostics (Part 5 Of 6):

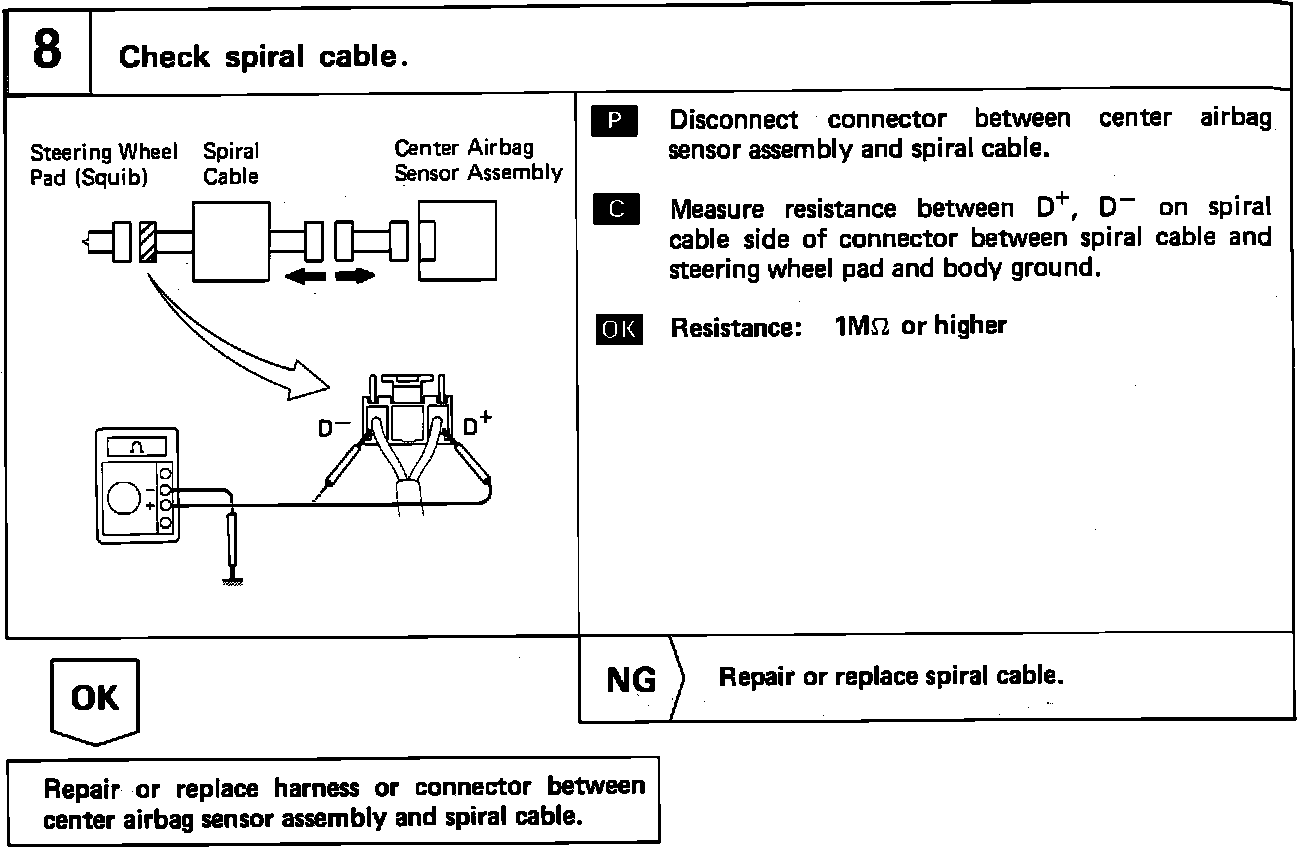

Fig. 17 Code 11 Diagnostics (Part 6 Of 6):

Code 11 is displayed when the system has detected a short to ground in the squib circuit or front airbag sensor circuit. Refer to Fig. 17 diagnostic code 11 diagnosis.
