ABS (Antilock Brake System)

DIganostic COde Chart


If a malfunction code is displayed during the diagnostic code check, check the circuit listed for that code in the table below.

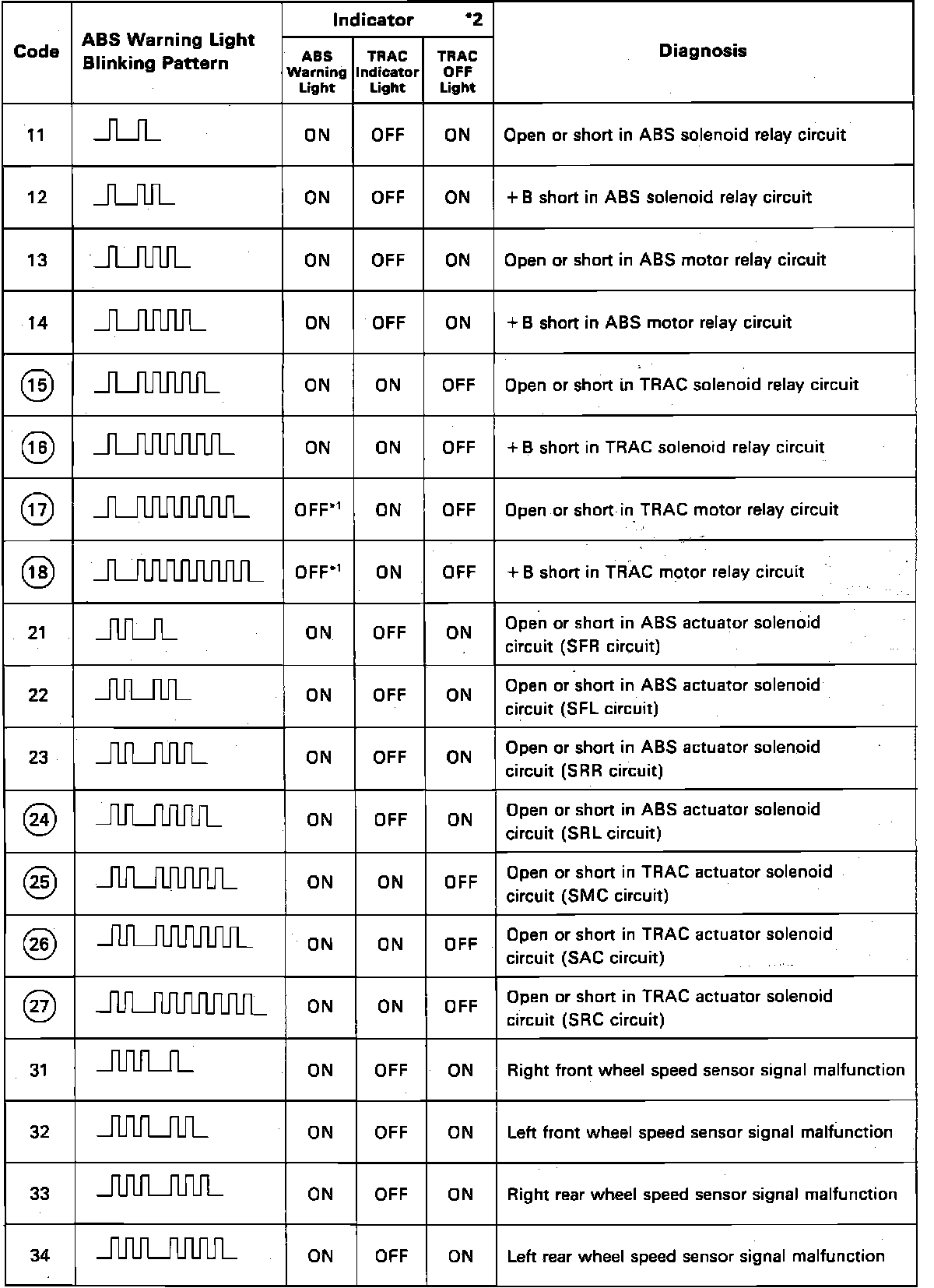

Fig. 17 Fault (trouble) Code Chart (Part 1 Of 2):

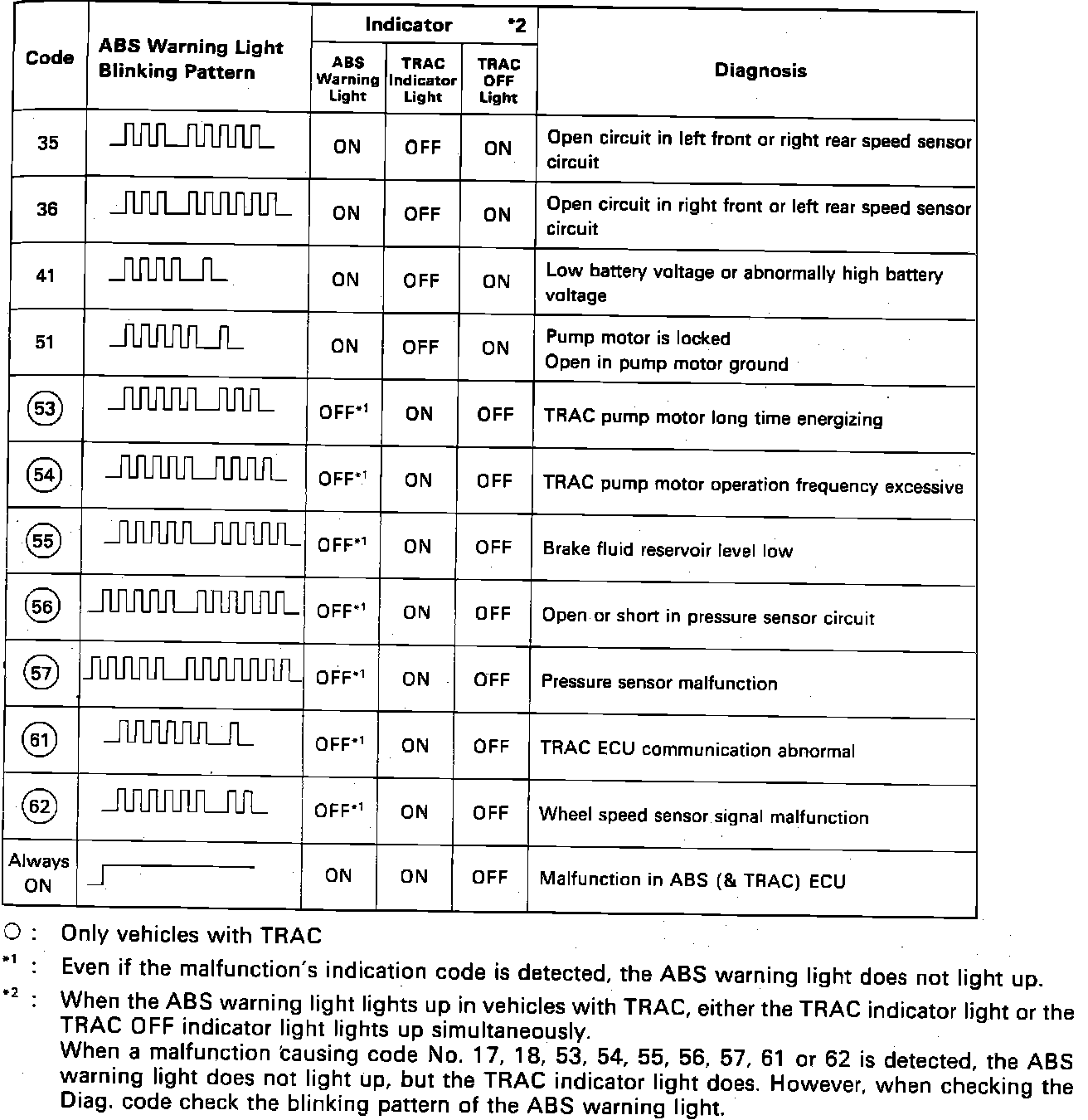

Fig. 17 Fault (trouble) Code Chart (Part 2 Of 2):

See chart notes listed at bottom of part 2 of 2 before proceeding.

Refer to SCHEMATIC DIAGRAMS/ELECTRICAL AND ELECTRONIC DIAGRAMS, for wiring diagrams and connector terminal identification
